Home > Products > Gas Generator > Clean Energy!!20kw gas generator set

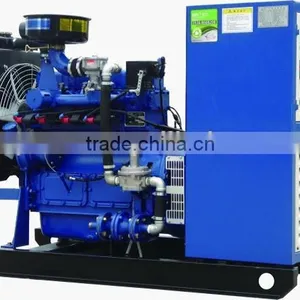

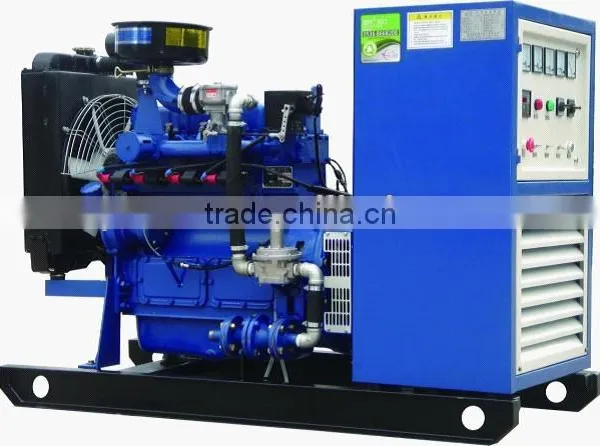

Clean Energy!!20kw gas generator set
- 50 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | U-power | Output Type: | AC Three Phase |
Speed: | 1500r/min | Frequency: | 50Hz/60Hz | Rated Power: | 20kw/25kva |
Rated Voltage: | 230/400V | Rated Current: | 36A |
Product Description
Specifications
1.the genetator can use CNG,Biogas2.the voltage is 230v/400v
3.the start is electrical.
4.the product is ISO,CE,TUV.
Main Technical Parameters of 20kw
Genset | |
Model | UPQ20 |
Rated power (KW/KVA) | 20kw/25kva |
Rated current (A) | 36 |
Rated voltage (V) | 400/230 |
Rated frequency (HZ) | 50/60 |
Rated speed(r/min) | 1500/1800 |
Phases arrangement | 3Phase 4Wire |
Excitation method | Brushless |
Voltage regulation | AVR(Automatic Voltage Regulation) |
Gas Engine | |
Type | four stroke, ECU control high energy spark plug ignition, water cooled |
Cylinder No. and layout | 4, in line |
Rated speed (r/min) | 1500/1800 |
Aspirated mode | Natural or turbo charge intercooled |
Speed regulation mode | Electronic governor |
Starting method | DC 24V Electrical starting |
Cooling method | Closed water cooling cycle |
Lubrication method | Pressure and splash lubricating |
Fuel consumption(Nm3/kw.h) | 0.6 (biogas), 0.3(natural gas) |
Alternator | |
Brand | Stamford or Marathon or Chinese brand |
Type | Pure copper brushless |
Insulation class | H |
Protection class | IP22 |
Control Panel | |
Functions : 1. Adopt Gen-set controller with LCD display, taking microprocessor as the core. 2. Adopt ATS( automatic transfer switch) toachieve the automatic transfer from the generated electricity to grid electricity 3. The monitor and display on the voltage, current, frequency, active/apparent power, power factor of the generated electricity /grid electricity etc. 4. The monitor and display on the gen-set’s water temperature, oil pressure, rotational speed, battery voltage, running hours, accumulative total power and number of starts 5. Protection alarm and fault automatic storage on high water temperature, low oil pressure, double speeding, over current, over voltage, over frequency and phase failure etc. |
