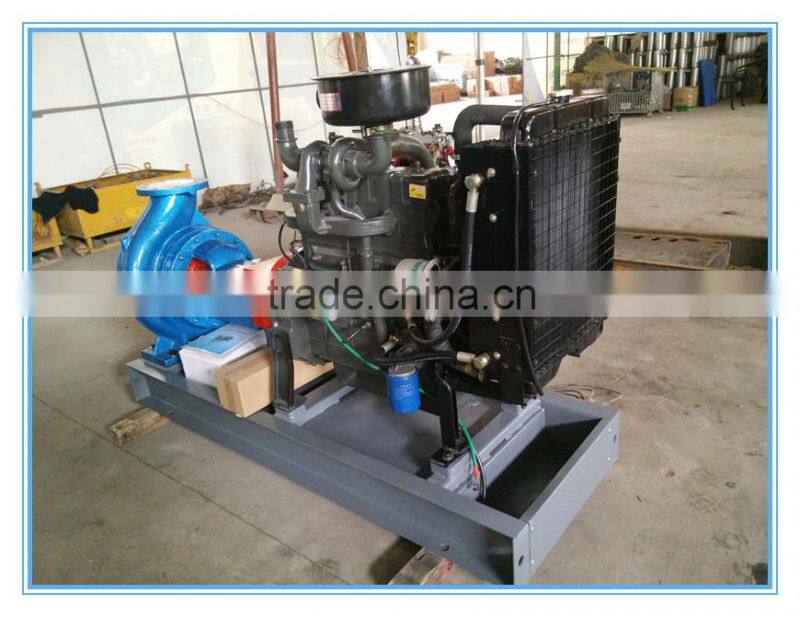

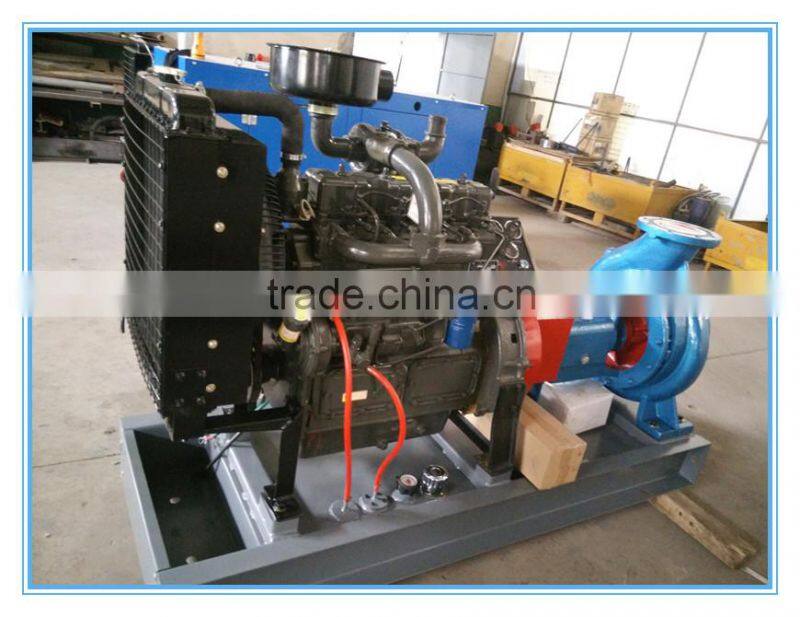

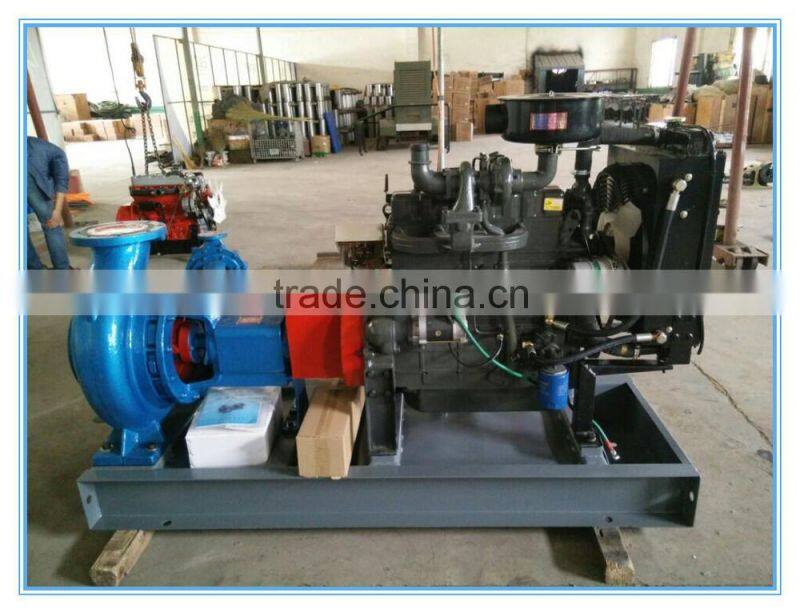

Large outflow high lift Diesel water pump set
Diesel water pump set model list
UPC-sh series diesel water pump | |||||||
Pump model | Outflow | Head lift | Suction | Engine model | Power/speed | ||
10sh-6 | 486 | 65.1 | 5.5 | R6105IZLD | 132/1500 | ||
10sh-6A | 468 | 54 | 5.5 | R6105AZLD | 110/1500 | ||
10sh-9 | 486 | 38.5 | 5.5 | R6105ZD | 84/1500 | ||
10sh-9A | 468 | 30.5 | 5.5 | R4105ZD | 56/1500 | ||
10sh-13 | 486 | 23.5 | 5.5 | R4105D | 43/1500 | ||
14sh-28 | 1260 | 16.2 | 3 | R6105ZD | 84/1500 | ||
14sh-28A | 1044 | 13.4 | 3 | R4015AZD | 63/1500 | ||
UPC-HW series diesel water pump | |||||||
200HW-12S | 270 | 13.5 | 5.5 | YSD490G | 21/1500 | ||
360 | 12.5 | ||||||
432 | 10.8 | ||||||
UPC-IS series diesel water pump | |||||||
125-80-400 | 48 | 53 | 6.5 | 495D | 26.5/1500 | ||
80 | 50 | ||||||
96 | 46 | ||||||
150-125-250 | 120 | 34 | 6 | K4100D | 30.1/1500 | ||
200 | 32 | ||||||
240 | 29 | ||||||
200-150-315 | 240 | 37 | 5.5 | R4105ZD | 56/1500 | ||
400 | 32 | ||||||
460 | 28.5 | ||||||
Diesel water pump set
Diesel Water Pump set Specifications | |
Water pump | |
Pump model | IS/SH/HW series water pump,etc |
outflow(m3/h) | 30-10000 |
head lift (m) | 1000-7 |
suction lift height(m) | 2-9 |
inlet diameter(mm) | 50-800 |
outlet diameter(mm) | 50-700 |
rated speed(r/min) | 1450/1480/2900/2950 |
Diesel engine | |
Engine brand | Weifang Ricardo series,WEICAHI,Deutz,Cummins,etc or as your require |
Engine model | famous brand |
rated power(KW) | 10-1200 |
rated speed(r/min) | 1500/3000 |
cylinder number | 2/4/6/8/12 |
starting method | electric |
cooling method | water cooled |
speed mode | mechanical(electric optional) |
control panel | display: water&oil temperature,oil pressure,speed |
Standard equipments | |
diesel engine: 1 set | common base:1 set |
water pump: 1 set | shelf of storage battery |
Optional equipments | |
Installation of electronic speed | Four electromagnets shutdown protection |
Diesel Monitor | Control cabinet |
common base with 8hrs fuel tank | Low Noise Speaker |
weather-proof canopy | Trailer with fuel tanks, four battery holder, hand brake |
10 Big Advantages of diesel water pump set
2.Complete protection system can output sound and light alarms and automatic parking, effective protection of plant operation
3.With float function automatically for battery charging, effective protection unit successfully launched
5.Products with low fuel consumption, the first emission, low noise, environment and other characteristics applicability
6.Highly automated, optional automation, since switching configurations, simplifying manual operation
7.Oversized chassis fuel tank to extend the time interval
9.Unit technologically advanced, reliable and efficient performance, extended maintenance intervals
10.Easy operation, suitable for emergency power, with 25km / h low and 80km / h speed two kinds of trailers.
Diesel water pump set
Water pump:
1. Famous brand:Luyuan,NANFANG,etc
2.Housing, impeller made ??of high quality steel and other materials, coated with anti-rust paint quality, aesthetics, good corrosion resistance
3.Can be used for irrigation, drainage, fire protection, dredging, mining, construction, etc.
Diesel engine:
1.Selection Weichai, Cummins, Deutz,etc.Famous brands engine
2.Low fuel consumption, low emissions, low noise
3.Overseas 243 special service stations, providing high-quality, efficient service
Control system:
1.Automatic power shutdown, data measurement, alarm protection and 'three remote' feature
2.Large-screen liquid crystal (LCD) multi-language graphical display
3.Function can be realized by the governor pressure stabilization
Couplings:
1.High-strength elastic coupling, can deliver high torque
2.Damping, high damping performance, reduce the failure rate
3.Easy maintenance, long service life
1.Welding of high strength steel channel base
2.Low vibration at work, improve unit life
3.Coated with anti-rust paint quality, good corrosion resistance
Diesel Water Pump set
Packging: plywood case or as per customers' requirements
Delivery time: 21 days(once the deposit is received)
Diesel Water Pump set
1) The water pumps are powered by Ricardo,Deutz, Cummins, Weichai, Lovol ,Perkinsetc. diesel
engine, which have the global maintenance service.
2) There are so many authorized service stations where you can get maintenance serviceand spare
parts.
3) The warranty is 1500 running hours or 1 year (whichever comes first).
4) Quick production efficiency,transportation,after-sales service in place.
Diesel Water Pump Set Successful Cases
