Diesel Engine Irrigation Pump Centrifugal Pump With Price

FOB Price

US$ 2,600 - 5,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Shandong, China	Brand Name	U-Power
Model Number	weichai deutz	Theory	Centrifugal Pump
Structure	Single-stage Pump	Usage	Water
Power	Other, diesel	Standard or Nonstandard	Standard
Fuel	Diesel	Pressure	Low Pressure
Application	Other, irrigation,industrial,fire fitting

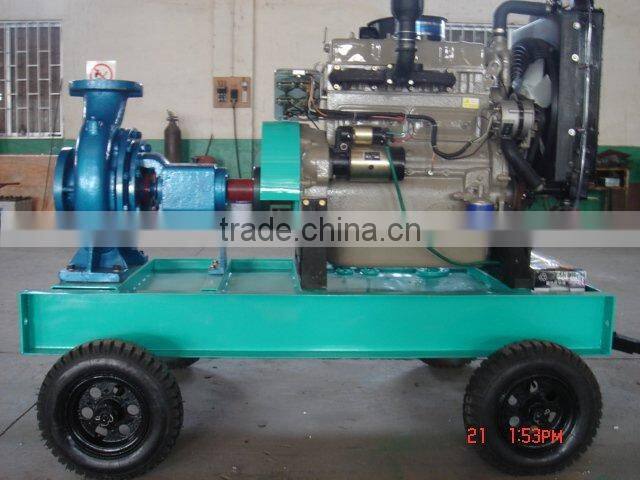

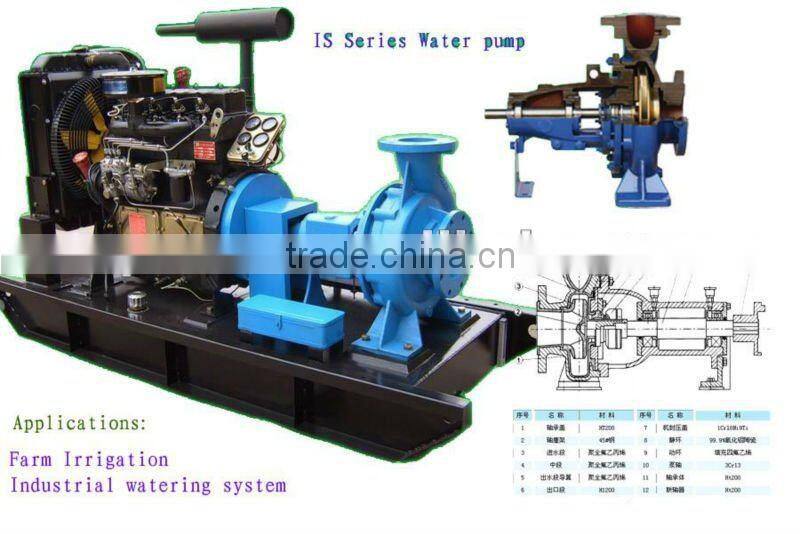

Diesel engine irrigation pump

Usage: Farm irrigation

Treated Water: Fresh water,River water

Outflow:400m³/h

Head Lift:32m

Diesel engine parameters:

Model of Diesel pump set	48DPK08(Q=400m3/h H=32m)
Model Diesel Engine	N4102ZDS
Rated Output/Max output(KW)	48KW/52.8KW
Rated Speed (r/min)	1500
Starting Method	DC Electric motor
Cooling Method	closed water cooling
Governing Method	Machinery governing
Inlet Method	Turbocharged
BorexStroke	105X115
Cylinders	4
Type	in-line,4 stroke,humid liner,direct injection

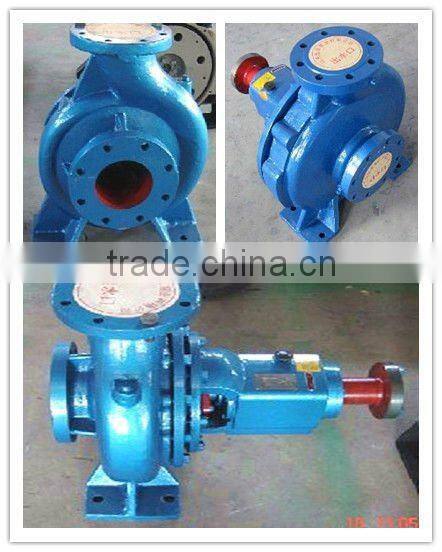

Model Pump	IS200-150-315
Type	Single-stage Single suction centrifugal pump
Outflow	400m3/h
Head lift	32m
Inlet diameter	200mm
outlet diameter	150mm
Speed	1450rpm
Efficiency	82%
Suction lift	6.5m
Control System	Display oil pressure,speed,water temperature,oil temperature.
Standard Equipments	Diesel engine: 1set
	Water pump: 1set
	Common base with 8 hours fuel tank:1 set
	Battery :24V*2
	Display meters: 1set
	Accessary spare parts
Packing	plywood case
Payment Terms	T/T30% deposit,balance before shipment
Delivery Time	10-15working days after received 30%deposit
MOQ	1SET

Quality Gurantee:1year/1500working hours(the first reach is valid )
