Specifications
Diesel Generator1)MAN technology
2)intake:turbocharged,turbocharged intercooled
3)24V DC star
4)IP44 H Isulation
diesel generator marine use

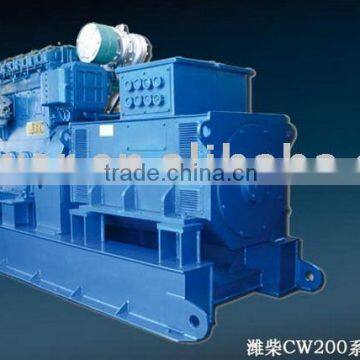

CW200 marine diesel generator
Prime output: 600-1200KW/750-1500KVA
Max output: 660-1320KW/825-1650KVA
Cyliner number: 6 /8/12
Bore/stroke: 200/270mm
3) Alternator model: Stamford / Marathon/Landian/FDC
4) Cooling method: closed Water-cooled
5) Start method: Gas
6) Speed governing method: Mechanical
7) Intake method: Turbocharged-intercooled
8) 400 / 230V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires
9) Frequency: <3%
10) Frequency at stable state: <1.0%
11) Frequency deviation at instantaneous state: ≤+10%
12) Frequency return time: ≤3s
13) Voltage deviation at stable state: ≤±1%
14) Voltage deviation at instantaneous state: ≤+20%
15) Voltage return time: ≤4s
16) Voltage modulation: ≤0.3%
17) Control system:
a) Automatic alarm system: acousto-optics test and alarm for start default,water over temperature, oil over temperature, over speed, oil over pressure and so on.
b) Operation display:
i) Unit voltage, tri-phase load current and frequency display
ii) Water temperature, oil pressure display
iii) Fuel level, fuel temperature display
iv) Audible and visual alarm lamps and buzzers
18) Standard supply:
a) Diesel engine standard supply,
b) Alternator
c) Steel structure
d) Flange connector
e) Air cleaner, fuel cleaner, oil cleaner
f) On-board control panel
g) Set shock absorber
