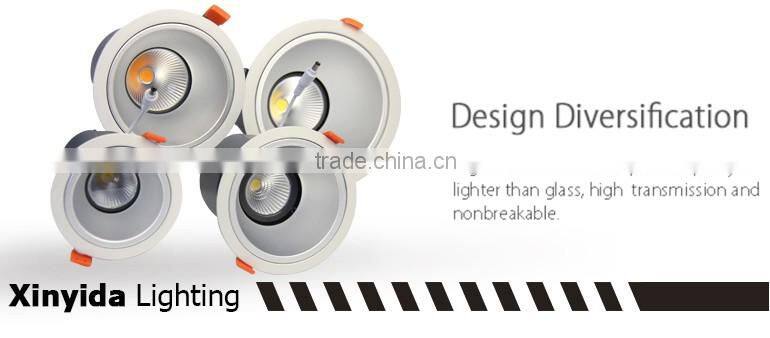

High quality product recessed linear led wall washer

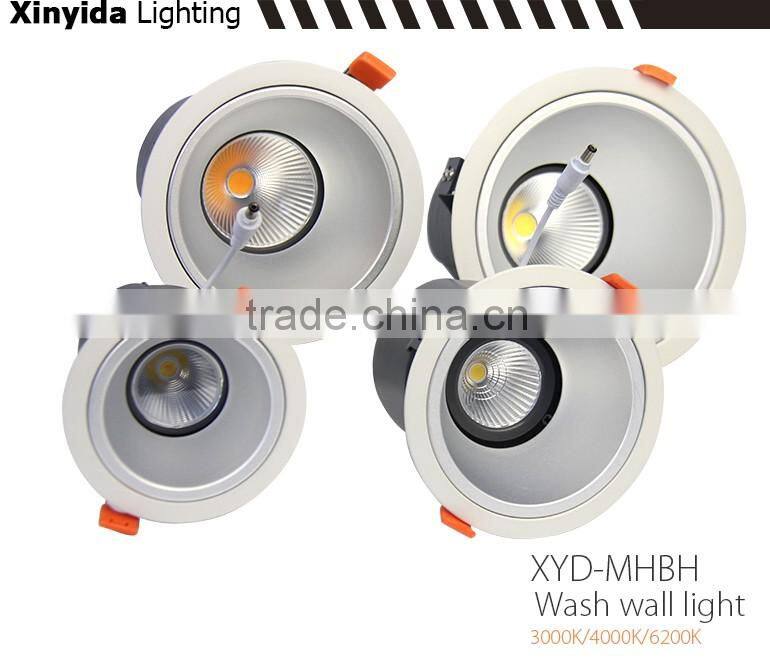

Product Description of recessed linear led wall washer
Model |
XYD-MHBH62 |
XYD-MHBH86 |
XYD-MHBH110 |
XYD-MHBH140 | XYD-MHBH168 | XYD-MHBH198 |
| Power | 7 W | 12 W | 15 W | 21 W | 35 W |
35 W |
| Input | AC100-240V 50/60Hz | AC100-240V 50/60Hz | AC100-240V 50/60Hz | AC100-240V 50/60Hz |
AC100-240V 50/60Hz |
AC100-240V 50/60Hz |

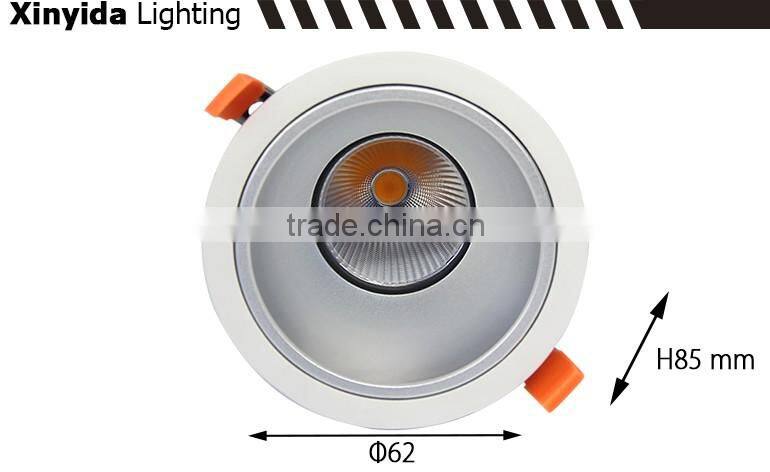

| Size | Φ62*H85 mm | Φ86*H115 mm | Φ110*H140 mm | Φ140*H155 mm | Φ168*H200 mm | Φ198*H210 mm |

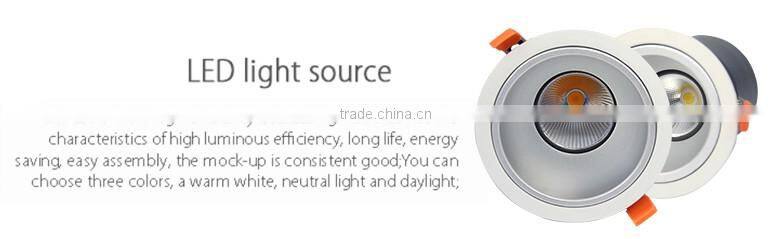

| Light Source | COB 7S2P Shiny Surface d=Φ11mm | COB 12S2P Shiny Surface d=Φ11mm | COB 15S2P Shiny Surface d=Φ11mm | COB 12S3P Shiny Surface d=Φ11mm |
COB 12S6P Shiny Surface d=Φ17mm |
COB 12S6P Shiny Surface d=Φ17mm |
| CCT |
3000K/4000K /6200K |
3000K/4000K /6200K |
3000K/4000K /6200K |
3000K/4000K /6200K |
3000K/4000K /6200K |
3000K/4000K /6200K |
| Installation Hole Size | Φ52 mm | Φ76 mm | Φ100 mm | Φ130 mm | Φ155 mm | Φ185 mm |
| Luminous Efficiency | 81 lm/W | 83 lm/W | 83 lm/W | 83.5 lm/W |
83.5 lm/W |
83.5 lm/W |
| Luminous Flux | 730 lm | 1250 lm | 1550 lm | 2150 lm | 3550 lm |
3550 lm |
| Applicable Temperature | -25°C- +50°C | -25°C- +50°C | -25°C- +50°C | -25°C- +50°C |
-25°C- +50°C |
-25°C- +50°C |
| Packing Box Size | 75*75*100 mm | 100*100*125 mm | 115*115*150 mm | 145*145*175 mm | 175*175*210 mm |
205*205*230 mm |
| Carton Size | 545*320*220 mm | 520*320*270 mm |
595*250*320 mm |
455*370*310 mm |
545*370*230 mm | 635*430*250 mm |
| Net Weight | 0.17 kg | 0.41 kg | 0.6 kg | 0.93 kg |
1.51 kg |
1.57 kg |
| Gross Weight | 0.19 kg | 0.45 kg | 0.64 kg | 0.99 kg | 1.71 kg | 1.78 kg |
| Packing weight | 11 kg | 13.95 kg | 13.3 kg | 12.4 kg | 10.72 kg | 11.36 kg |
| Packing Quantity | 56 PCS | 30 PCS | 20 PCS | 12 PCS |
6 PCS |
6 PCS |
| Product name | recessed linear led wall washer | |||||
The application of recessed linear led wall washer
Company Profile
We are a manufacturer engaged in the research, development, production, sale and service of various kinds of LED lighting products including outdoor lighting and indoor lighting, such as spot lights, wall washer lights, high bay lights, ceiling lamps, down light, Our products have passed CE certification and RoHS certification. Furthermore, we are planning to apply for the UL, CB and SAA certificates.
With our experience and hardworking staff members, our products are sold well in different cities and provinces around China and enjoy a good reputation among our customers.
We promise we will introduce more advanced and professional production equipments to ensure product quality and production, and we also accept OEM and ODM orders, the company "customer must be assured" as the goal, "quality, innovation, service-oriented" for the purpose, to our focus and efforts will be new and old customers positive In response, work together to create a better future. If you are interested in our products or have special product requirements, please contact us. We will do our best to meet your needs.
The certification of recessed linear led wall washer
Transportation
FAQ
Q:Where is the main area?
A:Europe,South America,South Asia,Middle East,Africa.
Q:Why choose us?
A:1. We are a factory manufacturing led indoor lamps ,best production capability, best quality control .
2. Service is there for you before. during and after the purchase.
Q:How to pay?( recessed linear led wall washer )
A: Samples: T/T, L/C,Formal order: 30% deposite,70% balance T/T before shipping L/C at sight.
Q:Whether to accept OEM and ODM orders?
A: Yes.
Q:What certification bodies?
A:Our products have passed CE certification and RoHS certification. Furthermore, we are planning to apply for the UL, CB and SAA certificates.
