Home > Products > Volvo engine60kw to 600kw diesel generator set > 100kw 125kva Diesel Electric Generator Set With Volvo Penta Tad532ge Engine
100kw 125kva Diesel Electric Generator Set With Volvo Penta Tad532ge Engine
- Shanghai for 100kw 125kva diesel electric generator set with volvo penta
- T/T Money Gram
You May Like
-
128kw 160kva Diesel Electric Generator Set With Volvo Penta Tad731ge Engine
-
150kw Diesel Electric Generator Set With Volvo Penta Tad732ge Engine
-
160kw 200kva Diesel Electric Generator Set With Volvo Penta Tad733ge Engine
-
200kw 250kva Diesel Electric Generator Set With Volvo Penta Tad734ge Engine
-
68kw Diesel Electric Generator Set With Volvo Penta Tad530ge Engine
-
260kw Diesel Electric Generator Set With Volvo Penta Tad1341ge Engine
Product Details
| Place of Origin | Jiangsu, China | Brand Name | Haifeng | |
| Model Number | HF-100GF | Output Type | AC Three Phase | |
| Speed | 1500/1800rpm | Frequency | 50HZ/60HZ Alternator | |
| Rated Power | 100kw 125kva | Rated Voltage | 400/230V | |
| Rated Current | Voltage |
Product Description
| Prime power | It is the continuous operation power .Under the power changing work environment it allows 10% 1hour overload every12 hours . |
| Standby Power | The biggest power the generator can load in an emergency situation. |
Standard :
SmartGen 6110 UC Controller with 78 programmes
Aluminum Hand Pumps
8 Hours base fuel tank 75% Load
Emergency Stop buttom
SWG Maintenance - free sealed battery ( Nanometer High-energy)
Optional :
silent type : 77DB in one meter
Other famous chinese brand brushless alternator such as shanghai stamford,Godlike etc
ATS with SmartGen HGM3120UC (AMF) controller
Three wheel trailer diesel generator set ( <30km/h)
Overall description of 100kw 125kva diesel electric generator set with volvo penta tad532ge engine
1,Diesel generator set | ||
Genset model | HF-100GF | |
Rated power | 100kw 125kva | |
Rated voltage | 230v/400v (adjustable) | |
Rated frequency | 50 HZ/60 HZ 1500rpm/1800rpm | |
Power factor | 0.8 (lagging) | |
The regulating rate of steady voltage | ±0.5 | |
Overwall dimensions mm | 22500*860*1270 | |
| Net weight kg | 980 | |
Diesel engine | Brand | powered by volvo engine |
Model | TAD532GE | |
Cylinder No. | 4 | |
Bore *stroke (mm) | 108*130 | |
Displacement (L) | 4.76 | |
Fuel consumption g/kw.h | 206 | |
Rotating speed rpm | 1500/1800 | |
Cycle | 4 stroke | |
Speed governor | Electrical | |
Cooling system | Closed circle water-cooled | |
Starting method | DC 24V Electrical starting | |
Alternator | Brand | Qianghui ,Lingyu Godlike ,Stamford |
Number of phase | 3 | |
Connecting type | Three phase and four lines | |
Number of bearing | 1 | |
Grading protection | IP22 | |
Exciter type | Brushless AVR automatic voltage regulating | |
Insulation Class | H degree | |
Speed governor | Electrical | |
Altitude | 1000 m | |
| The main components of the diesel genset | ||
| 1,powered by cummins diesel engine | 1, alternator ( selectable ) | 3,Control panel (selectable) |
You can also have silent type and trailer type of this generator

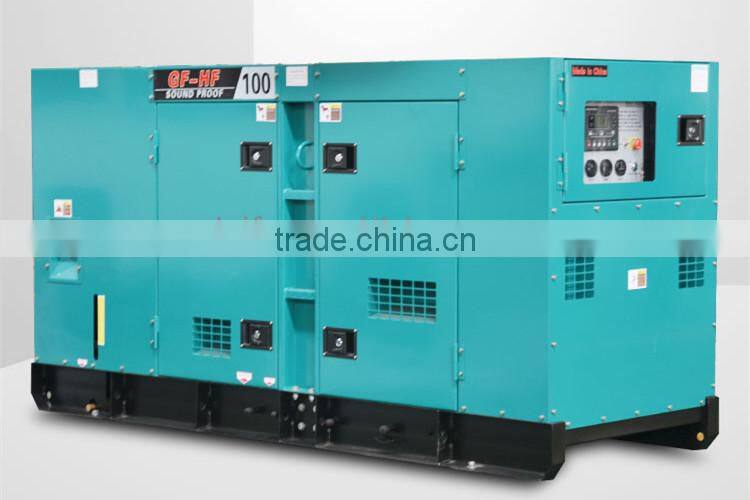

The silent type :

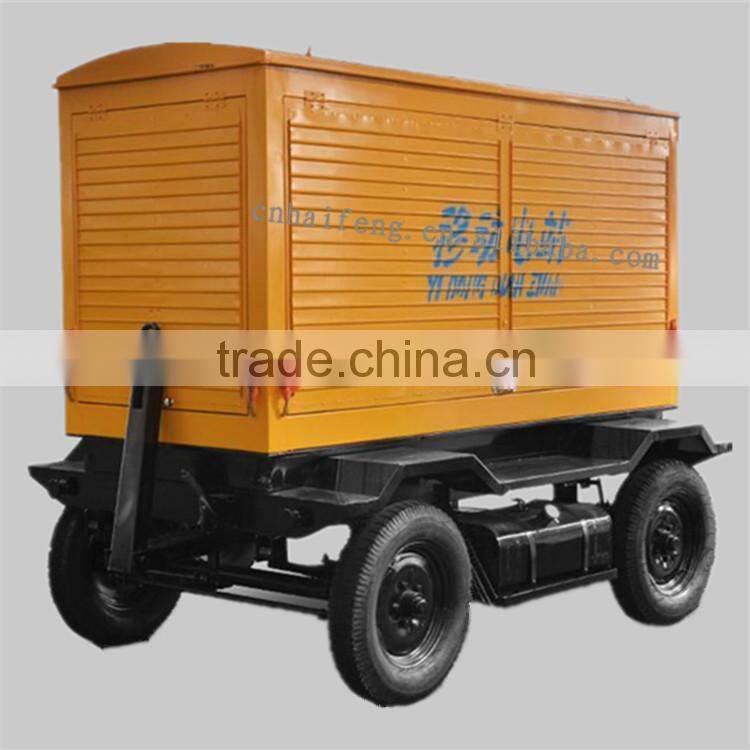

The trailer type :

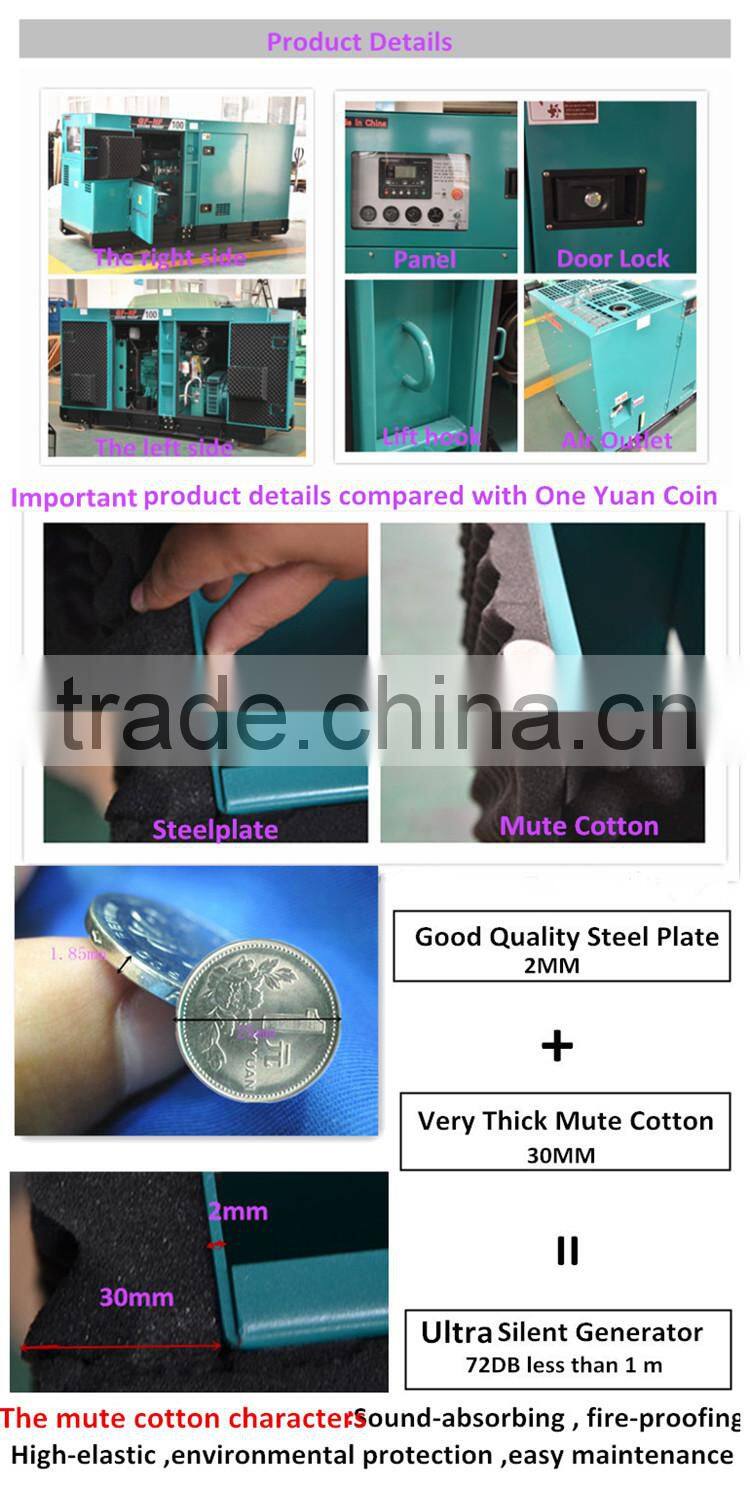

The details of the silent type :

Package
1, With packaging Film
2, With wooden box
3,We also respect our customers ' recommendance .
Beside Powered by volvo engine type ,there are many other types with different or same power .And all the generator have open type silent type and mobile type .
Before shipping ,we adjust the machine to make sure it works well .
During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .
The warranty time is one year almost 1000 using hours .
If the products have some problems we will send the parts free and instruct you how to repair
it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .

1 ,Q : What kind of generator set do you supply ?
A : The generator set we supply used diesel and we only supply diesel generator set. diesel engine ,generator alternator .
2, Q : What kind of the engine brands and alternator brands can your provide ?
A : Many engine brands : such as the generator engine powered by Perkins ,by Cummins Volvo,,Deutz,Doosan,Yuchai,Shangchai,Weichai etc . Many alternator brands : wuxi Standford,shanghai standford ,Goldlike,Leroysomer etc.
3,Q : What Kind of alternator do you usually match the generator? what if i have special requirement about the alternator match with the generator ?
A : We usually match the generator with Standford or Goldlike . If you have special request we would like to take your advice .
4,Q : Can you accept OEM ?
A : Yes, we can accept OEM.
5, Q : what's your delivery time ?
A : It depends,usually ten days after receiving the deposit
6, Q : Beside open diesel generator ,can you provide silent type and trailer type ?
A : Yes, open ,silent ,trailer type we all can provide . and our silent type is with high quality ,it can be very quiet . 77DB with in one meter.
7,Q : what kind of payment can you accept ?
A : Usually we accept T/T 30% in advance,the balance 70% before shippment . but if you want T/T 100% we won't refuse . You can also choose L/C ,west Union.
8,Q : I want to buy a diesel generator set ,but i am still confused about the power and type ,can i contact you ?
A : Yes ,of course,you can contact me on line or by email at any time . i would be appreciate to help .
