Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > High Quality Open Type 150kva Diesel Generator Set With Cummins Engine

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine

Name: High Quality Open Type 150kva Diesel Generator Set With Cummins Engine
Brand: Cummins
SKU: 124759693
Availability: InStock

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine thumbnail-1

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine thumbnail-2

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine thumbnail-3

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine thumbnail-4

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine thumbnail-5

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine thumbnail-6

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine photo-1

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine photo-2

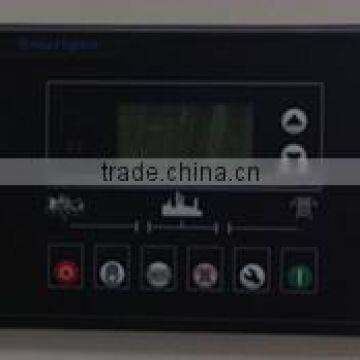

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine photo-3

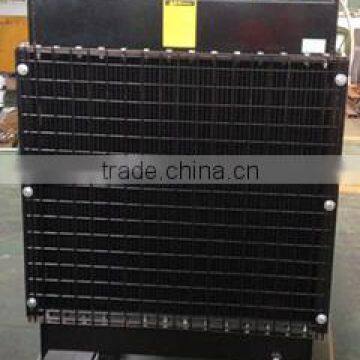

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine photo-4

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine photo-5

High Quality Open Type 150kva Diesel Generator Set With Cummins Engine photo-6

US$ 5,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Cummins

Model Number:

HF-120kw

Contact Supplier Request Quote Chat Now

Taizhou Haifeng Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Cummins

Model Number HF-120kw

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50HZ/60HZ

Rated Power 120KW/150kva

Rated Voltage 400/230V

Rated Current Depend

high quality open type 150kva diesel generator set with cummins engine

Product Description

We are proffessional diesel generator manufacture in China . We supervise the manufacturing process in strict accordance with ISO9001 : 2008 . the silent type is good at reduce the noise and it can be used outdoor without worrying about the weather. In order to make sure all the products workes well we adjust the products several times before shipping. we can provide power from 20kw to 2000kw . usually it is with cummins engine , but also can be other engine such as volvo ,MTU perkins etc . Any of your contact will be appreciated .

1,Diesel generator set
Genset model		HF-120kw
Rated power		120kw/150kva
Rated voltage		230v/400v (adjustable)
Rated frequency		50 HZ/60 HZ
Power factor		0.8 (lagging)
The regulating rate of steady voltage		±0.5
Open sets dimension (l w h) mm		24008601350
Weight kg		1490
Disel engine	Brand		cummins
	Model		6BTAA5.9-G2
	Cylinder No.		6
	Bore *stroke (mm)		114*135
	Displacement (L)		5.88
	Fuel consumption g/kw.h		213
	Rotating speed rpm		1500/1800
	Cycle		4 stroke
	Speed governor		Electrical
	Cooling system		Closed circle water-cooled
	Starting method		DC 24V Electrical starting
Alternator	Brand		Qianghui ,Lingyu Godlike ,Stanford
	Number of phase		3
	Connecting type		Three phase and four lines
	Number of bearing		1
	Grading protection		IP22
	Exciter type		Brushless AVR automatic voltage regulating
	Insulation Class		H degree
	Speed governor		Electrical
	Altitude		1000 m

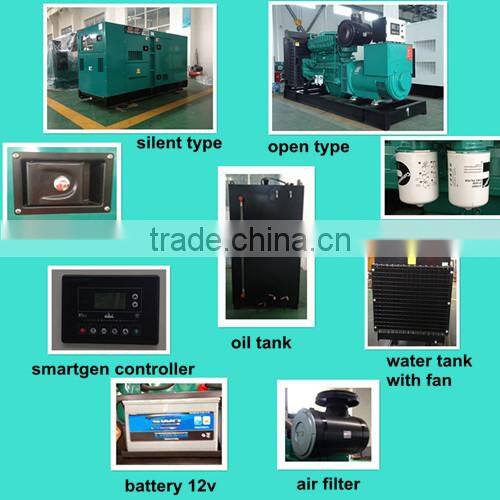

The main components of the diesel genset
1,Cummins diesel engine	1, alternator ( selectable )		3,Control panel (selectable)

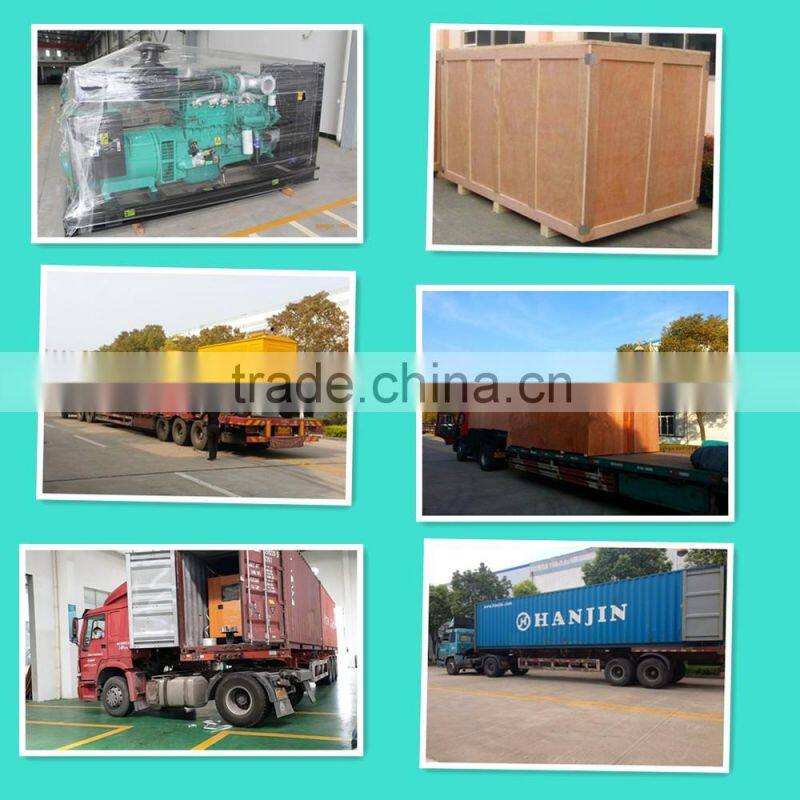

Packaging & Shipping

Usually it only need 10days after receiving the deposit ,but it always depends on the quantity and type you order .

All the open type and silent type can be packaged by wooden cases and PE film . We also package the products as you request .

Our Services

Beside cumminstype ,there are many other types with different or same power . And all the

generator have open type ,silent type and mobile type .

Before shipping ,we adjust the machine to make sure it works well .

During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .

The warranty time is one year almost 1000 using hours .

If the products have some problems we will send the parts free and instruct you how to repair it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .
