Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > 40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine

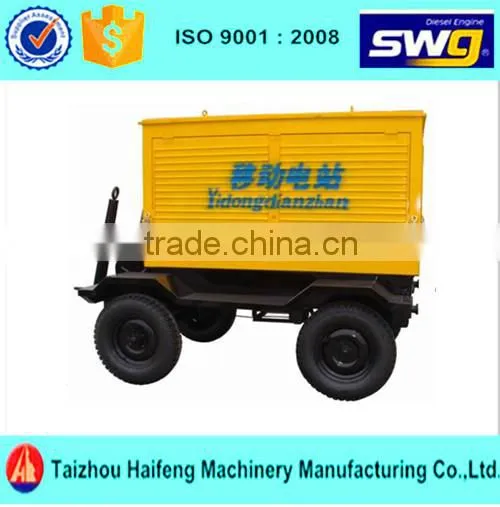

40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine

Name: 40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine
Brand: Haifeng
SKU: 124759531

40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine thumbnail-1

40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine thumbnail-2

40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine photo-1

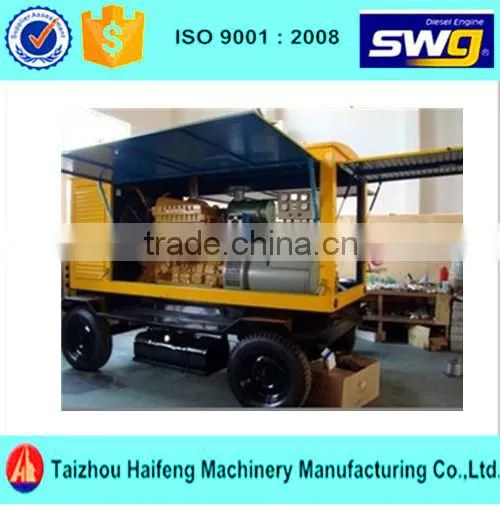

40KW/50KVA Mobile Type ISO Approved Diesel Generator Set Powered by Cummins Engine photo-2

US$ 5,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Haifeng

Model Number:

HF-40GF 4B-3.9-G2

Contact Supplier Request Quote Chat Now

Taizhou Haifeng Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Haifeng

Model Number HF-40GF 4B-3.9-G2

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50HZ/60HZ

Rated Power 40KW/50KVA

Rated Voltage 400/230V

Rated Current Voltage

40KW/50KVA mobile type ISO approved diesel generator set powered by Cummins engine

Product Description

The advantage of diesel generator set powered by Cummins engine

1, It has the vast power range from 20kw to 2000kw

2,Good after sale network system ,can provide global guaranty and has complete and fast

spare parts supply

3, Good stability performance ,shows in the frequency ,voltage and power .

4,Low emissions .

5, Heavy repair time can be as long as 15000 hours if you use and maintain it in the proper way.

overall description of Cummins diesel generator set

1 , Cummins engine and optional Alternator such as Godlike ,Stanford, Qianghui , Lingyu .

Optional controller such as deep sea ,Harsen ,Smartgen

2 , Water cooled radiator ,the fans driven by belt and with safety shield .

3 , DC 24V electrical battery charging starting Alternator

4 , the alternator with single bearing ,IP22 grading protection , H degree Insulation Class

5 , Equipped with air filter ,oil filter ,fuel filter

6 , Lubrication system

7 , exhaust pipe ,Corrugated shock tube ,flange , muffler set

Parameter

1, Rated voltage : 230v/400v

2, Rated frequency : 50HZ/60HZ

3,Rated speed : 1500r/min or 1800r/min

4, Mode of connection : three phase four line

5,Rated power factor : 0.8 (lagging)

6, Steady voltage fluctuation : ≤ ±0.5%

7,Working style : continuous

8,24V battery charging alternator

9,Altitude : ≤ 1000 M

Engine

1, brand : Cummins 40kw/50kva

2,model :4b3.9-g2

3, Rotating speed : 1500rpm

4, number of cylinder : 4

5,four stroke,direct injection

6, Naturally aspirated ,turbocharged ,water cooled with fans and water tank

7,Machinery or electronic governing

8,DC 24v electrical starting battery ,low fuel consumption

9, installed conveniently and maintain easily

Alternator :

1, Brushless ,AVR self-regulated ,self-excited,4-pole ,single bearing

2, Protection grade : IP22

3, H grade insulation class

4, Connecting type : three phase four lines

5,Insulation : H class

6, Moistureproof ,sand proof ,dust proof ,salt proof,vibration proof

Packaging & Shipping

Usually it only need 10days after receiving the deposit ,but it always depends on the quantity and type you order .

All the open type and silent type can be packaged by wooden cases and PE film . We also package the products as you request .

Our Services

Beside using cummins engine type ,there are many other types with different or same power .

such as with volvo ,perkins ,MTU and so on And all the generator have open type silent type and mobile type .

Before shipping ,we adjust the machine to make sure it works well .

During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .

The warranty time is one year almost 1000 using hours .

If the products have some problems we will send the parts free and instruct you how to repair

it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .
