Home > Industrial Equipment & Components > Power & Generating Sets > Diesel Generator > Silent Type Diesel Generator Set

Silent Type Diesel Generator Set

Name: Silent Type Diesel Generator Set
Brand: Haifeng
SKU: 124759453

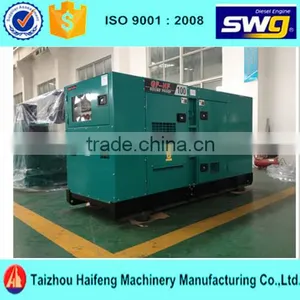

Silent Type Diesel Generator Set thumbnail-1

Silent Type Diesel Generator Set photo-1

US$ 5,000 - 200,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

Haifeng

Model Number:

HF10GF-2000GF

Contact Supplier Request Quote Chat Now

Taizhou Haifeng Machinery Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name Haifeng

Model Number HF10GF-2000GF

Output Type AC Three Phase

Speed 1500/1800rpm

Frequency 50HZ/60HZ

Rated Power 20KW/25KVA to 2000kw/2500kva

Rated Voltage 400/230V

Rated Current Voltage

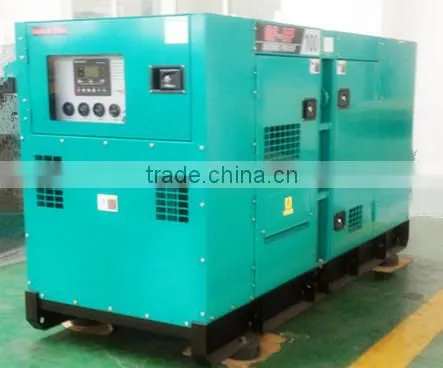

silent type diesel generator set

Product Description

Cumming diesel generator sets used Chongqing cummins engine (CCEC)and Dongfeng Cummins (DCEC)engine .and the chongqing cummins series of engines is the Jiont ventures of USA cummins engine corporations which was a wold famous brand founded in 1919. The N k M series of cummins engines are equipped with speed electronic governors ,which has the protection of sound alarming system and automatically stopping system when it is high cooling water temperature is too high ,low fuel oil pressure and over speed working . The fuel oil system ( PT FUEL OILE SYSTEM ) has the characteristic of best fuel consuming and dynamic load . It is reliable and economic and widely used in army ,engineering ,min industry etc.

The silent type is with low noise ,warther proof, and looks more beautiful . it can be used in the out side place and liable to mantain .

1,Diesel generator set
Genset model		HF-20GFto HF-2000GF
Rated power		20KW/25KVA TO 2000KW/2500KVA
Rated voltage		230v/400v (adjustable)
Rated frequency		50 HZ/60 HZ
Power factor		0.8 (lagging)
The regulating rate of steady voltage		±0.5
Open sets dimension (l w h) mm		1950800960
Weight kg		800
Disel engine	Brand		cummins,VOLVO,MTU,MAN,DOOSAN
	Model		depends what you want
	Cylinder No.		4,6,12,16,20 etc.
	Bore *stroke (mm)
	Displacement (L)
	Fuel consumption g/kw.h
	Rotating speed rpm		1500/1800
	Cycle		4 stroke
	Speed governor		Electrical
	Cooling system		Closed circle water-cooled,Air to air
	Starting method		DC 24V Electrical starting
Alternator	Brand		Qianghui ,Lingyu Godlike ,Stanford
	Number of phase		3
	Connecting type		Three phase and four lines
	Number of bearing		1
	Grading protection		IP22
	Exciter type		Brushless AVR automatic voltage regulating
	Insulation Class		H degree
	Speed governor		Electrical
	Altitude		1000 m
The main components of the diesel genset
1,diesel engine	1, alternator ( selectable )		3,Control panel (selectable)

Packaging & Shipping

Usually it only need 10days after receiving the deposit ,but it always depends on the quantity and type you order .

All the open type and silent type can be packaged by wooden cases and PE film . We also package the products as you request .

Our Services

Beside using cummins engine type ,there are many other types with different or same power .

such as with volvo ,perkins ,MTU and so on And all the generator have open type silent type and mobile type .

Before shipping ,we adjust the machine to make sure it works well .

During the producing time ,package time deliver time ,we will send you pictures to let you know how it goes on through email phone or other communication tool .

The warranty time is one year almost 1000 using hours .

If the products have some problems we will send the parts free and instruct you how to repair it through video ,phone ,email,or other tool. And a engineer is also available . Or,we will check and replace by a comparable one which may be new or refurbished .
