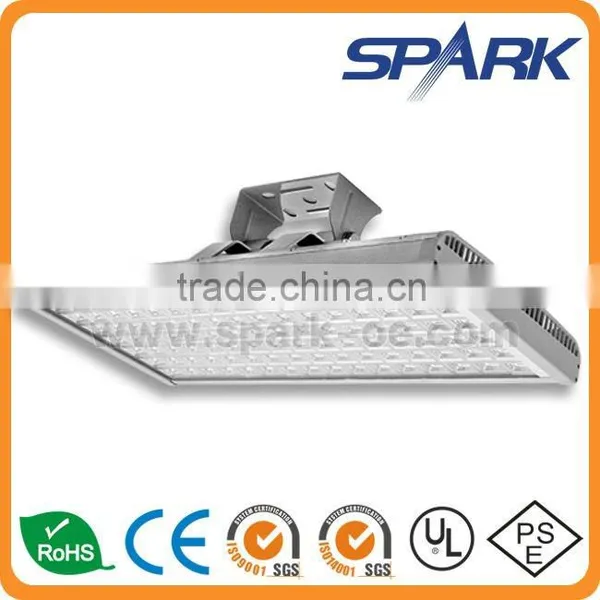

200W High Power LED Tunnel Light With CE/RoHS
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Lamp Power(W):
200
Lamp Luminous Flux(lm):
16200
Color Temperature(CCT):
Pure White
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Unique Optical Design & Rectangular Beam LED Tunnel LightNegotiableMOQ: 2 Pieces -
Spark High Efficiency LED Tunnel Light CE CQCNegotiableMOQ: 2 Pieces
-
Spark Intelligent Control LED Tunnel Light 150WNegotiableMOQ: 2 Pieces
-
Spark New Integrated LED Tunnel Light 180WNegotiableMOQ: 2 Pieces
-
Spark High Efficiency LED Tunnel Light 60WNegotiableMOQ: 2 Pieces
Lamp Power(W)
200
Lamp Luminous Flux(lm)
16200
Color Temperature(CCT)
Pure White
Lamp Body Material
PC
IP Rating
IP66
Certification
CE, CQC, EMC, FCC, PSE, UL, VDE
Place of Origin
China
Brand Name
SPARK LED Tunnel Light
Model Number
SPT-200, led tunnel light SPT-56C (Strip)
High Power LED Tunnel Light is new type of high efficient and energy saving product using High Power LED as light source. With low temperature, no UV and IR, LED Tunnel Light can be truly called Green Light and widely used.
Spark LED Tunnel Light is designed to be outstanding dustproof and waterproof by lamp body using die-casting aluminum alloy and tempered glass and core lamp using high brightness material.
Characteristics of LED Tunnel Light:
- More than 70% energy saving
- Light control and time-phase dimming, saving further energy
- High quality power supply, reliable and stable, automatically reduce current against overheating temperature
- Unique optical design & rectangular beam, suitable for roadway illumination
Features of LED Tunnel Light:
- CE and RoHS approved. UL Driver available.
- Die-casting aluminum casing and high intensity toughened glass cover
- High efficiency and power factor LED driver
- Wide radiation angle, huge lighting area
- Start without delay and flicker free
- Good color rendering
- Warm and cold color temperature are available
- High shock & vibration resistant
- Ideal heat dissipation design
- Solid State, high shock/vibration resistant.
- No RF interference, No flickering or buzzing.
- Quick and easy installation to minimize retrofit costs.
- No UV & IR, No Blinking and No Mercury & Lead free
- Patented fixture design and Led package technology
- Energy saving system, saving 70% energy than the conventional Metal halide lamp, Sodium Light or HPS light
Application of LED Tunnel Light:

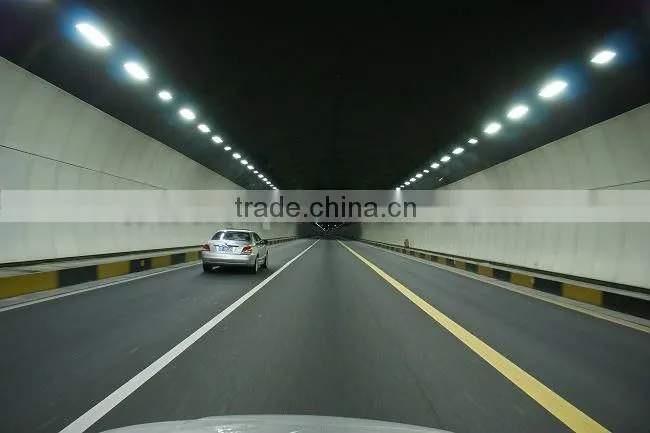

Tunnel, Football field, Stage, Buildings, Advertising Board, Gym, Stadium, Yard, Lawn, Garden, Park, Plaza, Workshop, Warehouse, Shopping Mall, Exhibition Hall, Gas Station, Highway, Toll Station, Dock etc.
Please NOW feel free to contact us for customized LED Lighting Project.
Main Technology Index:
| Model No. | SPT-200 | |
| LED Light Source | Philips Lumileds/CREE LED | |
| LED Quantity | 112 x 1PCS LED | |
| LED Luminous Efficiency | 107-122 lm/w | |
| Lamp Rated Total Power | 200W | |
| Lamp Rated Luminous Efficiency | 80 lm/w | |
| LED Drive Current | 500mA | |
| Lamp Rated Total Luminous Flux | 16,200 lm | |
| Average lllumination and Effective Area | 3M Height | 7.5m×6m ≥888LUX |
| 4M Height | 9m×8m ≥500LUX | |
| 5M Height | 12m×10m ≥320LUX | |
| 6M Height | 14m×12m ≥222LUX | |
| Color Rendering Index(CRI) | Ra>75 | |
| Power Efficiency | 85% | |
| Color Temperature(Color Temperture) | Cool white: 5700K | |
| Pure white: 4500K | ||
| Warm white: 3000K | ||
| Beam Angle | Horizontal Axis:100° ; Vertical Axis:90° | |
| Light Distribution Curve(Beam Pattern) | Asymmetric/ Rectangular Beam | |
| Input Voltage | AC 85-264V/277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(PF) | ≥ 0.95 | |
| Total Harmonic Distortion(THD) | < 15% | |
| Storage Temperature | -40°C--+80°C | |
| Working Environment | -40°C--+50°C ; 10%-95%RH | |
| Light Body and Lampshade Material | Aluminum Alloy and Toughened Glass | |
| Working Lifetime | > 50,000hrs | |
| IP Rating | IP66 | |
| Net Weight | 14.85kg | |
| Gross Weight | 16.55kg | |
| Product Dimension(mm) | 744(L) x 329(W) x 219(H) (mm) | |
| Package Size(mm) | 812(L) x 397(W) x 265(H) (1 PC) | |
