Help CenterLight Control and Time-phase Dimming LED Tunnel Lamp
Related Products
-
Spark 120W Outdoor LED Tunnel Lamp With CENegotiableMOQ: 2 Pieces -
Spark 150W CE&ROHS Approved LED Tunnel Light High PowerNegotiableMOQ: 2 Pieces
-
Spark CQC Certified LED Tunnel Light, Underpass LightingNegotiableMOQ: 1 Piece
-
200W High Power LED Tunnel Light With CE/RoHSNegotiableMOQ: 2 Pieces
-
Unique Optical Design & Rectangular Beam LED Tunnel LightNegotiableMOQ: 2 Pieces

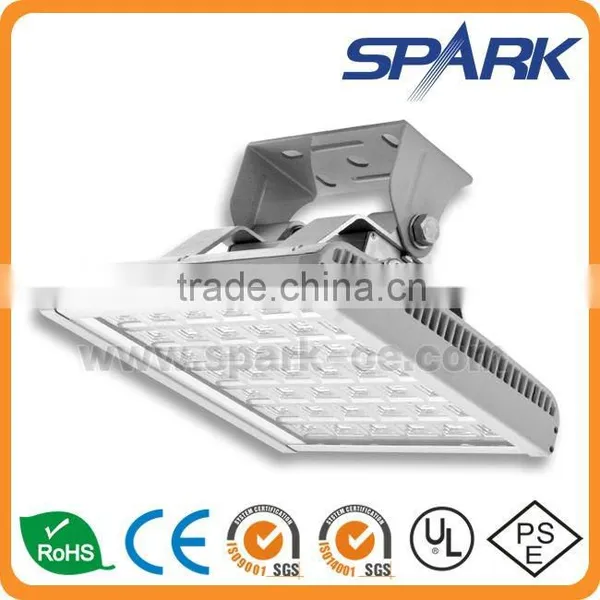

High Power LED Tunnel Light is new type of high efficient and energy saving product using High Power LED as light source. With low temperature, no UV and IR, LED Tunnel Light can be truly called Green Light and widely used.
Spark LED Tunnel Light is designed to be outstanding dustproof and waterproof by lamp body using die-casting aluminum alloy and tempered glass and core lamp using high brightness material. Spark make every effort to perfect every details including the spare parts, improving our LED Tunnel Light to be safer, more reliable, energy-saving, longer lifespan and better applicable for public areas such as square, tunnel etc.
As professional LED Tunnel Light manufacturer, all our products have been accredited with CE & RoHS certification. In addition to standard LED Tunnel Light, we also provide customized Tunnel Light Project solution for customers. We welcome you for more information!
Application: tunnels, parking lots, warehouses, petrol stations etc.
More than 70% energy saving
Light control and time-phase dimming, saving further energy
High quality power supply, reliable and stable, automatically reduce current against overheating temperature
Unique optical design & rectangular beam, suitable for roadway illumination
| Model No. | SPT-75 | |
| LED Light Source | Philips Lumileds/CREE LED | |
| LED Quantity | 42 PCS x 1W | |
| LED Luminous Efficiency | 107-122 lm/w | |
| Lamp Rated Total Power | 75W | |
| Lamp Rated Luminous Efficiency | 80lm/w | |
| Power Efficiency | > 85% | |
| Lamp Rated Total Luminous Flux | 6,100 lm | |
| Average lllumination and Effective Area | 3M Height | 7.5m×6m ≥333LUX |
| 4M Height | 9m×8m ≥187LUX | |
| 5M Height | 12m×10m ≥120LUX | |
| 6M Height | 14m×12m ≥83LUX | |
| Color Rendering Index(CRI) | Ra>75 | |
| Color Temperature(Color Temperture) | Cool white: 5700K | |
| Pure white: 4500K | ||
| Warm white: 3000K | ||
| Beam Angle | Horizontal Axis:100° ; Vertical Axis:90° | |
| Light Distribution Curve(Beam Pattern) | Asymmetric (Bat Wing) / Rectangular Beam | |
| Input Voltage | AC 85-264V, 277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(PF) | ≥ 0.95 | |
| Total Harmonic Distortion(THD) | < 15% | |
| Storage Temperature | -40°C--+80°C | |
| Working Environment | -40°C--+50°C ; 10%-95%RH | |
| Light Body and Lampshade Material | Aluminum Alloy and Toughened Glass | |
| Working Lifetime | > 50,000hrs | |
| IP Rating | IP66 | |
| Net Weight | 8.25kg | |
| Gross Weight | 9.41kg | |
| Product Dimension(mm) | 316(L) x 329(W) x 219(H) (mm) | |
| Package Size(mm) | 368(L) x 385(W) x 250(H) (1 PC) | |
