150W PSE/CE/RoHS Cree LED Tunnel Lights
High Power LED Tunnel Light is new type of high efficient and energy saving product using High Power LED as light source. With low temperature, no UV and IR, LED Tunnel Light can be truly called Green Light and widely used.
Spark LED Tunnel Light is designed to be outstanding dustproof and waterproof by lamp body using die-casting aluminum alloy and tempered glass and core lamp using high brightness material. Spark make every effort to perfect every details including the spare parts, improving our LED Tunnel Light to be safer, more reliable, energy-saving, longer lifespan and better applicable for public areas such as square, tunnel etc.
As professional LED Tunnel Light manufacturer, all our products have been accredited with CE & RoHS certification. In addition to standard LED Tunnel Light, we also provide customized Tunnel Light Project solution for customers. We welcome you for more information!

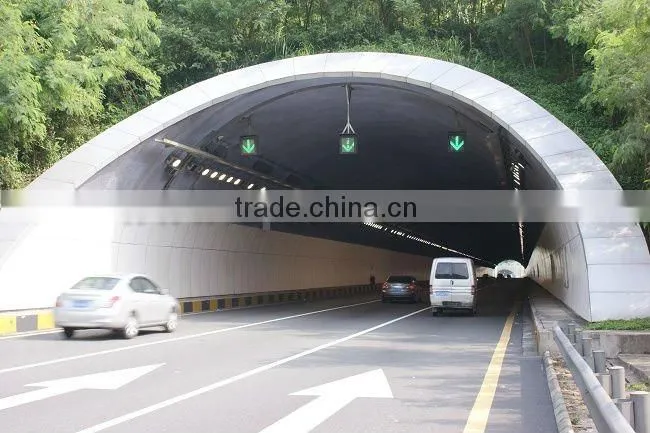

Application: tunnels, parking lots, warehouses, petrol stations etc.
More than 70% energy saving
Light control and time-phase dimming, saving further energy
High quality power supply, reliable and stable, automatically reduce current against overheating temperature
Unique optical design & rectangular beam, suitable for roadway illumination
Main Technology Index:
| Model No. | SPT-150 | |
| LED Light Source | Philips Lumileds/CREE LED | |
| LED Quantity | 84 x 1PCS LED | |
| LED Luminous Efficiency | 107-122 lm/w | |
| Lamp Rated Total Power | 150W | |
| Lamp Rated Luminous Efficiency | 80 lm/w | |
| LED Drive Current | 500mA | |
| Lamp Rated Total Luminous Flux | 12,100 lm | |
| Average lllumination and Effective Area | 4M Height | 7.86m×10.17m ≥59LUX |
| 6M Height | 11.79m×13.56m ≥26LUX | |
| 8M Height | 15.72m×18.08m ≥15LUX | |
| 10M Height | 19.65m×22.60m ≥9LUX | |
| Color Rendering Index(CRI) | Ra>75 | |
| Power Efficiency | 85% | |
| Color Temperature(Color Temperture) | Cool white: 5000-6300K | |
| Pure white: 4000-5000K | ||
| Warm white: 2700-3500K | ||
| Beam Angle | Horizontal Axis:100° ; Vertical Axis:90° | |
| Light Distribution Curve(Beam Pattern) | Asymmetric (Bat Wing) / Rectangular Beam | |
| Input Voltage | AC 85-264V, 277V | |
| Frequency Range | 47-63Hz | |
| Power Factor(PF) | ≥ 0.95 | |
| Total Harmonic Distortion(THD) | < 15% | |
| Storage Temperature | -40°C--+80°C | |
| Working Environment | -40°C--+50°C ; 10%-95%RH | |
| Light Body and Lampshade Material | Aluminum Alloy and Toughened Glass | |
| Working Lifetime | > 50,000hrs | |
| IP Rating | IP66 | |
| Net Weight | 9.46kg | |
| Gross Weight | 10.58kg | |
| Product Dimension(mm) | 1270(L) x 130(W) x 150(H) (mm) | |
| Package Size(mm) | 1320(L) x 180(W) x 160(H) (1 PC) | |
