Help Center2016 High Quality Enameled Aluminum Wire For Motor
Related Products
-
AWG10-17 Enameled Aluminum Wire ManufacturerUS$ 2.5 - 3.5MOQ: 1000 Kilograms -
Thailand Transformer Enameled Aluminum WireUS$ 3.3 - 4.5MOQ: 1000 Kilograms
-
0.60mm Enameled Aluminum Transformer Winding WireUS$ 2.5 - 3.5MOQ: 1000 Kilograms
-
0.55mm Enameled Aluminum Magnet WireUS$ 2.5 - 3.5MOQ: 1000 Kilograms
-
180 C Enameled Aluminum Transformer Winding WireUS$ 2.5 - 3.5MOQ: 1000 Kilograms

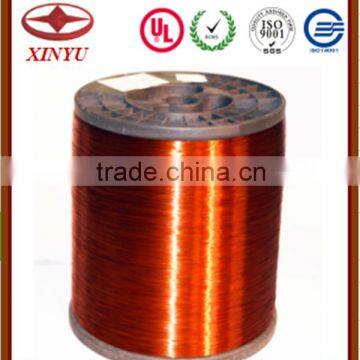

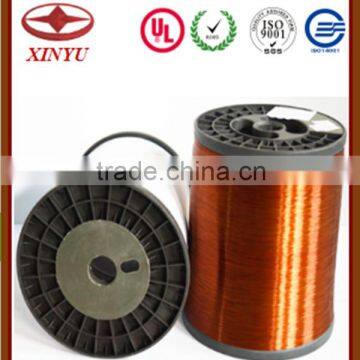

Product:Enameled aluminum wire(EAL)
Diameter:Enameled aluminum wire:0.20-3.2mm
Insulation material:Polyester,Polyurethane,Polyester-imide
Model:QZ(PEW),QA(UEW),QZY(EIW)
Grad:130,155,180,200,220
Insulationg tickness:0.007-0.14mm
Core number:one
Shape materials:Round
Elongation:>15%
Tensile strength:130-150Mpa
Paint:1730,1736,1745,1754
Packing:Carton
Certifications:
Advantages of EAL:
1. Compared with the copper enameled wire, enameled aluminum wire is easier to winding, also there is asolid
oxide film on the surface of enameled aluminum wire, which make it has a good insulating effect, a long life.
2. Due to the good insulating effect of aluminum film layer, it's heat-resistant temperature can be 20 degrees higher
than the copper wire;
3. The greatest benefit of using aluminum is that it is 1 / 3 lighter than copper which significantly lower the production
costs, second it can attach to the solids easily, and third it can also reduce the freight and transportation during the
operation.

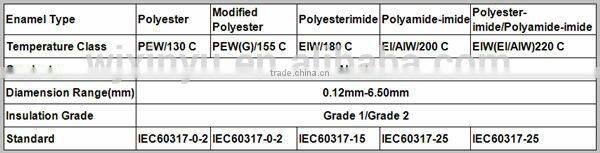

Product Range:

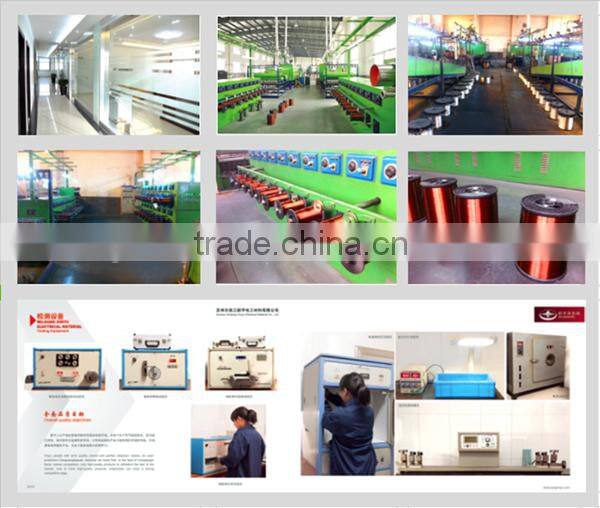

Production Line:

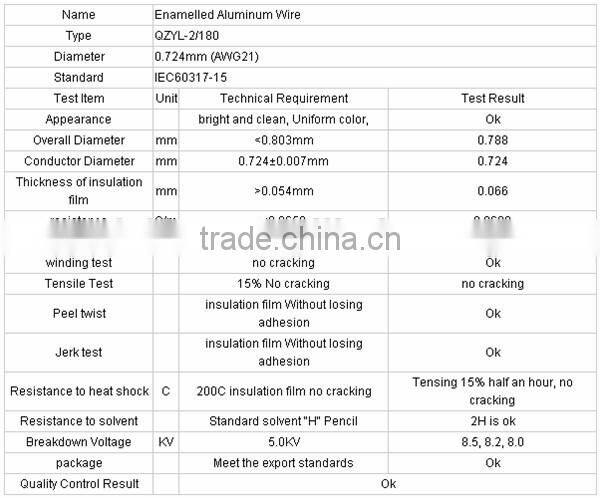

Testing Report:

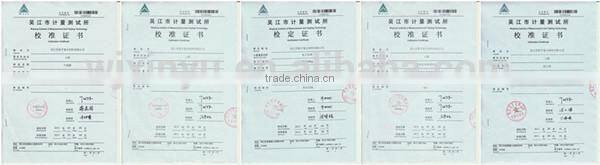

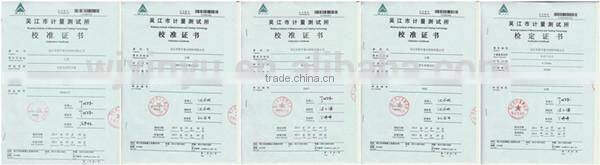

Inspection Equipment Calibration:

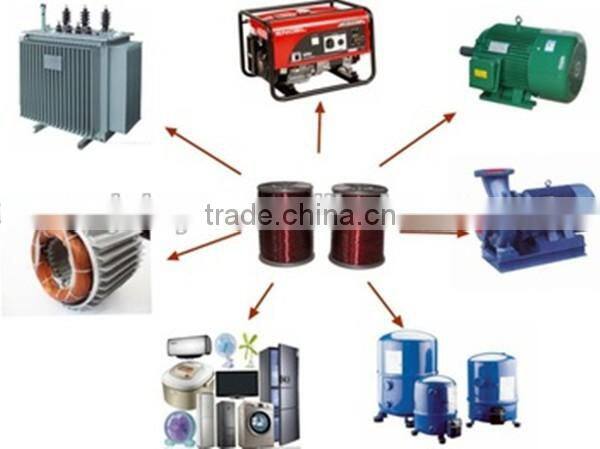

Application feilds:
1.Used in production of light weight, relatively high conductivity, heat resistance and good windings, especially
the transmission of high frequency signal windings;
2.Used in magnet wires of high-frequency voltage devices, common transformers, inductance coils, electromotors,
household appliance, electrical tools and micromotors;
3.Used in ballasts, automotive electronics, refrigerator, microwave oven, air conditioner compress, communication
tools, instruments, generators, electromotors, etc.

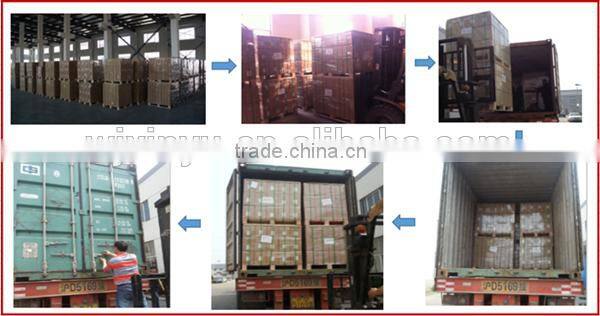

Packaging & Shipping:
FAQ:
Q. What's you MOQ?
Our MOQ is 500kg for each size but it is adjustable.
Q. Is sample available?
Yes, sample is available for testing and can be sent within 3 days.
Q: What is the wire diamention you can produce?
We can produce enameled wire from 0.18mm to 6.0mm.
Q: What's the temperature-resist grade of your enameled aluminum wire?
A: We produce the thermal class of 130/155/180/200/220 Centigrade.
Q: What's your company 's product scope?
Enameled aluminum wire
Enameled copper wire
ECCA wire(enameled copper clad aluminum wire)
Q: How about your company's annual production capacity?
A: Our Company's annual production is about 7,000 tons
Q: How about your production experience in enameled wire?
A: We are experienced in enameled wire production since 2003.
Lead time/Packing
Lead time: within 15 days for each 20' container after received the advanced payment
Packing: wooden box or cartons as your requrements.
MOQ: 1 ton
Delivery port: Shanghai or Ningbo

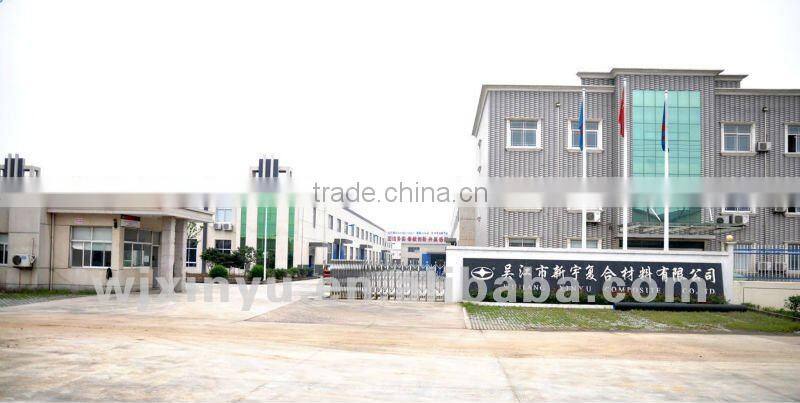

Suzhou Wujiang Xinyu Electrical Material Co., Ltd
We are the professional enamel wire manufacturer in Jiangsu province, China. We have over 10 years history and now have 130 workers, 30 administrative staff, nearly 10 technicians have worked in this industry for about 20 years. The strict control in production process and quality control keep our factory continuous growing in the past years.
Trust us, we are the most reliable supplier! Your inquiry will be replied within 8 hours! We looking forward to establish long term and stable business cooperation with you.
Our working time is from 8:00 am to 19:00 pm.
Mobile: 0086-18761930046
Skype: vivian.leng06
Any question, please feel free to contact us!
