Plastic winding machine
Single wheel rolling machine
The machine is suitable for winding of medium size and small size plastic pipes. It is used together with extruding machine, setting platform and drawing machine, Plastic pipes can be directly wind and rolled after the drawing machine, which avoids inconveniences without winding.

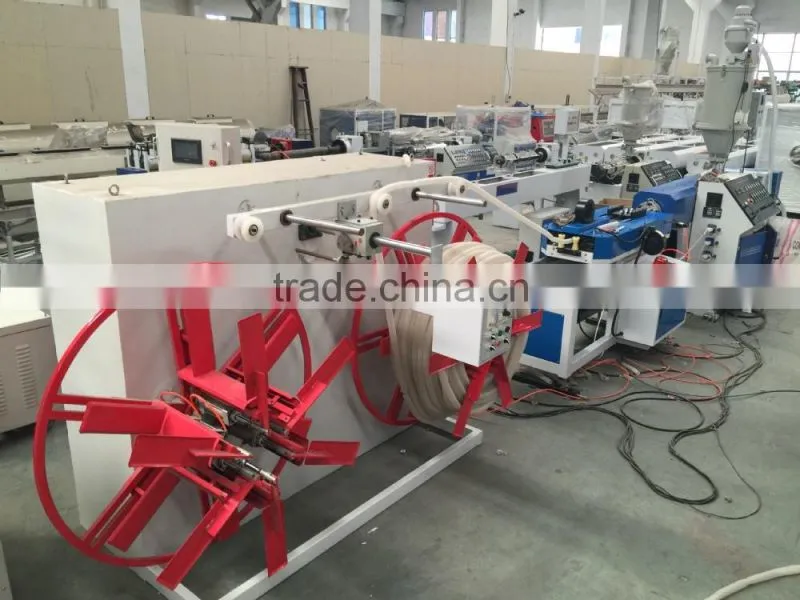

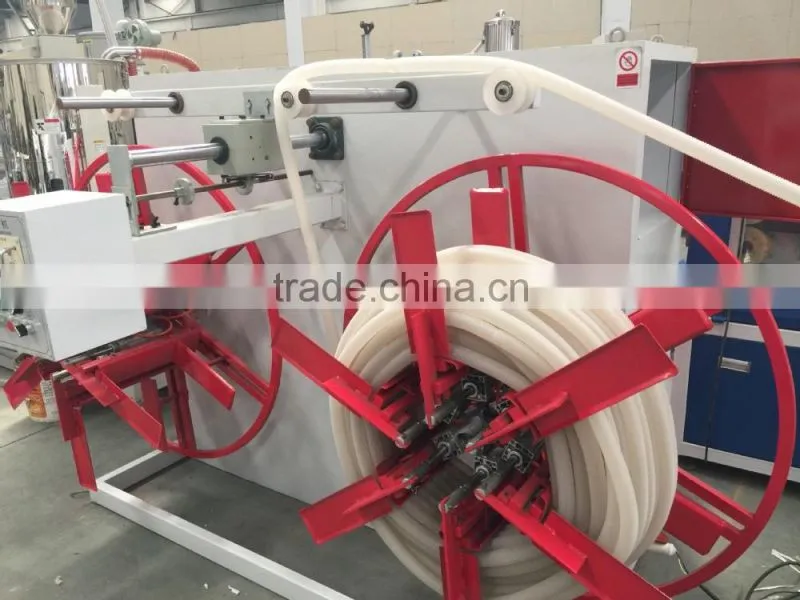

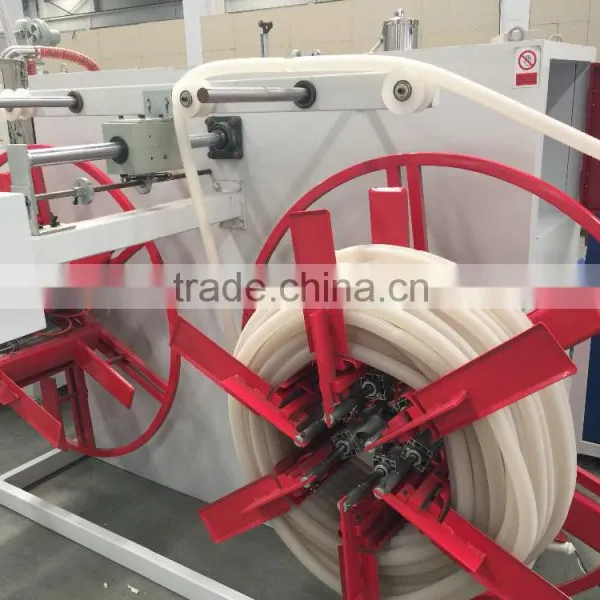

Double wheels rolling machine
This unit is suitable for rolling or packing of such plastics as drawn PE pipe, nylon pipe, wave-shaped pipe, terrestrial heat pipe, aluminum-PE compound pipe, cross linked compound pipe and plate material. It has applied automatic rolling which can adjust rolling speed and tension. It has applied two wheels alternative rolling so as to guarantee continuous production.
It has applied pneumatic opening and draw-in, together with smooth bar line arrangement device. Line arrangement is automatic and even, rolling is tidy. The whole machine has compact structure, high automation level, beautiful appearance and convenient operation.
Model |
SPS1200 |
SPS1600 |
SPS2200 |
Winding diameter |
500-1000mm |
550-1500mm |
800-2000mm |
Winding speed |
0.5-40m/min |
0.5-40m/min |
0.5-40m/min |
Winding width |
300-500mm |
300-500mm |
300-500mm |
Winding pipe diameter scope |
Ø16-40mm |
Ø16-63mm |
Ø63-110mm |
Air pressure |
0.6mpa |
0.6mpa |
0.6mpa |
Torque motor |
10N.M |
10N.M, 25N.M |
25N.M x 2 |
Dimension (mm) |
2800×1700×1800 |
3000×2800×2000 |
3000×3200×20010 |
Weight |
750kg |
1100kg |
1500kg |
Reason for chosing our mahcine
1. Our factory is located in Jiangsu Zhangjiagang which is nearby Shanghai.
2. We are specialized in all kinds of plastic machines, and we have been in this area for many years so we have a rich experince, we can solve most trouble other factory can not.
3. With wide experience, we can design machine for you which will not change its quality.
4. To expend foreign market and seeking for long term cooperation, we will give you a very cheap price.
Plastic winding machine
Zhangjiagang Friend machinery Co.,LTD is a national fixed-point enterpricse specialized in plastic machinery research and development, production and sales. The company has introduced advanced domestic and international technology, pay attention to technology reform, and constantly develop new product. The main products is: All kinds of extruder, pipe/sheet/profile/board production line, plastic recycling mahcine, crusher, mill, pulverizer etc.
Zhangjiagang Friend machinery Co.,LTD will unremitting efforts to achieve in technology and service in the future self improvement, and more to create and to provide customers the best products of real value, with first-class technology, flass-class produts and first class service to our customer side by side to meet the beautiful future.
