Home > Products > Sheet and Board Production Line > LDPE/LLDPE blowing film extrusion line/production line/making machine
LDPE/LLDPE blowing film extrusion line/production line/making machine
- 90 Set / Sets per Month
- shanghai
- T/T D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Film | Plastic Processed: | Other, PVC/TPU/TPO/LDPE/LLDPE |
Screw Design: | Single-screw | Automatic Grade: | Automatic | Place of Origin: | Jiangsu, China |
Brand Name: | Friend | Model Number: | SJ | Voltage: | 380V 50HZ or required |
Power(W): | 11-55KW | Dimension(L*W*H): | CAPACITY | Weight: | 3t |
Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

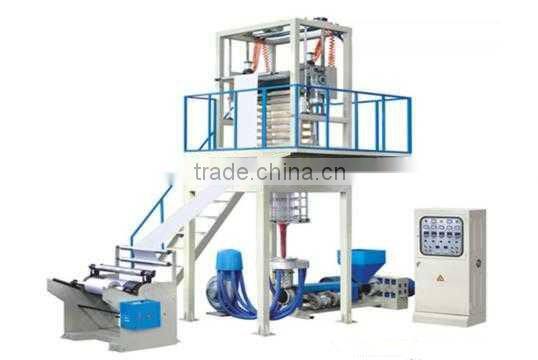

LDPE/LLDPE blowing film extrusion line/production line/making machine
High and low-pressure polyethylene dual-purpose film blowing machine unit is used to blow various plastic films such as low-density polyethylene (LDPE), high-density polyethylene (HDPE) and linear low-density polyethylene (LLDPE). The films can be widely applied to packaging for industrial products, textiles, apparel and food and agricultural coverage. The cylinders and screw rods of extruders in mentioned models are all made from high-quality alloy steel through precision machining and nitriding, so as to ensure optimal hardness and corrosion resistance. The auxiliary extruder is provided with a platform rail worktable to be operated more conveniently. The winding device adopts torque motor as the power to keep suitable tension, orderly winding and convenient roll replacement.
Main Technical Variables:
Model | SJ-50/FM600 | SJ-55/FM800 | SJ-60/FM1000 |
|
Screw diameter(mm) | Φ50mm | Φ55mm | Φ60mm |
|
Screw L/D Ratio | L/D28:1 | L/D28:1 | L/D28:1 |
|
Screw speed | 10-100r/min | 10-100r/min | 10-100r/min |
|
Power of main motor | 11kw | 15kw | 18.5kw |
|
Max. Output | 35kg/h | 50kg/h | 65kg/h |
|
Film thickness | 0.006-0.10mm | 0.006-0.10mm | 0.006-0.10mm |
|
Film Folding width | 600mm | 800mm | 1000mm |
|
Total Power | 18kw | 22kw | 28kw |
|
Machine of weight | 2800kg | 3200kg | 3800kg |
|
Overall Dimension(L×W×H) | 4200×1800×3600mm | 4400×2000×3800mm | 4600×2300×4500mm |
Contact Us
- Zhangjiagang Friend Machinery Co., Ltd.
- Contact nameWei Yuan
- Phone86-512-58551998, 18901568633
- AddressNo. 3, Jinle Road, Jinfeng Town
