Specifications
1. Machine make plastic boards2. Easy operation
3. Long service time
4. CE
Machine make plastic boards
Application
With special designed screw ,barrel, mould and producing process WPC board production line can produce various thickness of wpc board which can be used in different areas such as door, window, floor etc.
Features
1. With scientific and reasonable technology,the machine has high efficiency and runs stably
2. This production line can produce wpc products of different specifications only to change mold.
3. The production is smooth and hard.
Technical parameters
Machine make plastic boards
Model for extruder |
SJSZ80/156 |
SJSZ92/188 |
Rotational speed (r/min) |
1-38 |
1-32.9 |
Main extruder power (kw) |
55 |
110 |
Heating power (kw) |
36 |
45 |
Extrusion output (kg/h) |
100-400 |
400-500 |
Max. product wide (mm) |
1220 |
1830 |
Draw-off speed (m/s) |
0-3 |
0-2.5 |
Thickness(mm) |
<30 |
<30 |
Configuration
Machine make plastic boards
NO. |
Name |
Quality |
1. |
Spring feeding machine |
1set |
2. |
SJSZ Double Screw Plastic Extruder |
1 set |
3. |
Mould |
1 set |
4. |
Vacuum calibrating table |
1 set |
5. |
Haul-off machine |
1 set |
6. |
Cutter machine |
1 set |
7. |
Stacker |
1 set |
1. We provide one year warranty for all the accessories free.
2. We not only provide machines but also offer technical guide and market evaluate
All the machine will be packed by standard wooden box.

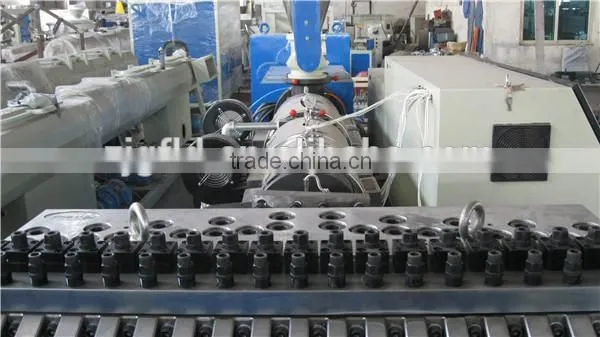

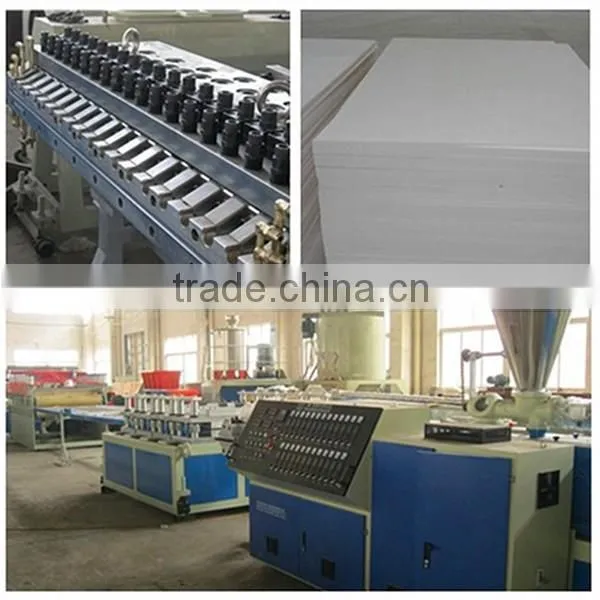

Detailed pictures
Machine make plastic boards

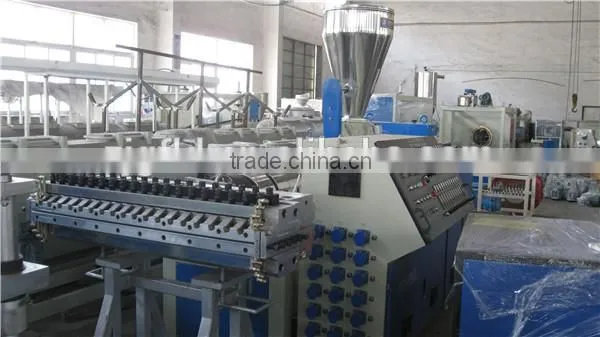

SJSZ Double Screw Plastic Extruder
Mould

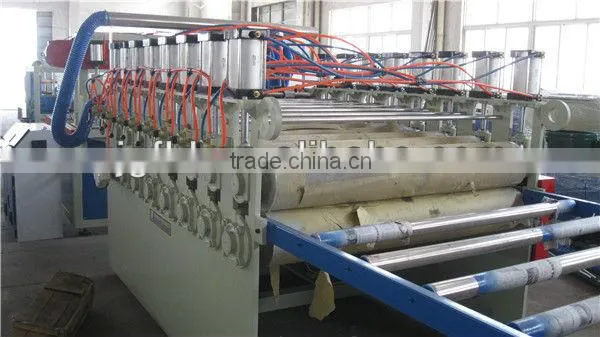

Haul-off machine
Cutter machine
Zhangjiagang Friend machinery Co.,LTD is a national fixed-point enterprise specialized in plastic machinery research and development, production and sales. The company has introduced advanced domestic and international technology, pay attention to technology reform, and constantly develop new product. The main products is: All kinds of extruder, pipe/sheet/profile/board production line, plastic recycling machine, crusher, mill, pulverizer etc.
Zhangjiagang Friend machinery Co.,LTD will unremitting efforts to achieve in technology and service in the future self-improvement, and more to create and to provide customers the best products of real value, with first-class technology, flass-class products and first class service to our customer side by side to meet the beautiful future.
1. Question: If I need the machine urgently, what will you do?
Answer: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.
2. Question: If my machine can not work when I receive it, what will your factory do?
Answer: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
3. Question: If my machine is broken within one year, what your factory will do?
Answer: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.
