Specifications
1. WPC board machine2. Wide: 1220-1830mm
3. Thickness: 5-30mm
4. ISO, CE
Wpc board machine
Application
With special designed screw ,barrel.moule and producing process WPC board production machine can produce various thickness of wpc board which can be used in different areas such as door, window, floor ect.
Featrres
1. The production is smooth and hard.
2. This production line can produce wpc products of different specifications only to change mold.
3. With scientific and reasonable technology,the machine has high efficiency and runs stably.
Main technical parameters
Model for extruder | SJSZ80/156 | SJSZ92/188 |
Rotational speed (r/min) | 1-38 | 1-32.9 |
Main extruder power (kw) | 55 | 110 |
Heating power (kw) | 36 | 45 |
Extrusion output (kg/h) | 100-400 | 400-500 |
Max. product wide (mm) | 1220 | 1830 |
Draw-off speed (m/s) | 0-3 | 0-2.5 |
Thickness(mm) | <30 | <30 |
System configuration
NO. | Name | Quality |
1. | Spring feeding machine | 1set |
2. | SJSZ Double Screw Plastic Extruder | 1 set |
3. | Mould | 1 set |
4. | Vacuum calibrating table | 1 set |
5. | Haul-off machine | 1 set |
6. | Cutter machine | 1 set |
7. | Stack | 1 set |

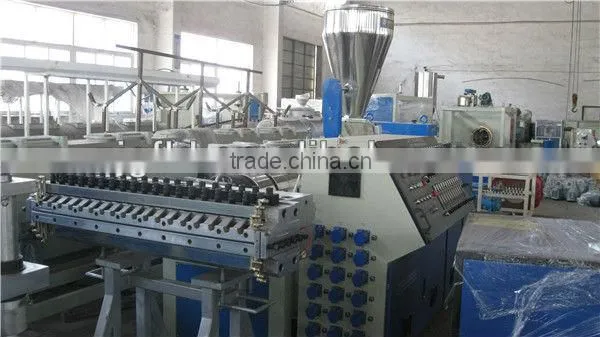

Detailed pictures

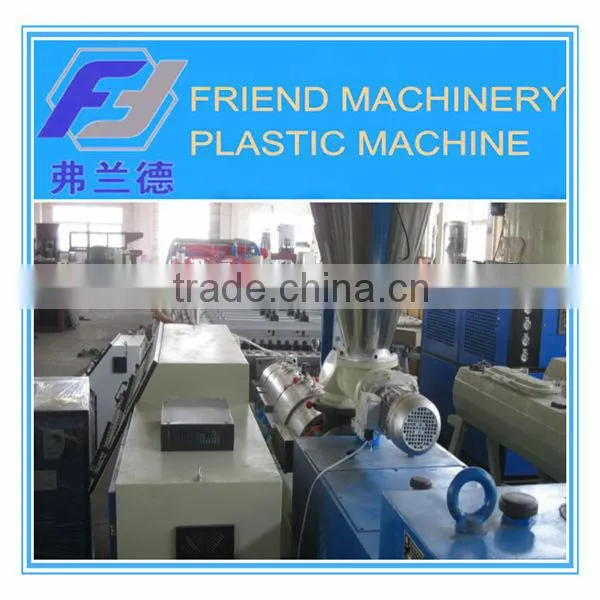

SJSZ Double Screw Plastic Extruder

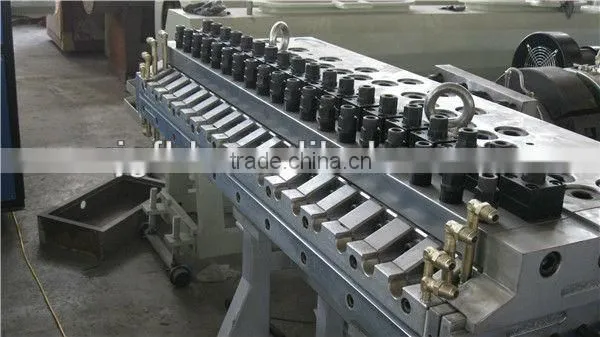

Mould

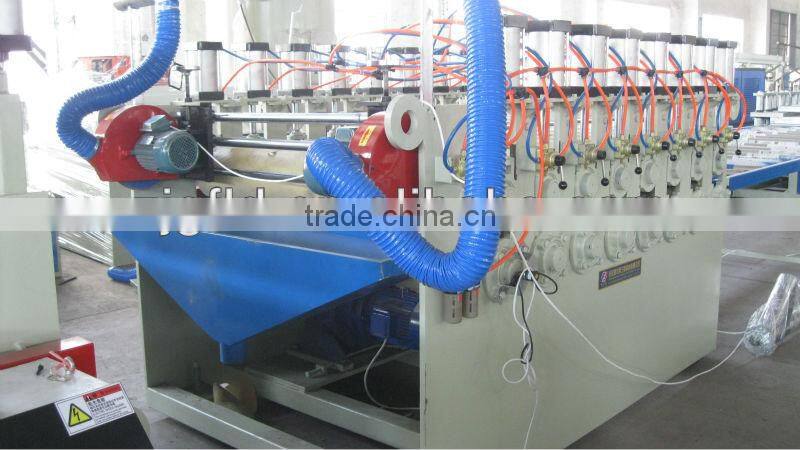

Haul-off machine

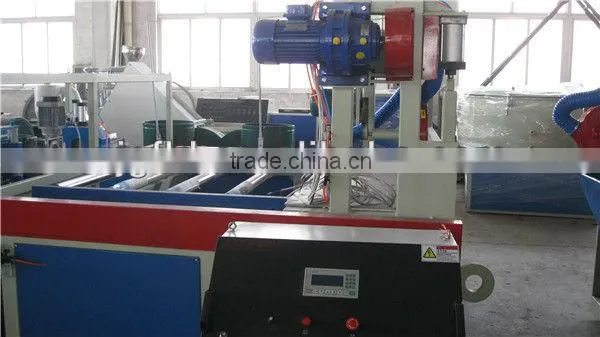

Cutter machine
Certification

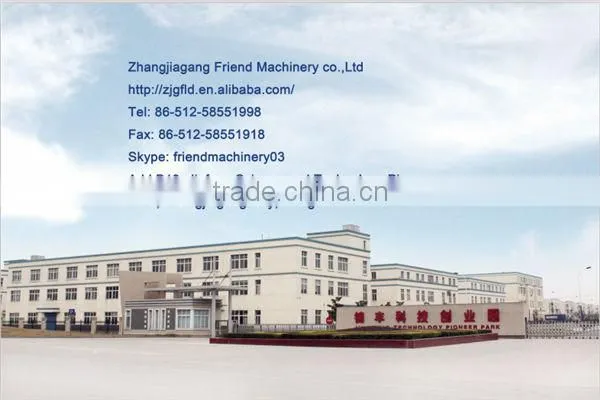

Company
Zhangjiagang Friend machinery Co.,LTD is a national fixed-point enterprise specialized in plastic machinery research and development, production and sales.
