Specifications
WPC profile and board production line1.stable and safe operation
2.automatic control system
3.lower consumption

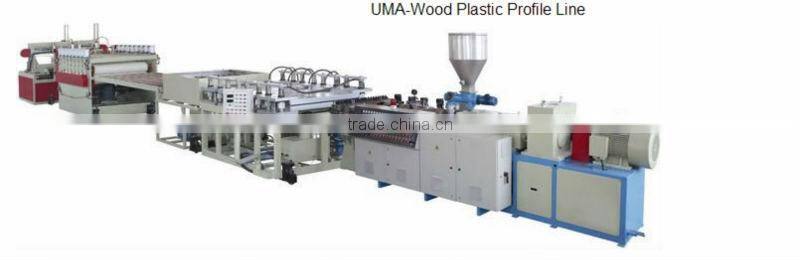

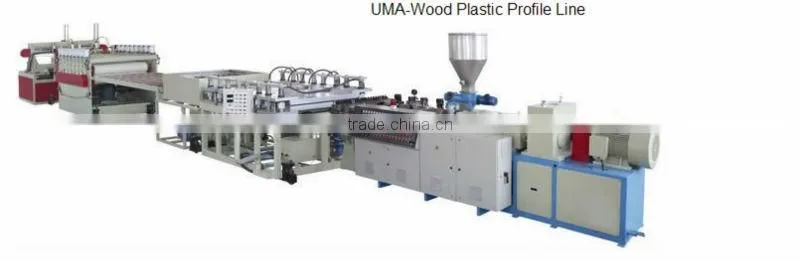

WPC profile and board production line
The machine chart

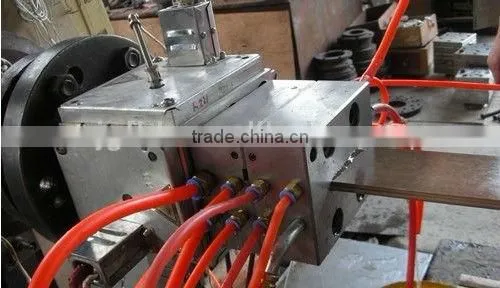

automatic feeding machine --------SJSZ conical twin screw extruder --------mold and head (mold temperature control box)---------sizing and forming device ( water cooling equipment )----------- haul off machine with side cutting device)----------cutter ------------finnal board product holder.
Feature
1) High quality; Reasonable design; Excellent manufacture; Fine material sorting; Wear well
2) Reasonable craft: Feed plastic and wood powder (after treated) separately and correctly which avoid layering phenomenon and mass defect because of different ratio of plastic and wood powder
3) Extruder and haul-off synchronistically apply PLC pressure closed loop control: Haul off speed up when increase the pressure thus insure stable pressure and quick pull apart.
4) High efficiency: Fine mixing and plasticizing effect, fine liquidity and extrude quickly, high efficiency
5) High fillings: Fine mixing and plasticizing effect, high decentralization, high addition (fillings of plant fiber 70-80% ), low cost
6) Low energy consumption: No need of drying granulation, obviously can save energy (compared with other equipment, it can save 50% of energy)
7) Long useful life: The barrel and screw components are made of special material and with special treatment. Long useful life (15000 hours).
8) Widely applicable: Can be used to produce PP, PE, PVC, ABS, PS and various plant fibers
The machine chart

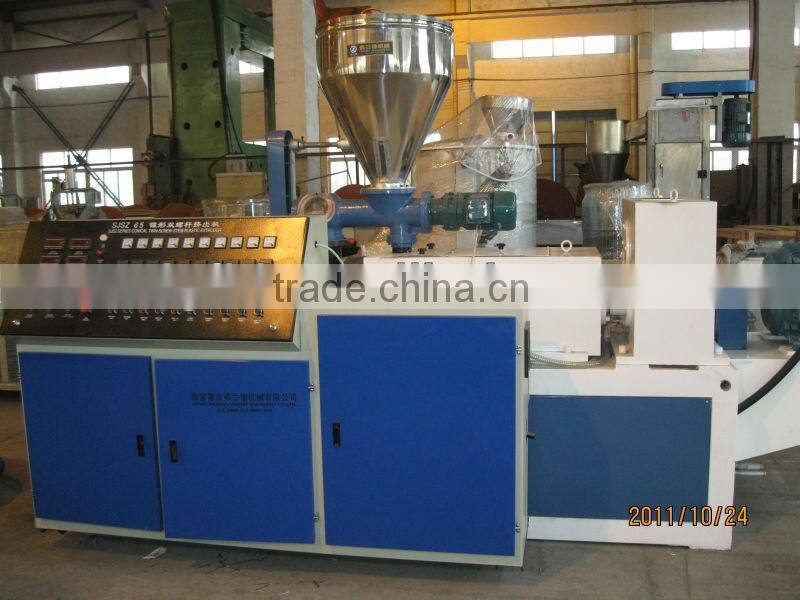

1.SJSZ conical twin screw extruder
2.forming device
3.tractor
4.timber dapper
5.upender
Extruder model |
SJZ55/110M |
SJZ65/132M |
SJZ80/156M |
SJZ92/188M |
||
Main motor power |
22 |
30 |
55 |
110 |
||
Down-stream equipment model |
YF 240S |
YF240A |
YF300A |
YF600 |
YF900 |
YF1200 |
Product width |
Max240 |
Max240 |
Max300 |
Max600 |
Max900 |
Max1200 |
Vacuum pump |
2 x5.5 |
4 x5.5 |
4 x5.5 |
4 x5.5 |
1 x7.5 2 x11
|
1 x7.5
|
Water pump |
1.5 |
4 |
4 |
7.5 |
7.5 |
7.5 |
Haul-off speed |
0-5 |
0-5 |
0-5 |
0-3 |
0-2.5 |
0-2.5 |
Down-stream equipment power |
22 |
35 |
35 |
44 |
52 |
62 |
output |
100 |
180 |
180 |
220 |
220 |
500 |
IF you customer have interest in the profile extrusion line ,please let me know your final product size and capacity requirements ,then the reasonable offer and price could be provided .
