Specifications
mobile phone adhesive1.translucent liquid
2.Seal the smart phones
3.50ml/bottle
4. use with uv lights achieve better result
Big Promotion 2014 Kafuter K-3670 loca glue lcd adhesive mobile phone adhesive

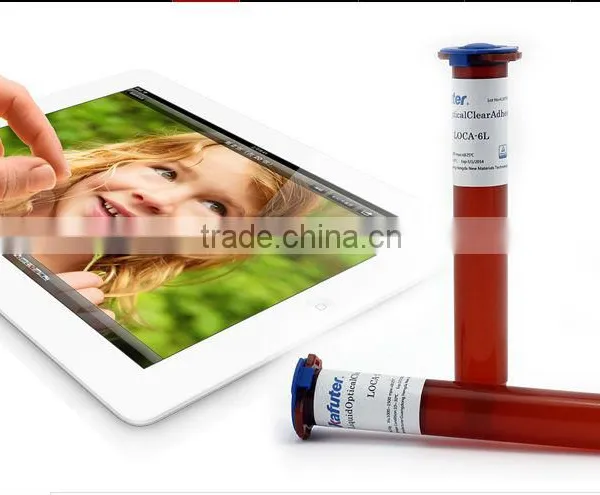

Kafuter LOCA liquid optical clear adhesive is a professional high tansparency UV adhesive mainly sealing the LCD, LCD Panels, touch screen in IPHONE,
SAMSUNG, HTC, etc.
It used to seal the broken touch screen(>4 inch), glass panel, and liquid crystal display, etc.
FEATURES:
a.Good flexibility: Impact resistant, no cracking after touch screen jointing
b.Low shrinkage: no water mark around the touch screen after cured.
c.Good UV resistant: high transparency up to 99.9%, no yellowing after cured.
d.No acid: no corrosion to ITO and ink mark
e.No solvents: no bubble volatile if solvents residue in the screen
f.Good heat resistant: no floating and fogging as long time usage
UNCURED PROPERTIES
ITEM |
K-3670 |
Appearance |
Transparent liquid |
Specific Gravity (25°C, g/cm3) |
0.93±0.02 |
|
Viscosity (25°C, mPa.s) Brookfield DV-Ⅱ, 150rpm, SC 4-15 motor |
1400~1800 |
Refractive Index 25°C |
1.48 |
CURRING PROPERTIES
Optical Absoprtion, mJ/cm2 |
> 2000 |
CURED PROPERTIES
ITEM |
PROPERTIES |
Durometer, GB/T 531-1999, Shore A |
5~15 |
Shrinkage, ISO 3521, %, |
< 2 |
Transparency, ASTM E903, % |
> 99 |
Shear strength GB 7124-86 |
|
Glass/Stainless steel, MPa |
1.1~2 |
Glass/Glass, MPa |
1.1~2 |
Glass/Acrylic, MPa |
0.2~0.3 |
Glass/PC, MPa |
0.1~0.2 |
AGING PROPERTIES |
|
Yellowing , ASTM D1925 |
< 1 |
Cold &Hot Impact,(-30°C,~ 80°C, 60min, 120 rounds) |
No Obvious change |
Water Stewing, 24hr |
No Obvious change |
Hot&Mosture Testing, 60°C, 90RH, 240hr |
No Obvious change |
Electric Corrosion Testing, 12V DC Power 480hr |
No corrosion to ITO |
DIRECTIONS:
1.Coating the glue on the sensor.
2. Rolling over the glass panel, joint and assemble the parts under vacuum situation.
3. First use uv lamp for few seconds let it pre-cured. After all set up, use UV lamp to full cure in 10 mins.
4. Pls check the result, if it can not meet your needs, rework and clean it by using removal glue K-3101 and cleaning glue K-3102.
Removal glue K-3101: let glue lose its adhesion.
Cleaning glue K-3102: can wipe off the LOCA adhesive.
1. packaging: 50ml/bottle, 30 bottle/carton
2. Shipping: can deliver by air/ship
3. The copperated EXPRESS: EMS/HKEMS/TNT
4. The samples take 3~7 days after received the payment.
5. Payment terms: paypal/western union/T/T, etc.
NOTE:
This product is light sensitive, exposure to daylight, UV light and artificial lighting should be kept to a minimum during storage and handling.
Store in shade and dry place
Optical Storage: 10~20 °c
Shelf Life: 6 months
