Specifications
Hot Sale-Plastic Extruder1.can produce pvc,pp,pe and many kinds pipes,profiles and so on.

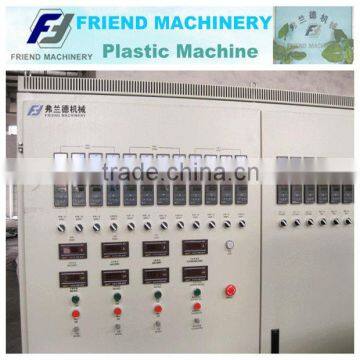

2.PLC Control.
3.Cn save energy.
Hot Sale-Single and Double Screw Plastic Extruder
1.Simple Description:
SJ single screw extruder is mainly used to process PP, PE, PP-R, ABS and other plastics. Equipped with auxiliary machines, it can manufacture profiles, pipes, sheets, granulations and other plastic products.

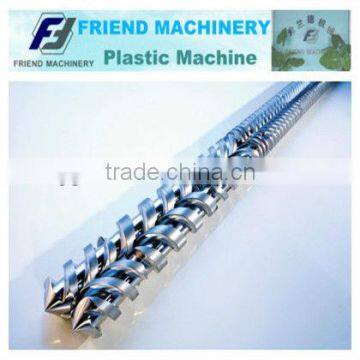

Model SJSZ series twin conical screws extruder is a kind of special equipment for extruding of PVC powder. With different sorts of molds and auxiliary machines, it can produce all sorts of PVC plastic pipes, profiles, plates, sliced material, bar material and granules.
2.The Characteristic of Plastic Extruder:
1. It adopts Electro-magnetic Heating System which can save 40% to 60% Electric power.
2. High speed, high production capacity of extrusion on the high quality basis. Lower temperature plasticizing design; ensure high quality extrusion.
3. High shear and low melting plasticizing temperature ensure material high performance extrusion.
4. Unique grooved structure feed bush with force cooling system that can increase output at 15-20%.
Model No. Double Screw Extruder SJSZ45 |
SJSZ51 |
SJSZ65 |
|
Screw Diameter |
45/90mm |
51/105mm |
65/132mm |
Screw Material |
38CrMoAlA |
38CrMoAlA |
38CrMoAlA |
Hardness of Screw |
HV800-900 |
HV800-900 |
HV800-900 |
Depth of Nitrogen Treatment |
0.4-0.7 mm |
0.3-0.7mm |
0.3-0.7mm |
Screw Straightness |
<0.015 mm |
<0.015 mm |
<0.015 mm |
Main Motor Power |
18.5KW |
18.5KW |
22KW |
Heating Method |
Casting Aluminum Heater |
Casting Aluminum Heater |
Casting AluminumHeater |
Heating Zones |
4 Periods |
4 Periods |
4 Periods |
Heating Power: |
12KW |
16KW |
24KW |
Cooling Method: |
Forced Air Cooling |
Forced Air Cooling |
Forced Air Cooling |
Cooling Zone |
3Zones |
3 Zones |
43Zones |
Fan Motor Power |
180W*3=0.54KW |
180W*3=0.54KW |
250W*3=0.75KW |
Feeding Motor Power |
0.75KW |
0.75KW |
1.1KW |
Vacuum Pump Power |
1.5KW |
1.5KW |
2.2KW |
Screw Maximum Rotating Speed |
1-39rpm |
1-37rpm |
1-36.9Rpm |
Maximum Capacity |
10-50kg/h |
50-150kg/h |
150-200kg/h |
Central Height |
1000mm |
1000mm |
1000mm |
Gear Box |
Hard Tooth Face |
Hard Tooth Face |
Hard Tooth Face |
Dimension |
3360*1290*2127mm |
3611*1100*2100mm |
3620*1050*2157mm |
|
1.2T |
2.5T |
3.5T |

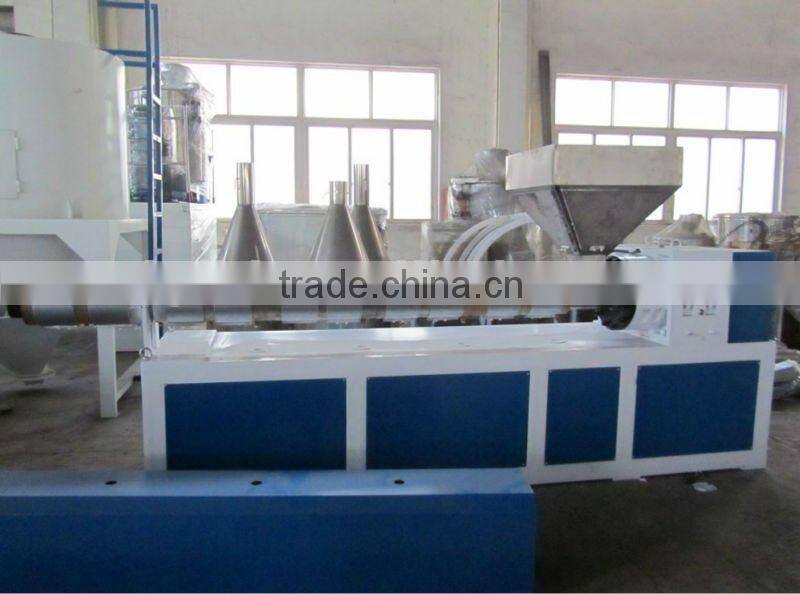

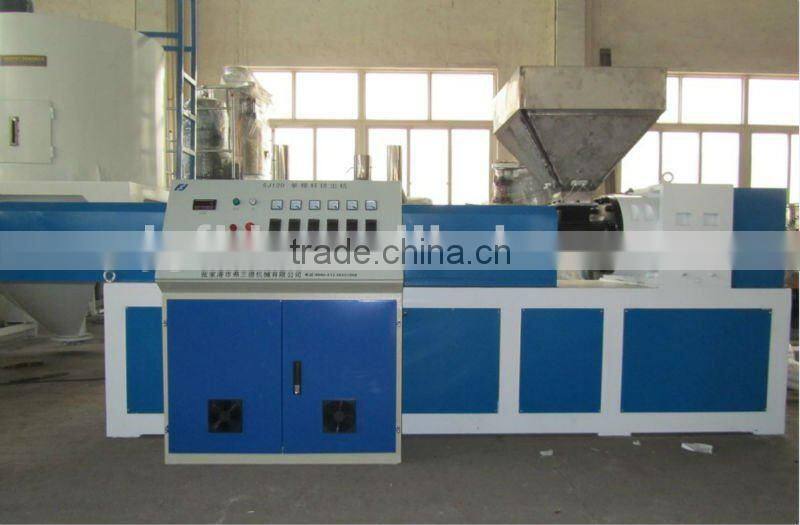

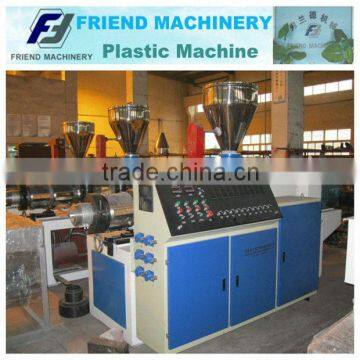

SJ 120single screw extruder

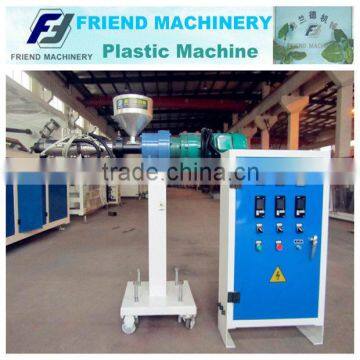

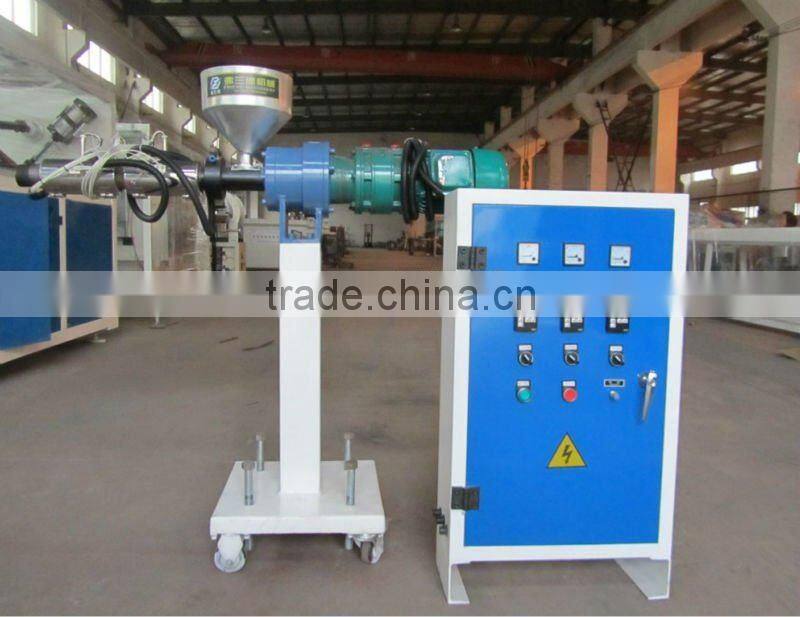

SJ 25 single screw extruder

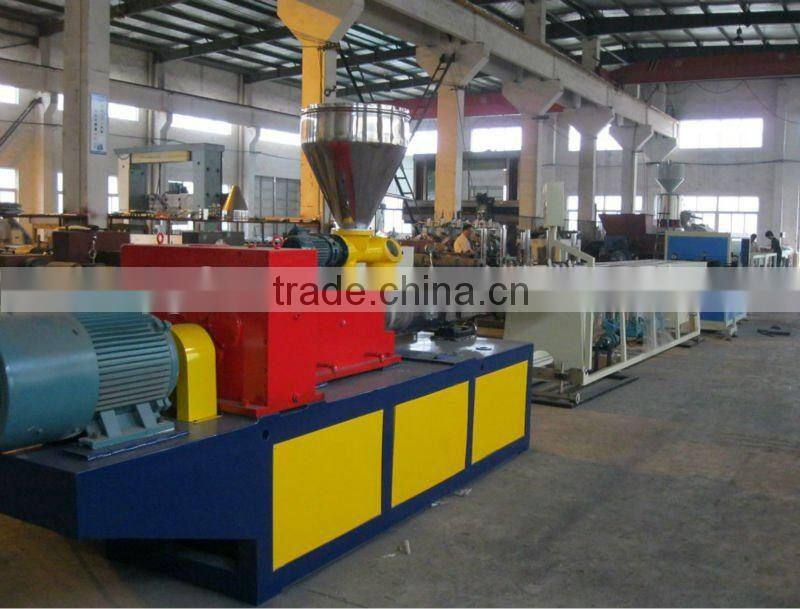

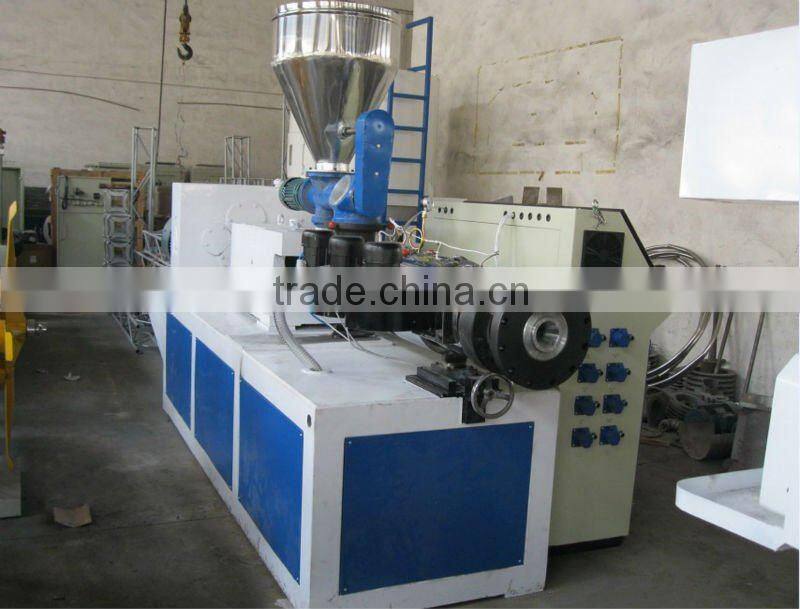

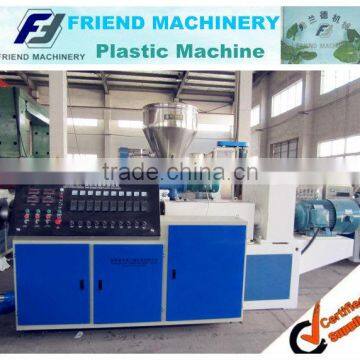

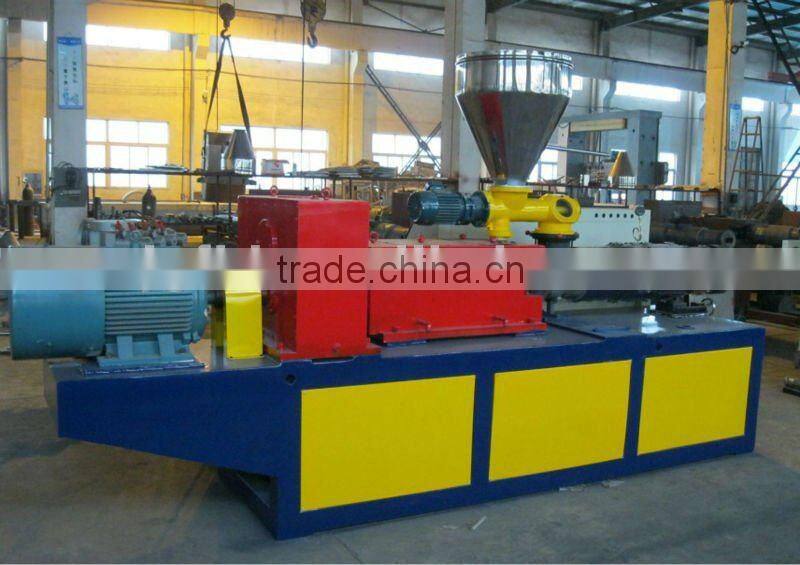

SJSZ Double Screw Extruder
