Specifications
Conical Twin-screw Plastic Extruder1:competetive price
2:good quality
3: long service life
Plastic Extruding Machine

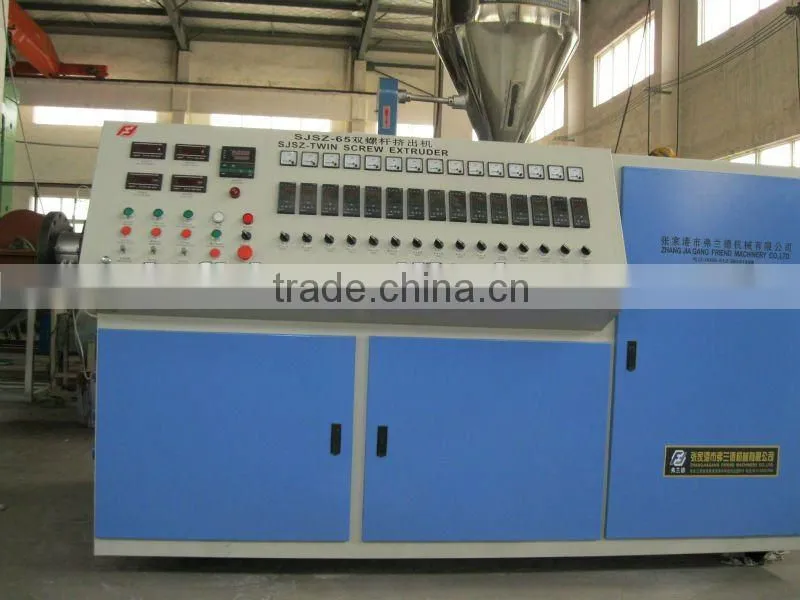

SJSZ Series Twin-Screw Plastic Extruding Machine
Features and Application:
The series Extruders Coordinated with the appropriate moulds and auxiliary machines can directly convert thermoplastic
expecialy PVC powder into Pipe,plate sheet,film and profile,and also completed function of plastic modifying and powder
material pelleting.
The extruders drivd by D.C motor,SCR controlled stepless speed regulation.It equiped with the overload protection and
stoppage alarmingsystem,And loaded with the vacuum exhaust and force feeding machine.
Technical Parameter:
Model |
SJSZ-45 |
SJSZ-51 |
SJSZ-65 |
SJSZ-80 |
SJSZ-92 |
|
Diameter of screw(mm) |
45/90 |
51/105 |
65/132 |
80/156 |
92/188 |
|
Number of screw |
2 |
2 |
2 |
2 |
2 |
|
Direction of screw |
Screw rotation direction |
|||||
Screw rotation speed(rpm) |
1-37 |
1-32 |
1-34.7 |
1-36.9 |
1-32.9 |
|
Effective length of screw(mm) |
985 |
1085 |
1450 |
1800 |
2500 |
|
Power of Main engine(kw) |
15 |
18.5 |
37 |
55 |
90 |
|
Barrel heating power(kw) |
12 |
18 |
24 |
36 |
86.8 |
|
Production capacity(kg/h) |
30-60 |
50-120 |
80-250 |
320-450 |
500-600 |
|
Center hight(mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Net weight(kg) |
2800 |
3200 |
4000 |
5000 |
10000 |
|
Dimensions(mm)(L*W*H) |
3000*1050*2157 |
3620*1050*2200 |
4235*1520*2450 |
4750*1550*2460 |
6725*1550*2841 |
|
