Pneumatic Fittings (MP Series)

Specifications

IDST is a professional manufacturer of hydraulic quick couplings, pneumatic quick couplings and pneumatic fittings. The company has passed ISO9001:2000 quality management system certification. The product line of pneumatic fittings contain the metal push-in fittings rapid pneumatic fittings, rapid pneumatic fittings for plastic tubes, banjo pneumatic fittings, etc.

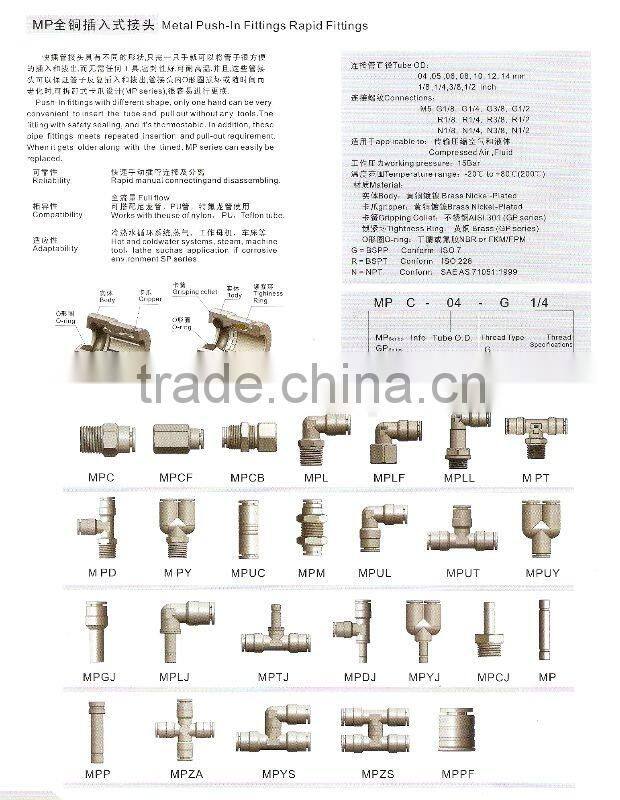

Metal Push-In Fittings Rapid Fittings

Tube OD: 04, 05, 06, 08, 10, 12, 14 mm,

                1/8, 1/4, 3/8, 1/2 inch

Connections: M5, G1/8, G1/4, G3/8, G1/2,

                      R1/8, R1/4, R3/8, R1/2,

                      N1/8, N1/4, N3/8, N1/2

Material:

Body: Brass Nickel-Plated

Gripper: Brass Nickel-Plated

Gripping Collet: AISI 301 (GP Series)

Tightness Ring: Brass (GP Series)

Push-In fittings with different shape, only one hand can be very convenient to insert the tube and pull out without any tools. The fitting with safety sealing, and it's thermostable. In addition, these pipe fittings meets repeated insertion and pull-out requirement. When it gets older along with the timed, MP series can easily be replaced.

Features:

• Reliablility: Rapid manual connecting and disassembling
• Comatibility: Works with the use of nylon, PU, Teflon tube.
• Adaptability: Hot and cold water systems, steam, machine tool, lathe suchas application if corrosive environment SP series.
