plastic film crusher to small piece agglomerator
- 5 Set / Sets per Month
- shanghai
- T/T Credit Card
- Mini to big scale waste plastic pyrolysis machine recycle scrap plastic to fuel oil pyrolysis plant
- Environmentally friendly waste plastic to fuel oil pyrolysis machine
- Henning Saint recycling color sorting equipment
- Henning Saint plastic color sorter
- Hot sale plastic granules making machine eps recycling machine eps foam granulator machine PE pellet production line
- waste foam plastic melting machine foam plastic board hot melter
Product Details
Condition: | New | Place of Origin: | Jiangsu, China | Brand Name: | FRIEND |
Model Number: | TLJ | Dimension(L*W*H): | It depends | Certification: | ISO, CE |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
PE plastic film die face cutter
Application

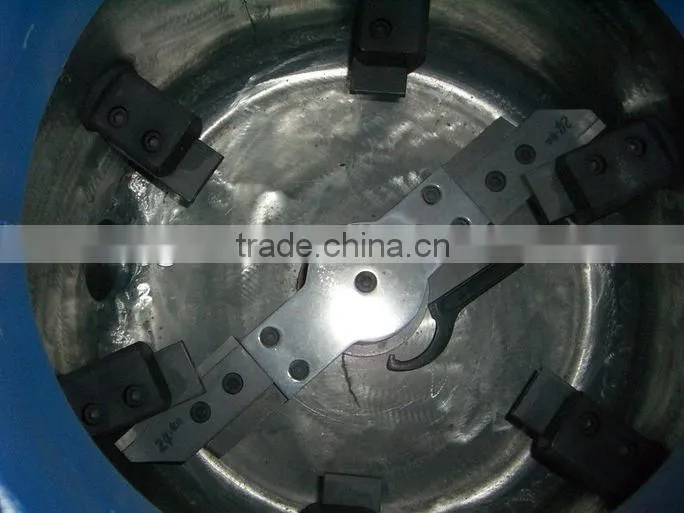

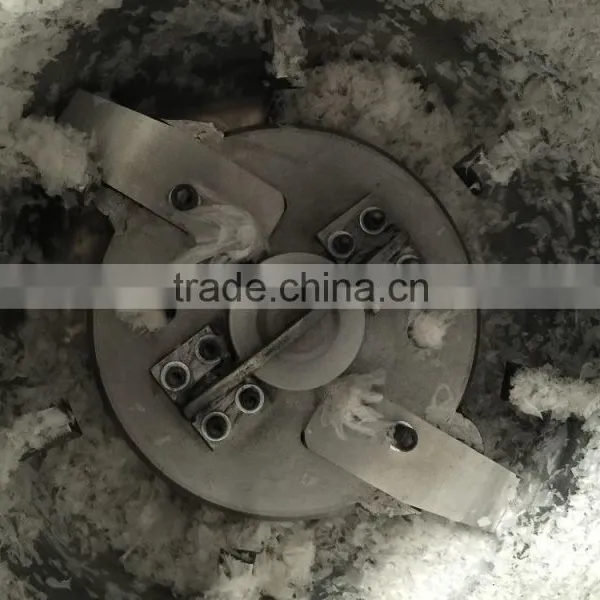

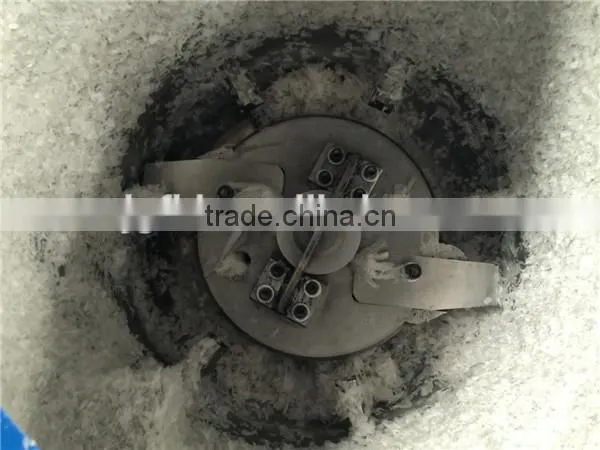

The plastic film agglomerator is a machine developed for plasticizing & recycling of thermoplastic film, tape & Pet Bottle flakes and many more. The unit essentially consists of drum-container and a high speed rotor equipped with blades placed inside the drum itself. The plastic film is inserting inside the drum where the blades cut, mix and plasticize the product. By introducing certain water quantity a cooling and a partial solidification of melted mass is affected. Persisting blade rotation get solidified mass in to irregular shape clots, which permit an easy handling,stocking and extruder feeding.

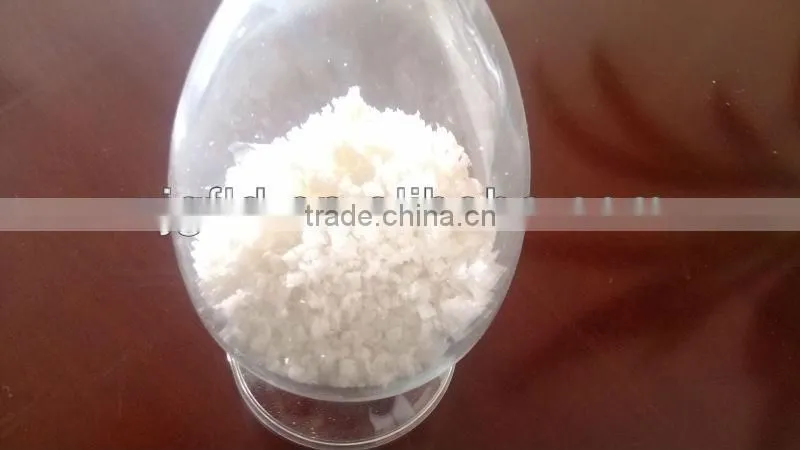

The agglomerator machine is used to granulate the thermal plastic films, PET fibers, whose thickness is less than 2 mm into small granules & pellets directly. The soft PVC, LDPE, HDPE, PS, PP, foam PS, PET fibers and other thermoplastics are suitable for it.
Technical parameters
Mould | TLJ-100 | TLJ-300 | TLJ-450 | TLJ-800 |
Volume(L) | 100 | 300 | 450 | 800 |
Effective volume(L) | 75 | 200 | 350 | 550 |
QTY of rotary blade | 2 | 2 | 2 | 4 |
QTY of fixed blade | 6 | 6 | 8 | 8 |
Speed(r/min) | 1050 | 950 | 950 | 760 |
Power(kw) | 37 | 55 | 75 | 110 |
Output(T/day) | 2.4 | 6 | 8 | 12 |
Weight(kg) | 1000 | 2200 | 2800 | 3500 |
Size(m) | 1.7*0.75*1.5 | 2*1.1*1.8 | 2.35*1.25*1.95 | 2.6*1.4*2.3 |
My contact
Skype: friendmachinery03
Whatsapp: +86 15366255019
Wechat: 627051729
Phone number: +86 18112686703
If you want more infromation, feel free to contact me.
Reason for chosing our mahcine
1. Our factory is located in Jiangsu Zhangjiagang which is nearby Shanghai.
2. We are specialized in all kinds of plastic machines, and we have been in this area for many years so we have a rich experince, we can solve most trouble other factory can not.
3. With wide experience, we can design machine for you which will not change its quality.
4. To expend foreign market and seeking for long term cooperation, we will give you a very cheap price.
Detailed pictures

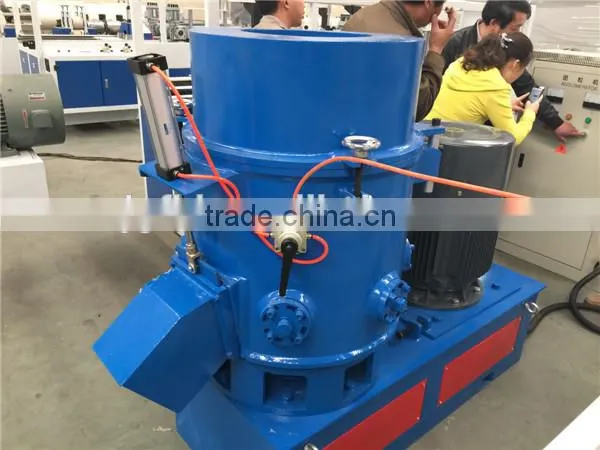

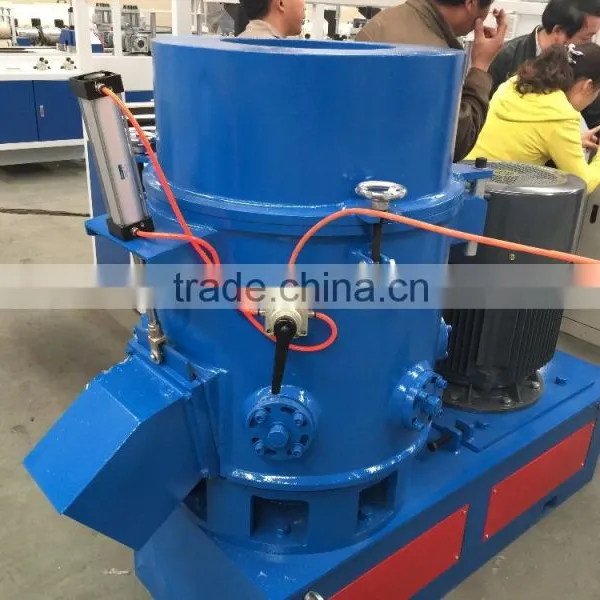

Plastic film agglomerator

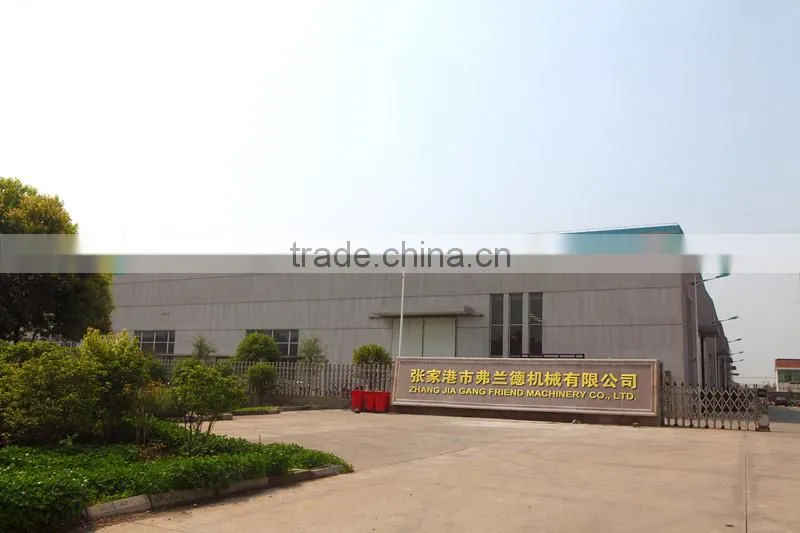

Zhangjiagang Friend machinery Co.,LTD is a national fixed-point enterpricse specialized in plastic machinery research and development, production and sales. The company has introduced advanced domestic and international technology, pay attention to technology reform, and constantly develop new product. The main products is: All kinds of extruder, pipe/sheet/profile/board production line, plastic recycling mahcine, crusher, mill, pulverizer etc.
Zhangjiagang Friend machinery Co.,LTD will unremitting efforts to achieve in technology and service in the future self improvement, and more to create and to provide customers the best products of real value, with first-class technology, flass-class produts and first class service to our customer side by side to meet the beautiful future.
1. Q: If I need the machine urgently, what will you do?
A: We have some machines in our warehouse, if the machine match your demands, we can ship the machine to you within 7days after testing.
2. Q: If my machine can not work when I receive it, what will your factory do?
A: First of all, do not worry about the thing, we will test the machine before shipment. And if it happened, we will send our engineer to your factory to repair the machine.
3. Q: If my machine is broken within one year, what your factory will do?
A: Just send us some pictures and our engineer will analysis the reason, and send you broken parts for free.
4. Q: How can I believe your factory and machines.
A: We have CE, ISO certificates. And we have customers all around the world, we can test the machine after it finished and you check, if it can not reach your demands, we will change, or even give back your deposit.
5. Q: How many days needed to finish the machine and what is about the payment?
A: Normally we use T/T payment. And normal machine need 30 working days. If we have the same machine in storage, it can be finished with 7 working days.
