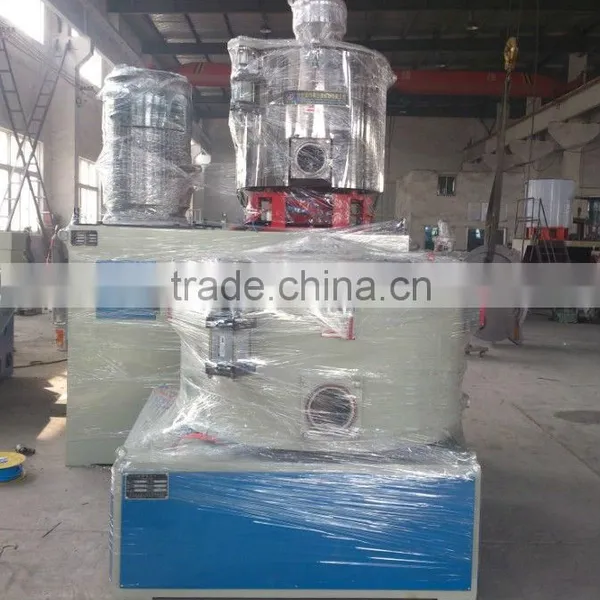

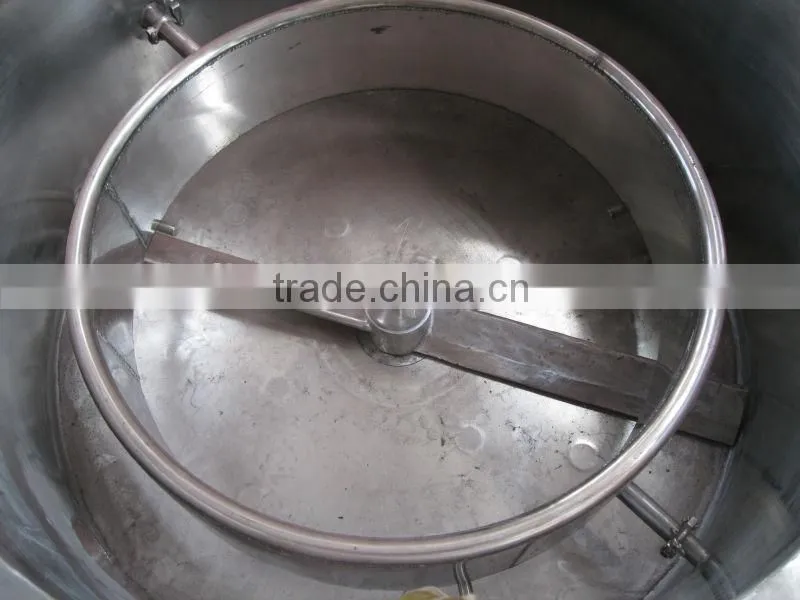

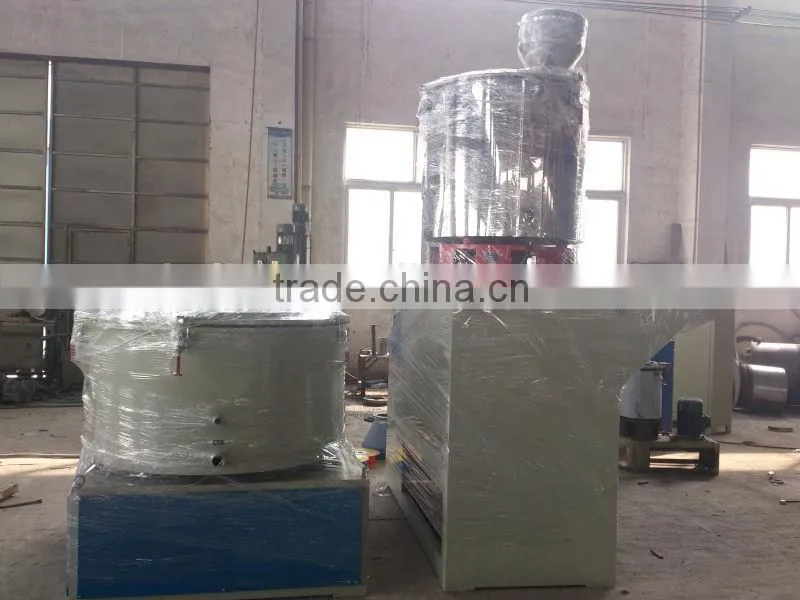

SRL-Z plastic mixing machine unit
1. It is used in mixing, compounding, drying coloring and other processing of PVC, PP, PE etc. It is ideal equipment for producing shaped plastic material and plastic pipes.
2. The unit combines heat mixing and cool mixing together
3. The materials after heat mixing will go into the cool mixing for exhausting the remained gas and preventing blocking.
4. Advanced control system ensures the smooth running
5. Power input system provides reliable measurements.
Feature
1. High capacity
2. Stable and high- speed mixing performance
3. long uselife
4.ABB,siemens
5.4.ISO9001
The main technical paraments
Model |
Total capacity |
Effective capacity |
Motor power(kw) |
Spindle speed |
Heating method |
Discharge method |
SRL-Z50/100 |
50/100 |
32/75 |
7/11/5.5 |
750/1500/180 |
Self-friction or electric heating |
Hand work or pneumatic |
SRL-Z100/200 |
100/200 |
75/160 |
14/22/7.5 |
650/1300/150 |
||
SRL-Z200/500 |
200/500 |
150/320 |
30/42/11 |
475/950/130 |
||
SRL-Z300/600 |
300/600 |
200/360 |
40/55/11 |
475/950/130 |
||
SRL-Z300/1000 |
300/1000 |
200/640 |
40/55/11 |
475/950/50 |
Pneumatic |
|
SRL-Z500/1000A |
500/1000 |
375/650 |
47/67/18.5 |
430/860/60 |
||
SRL-Z500/1000B |
500/1000 |
350/640 |
55/75/15 |
430/860/50 |
||
SRL-Z500/1600B |
500/1600 |
375/1200 |
55/75/18.5 |
430/860/60 |
||
SRL-Z800/1600A |
800/1600 |
600/1024 |
75/30 |
500/50 |
||
SRL-Z800/2000B |
800/2000 |
600/1500 |
83/110/30 |
370/740 |
