Specifications
ZJ Plastic Automatic Feedermaterial request: plastic powdermotor power:0.75-5.5kwheight request: according to the clients×Plastic Automatic Loader
ZJ Series Plastic Automatic Loader
Features and Application:
This machine adopts the principle of low vacuum to achieve the flow conveying of plastic resin particle, with matching dryer hopper to achieve automation of drying and feeding.
Technical Parameter:
Model |
ZJ200 |
ZJ400 |
ZJ600 |
ZJ1000 |
|
Max Static Press(Pa) |
9800 |
13000 |
14000 |
16000 |
|
Max Air Quantity (m³/Min) |
2 |
2.8 |
3.4 |
4.5 |
|
Motor |
Power(kw) |
1.1 |
1.5 |
2.2 |
5.5 |
Rotating Speed(rpm) |
2800 |
||||
Conveying Capacity(kg/h) |
5m |
200 |
400 |
600 |
1000 |
10m |
150 |
300 |
450 |
700 |
|
Inhaling Door Volume(L) |
10/10 |
15/10 |
20/15 |
25 |
|
Inner Diameter of Suction Feeding Tube(mm) |
40 |
40 |
50 |
50 |
|
Inner Diameter of Inhaling Tube(mm) |
50/40 |
50/40 |
60/50 |
60 |
|
Overall Dimensions(mm) |
520×400×905 370×480×820 |
520×400×905 370×480×820 |
620×400970 420×560×870 |
800×530×1009 |
|
|
298×266×62 298×266×460 |
298×266×62 298×266×460 |
392×312655 392×312×510 |
614×312×820 |
||
Weight(kg) |
75 |
90 |
100 |
130 |
|

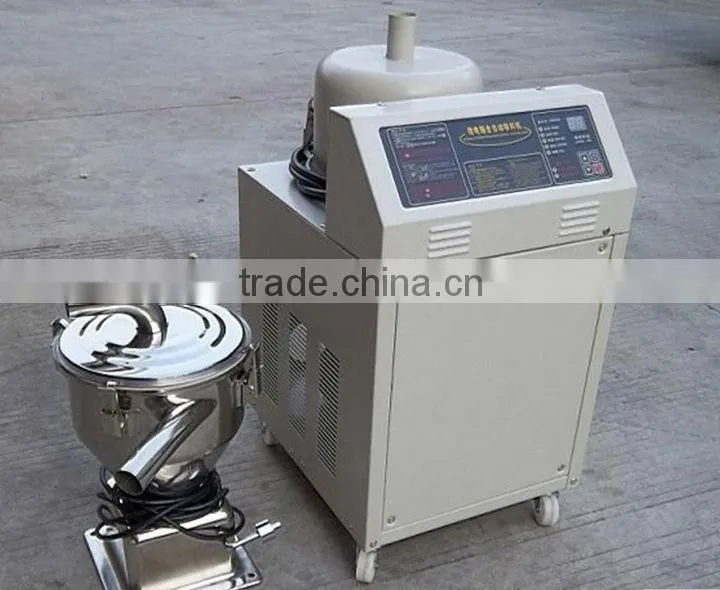

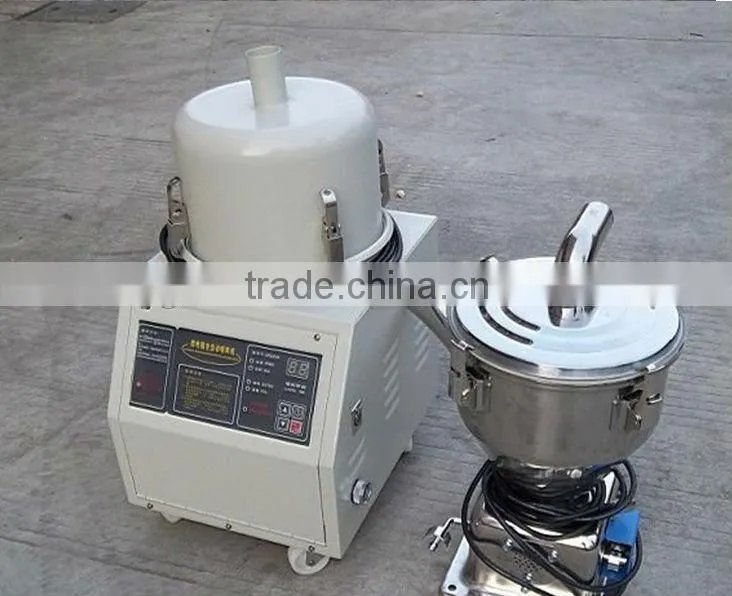

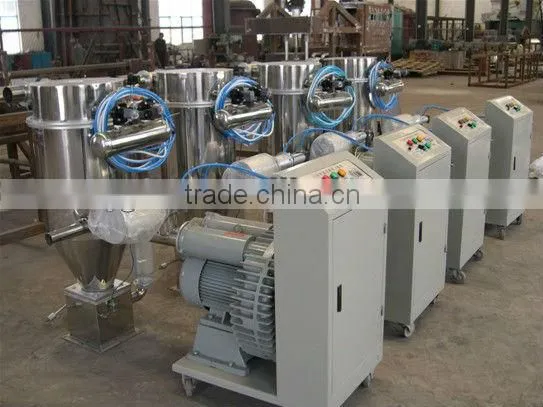

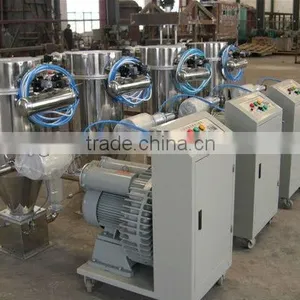

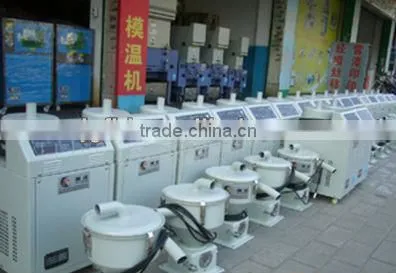

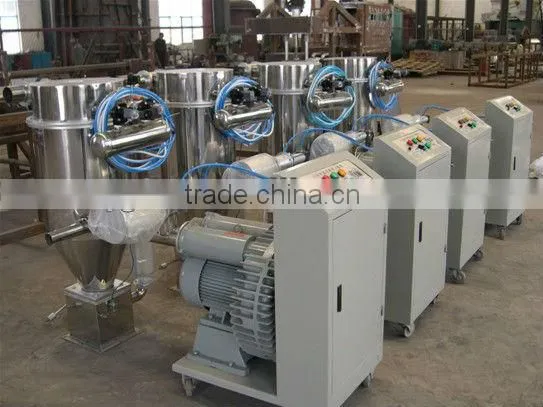

Pictures of Products:
