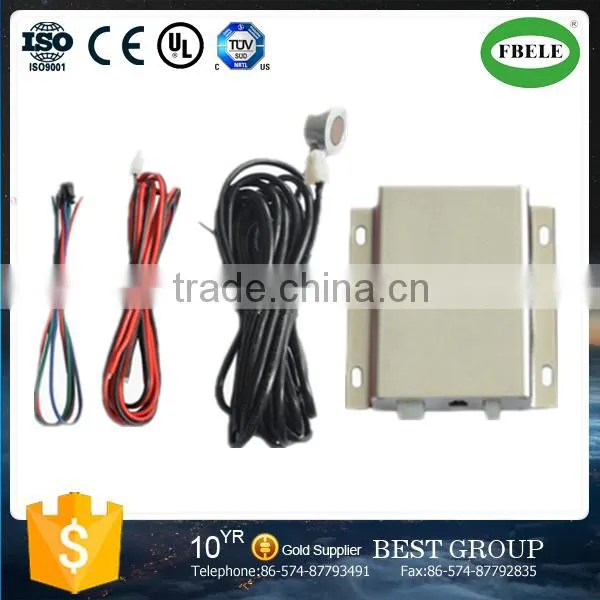

FBGP01 Ultrasonic fuel level sensor installation without punch GPRS interfaceAnalog high accuracy ultrasonic fuel level (FBELE)
Features:
1)Measuring precision, measurement resolution is 0.1mm, liquid level measurement accuracy is 1mm.
2) Good stability; 3) Easy to install; 4) Simple application; 5) Strong antistatic ability (EMC);
6) Variety of standard signal output ways, which are analog voltage (1-5V) and current (4-20mA), digital output RS232 and RS485;
Technical parameters:
Operating Voltage |
DC9V-36V |
|
The power supply ripple |
Less than 100mV |
|
Operating current |
Less than 55mA |
|
Measuring distance |
4cm to 100cm; pressure-bearing range: -0.1MPa~32MPa |
|
Resolution |
0.1mm |
|
Measurement accuracy |
0.5% |
|
Temperature compensation range |
-40 - +80°C |
|
Output mode |
analog voltage,current,RS485,RS232 |
|
Analog output |
Voltage output (default) |
1-5V (corresponding 0-100cm) |
Current output |
4-20mA (corresponding 0-100cm) |
|
Digital output |
RS232(default) |
See the “communication protocol” |
RS485 | ||
Alarm output |
need external connection a alarming horn to achieve alarm |
|
Install method |
bottom of fuel tank/can, water tank |
|
Operating temperature |
-40 - +80°C |
|
Storage temperature |
-50 - +100°C |
|
Size |
102*48*25mm with mounting holes |
|
|
|
|
|
