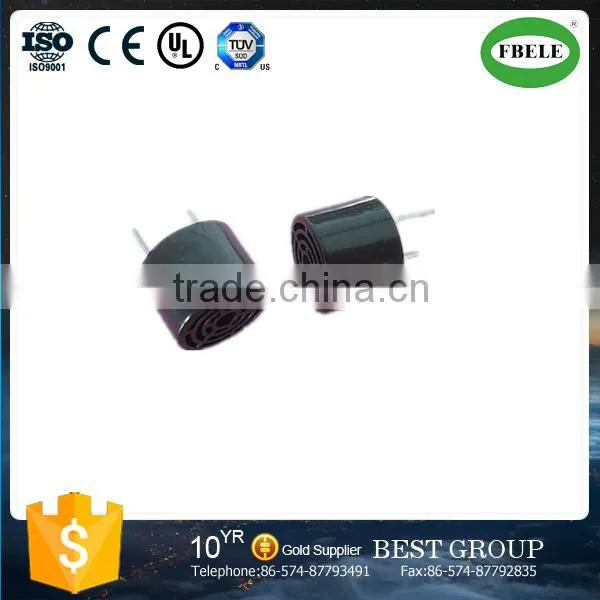

FBULS1007P best price ultrasonic sensor low power transmitter transceiver ultrasonic doppler transceiver sensor (FBELE)
Specification Item |
Parameter |
Remark |
Resonant frequency |
40±1.0kHz |
|
Echo Sensitivity |
≥150mV |
Simulation test circuit see Figure 1. |
Decay Time |
≤1.05ms |
|
Directivity (X) |
120±15° |
Directivity test see Fig 2. |
Directivity (Y) |
60±10° |
|
Electrostatic Capacitance |
1800±15%pF |
1kHz/25℃ |
Input voltage |
≤140Vp-p |
40kHz/ pulse width 0.5ms/ interval 20ms |
Mean Time to Failure |
50000h |
|
Operating temperature |
-35~+80℃ |
|
Storage temperature |
-35~+80℃ |
|
|
|
|
