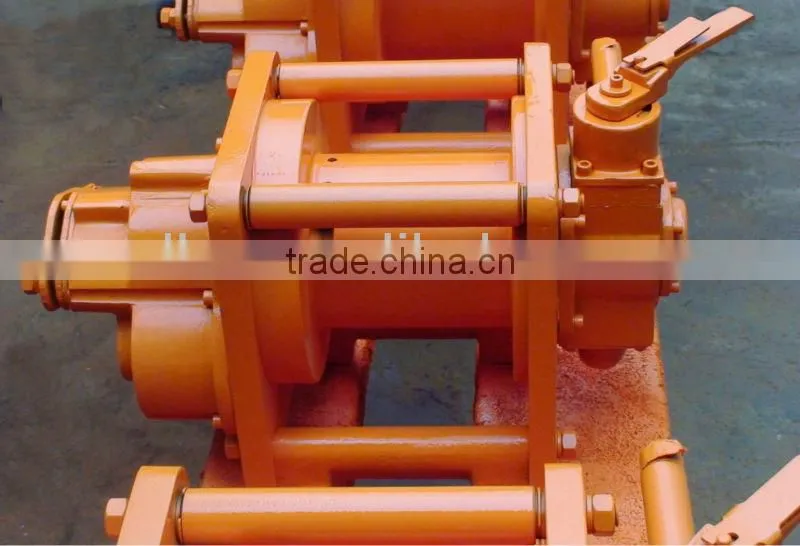

AW200 200KG Vane Air Motor Powered Blade Air Winch
US$ 1,000 - 2,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONGXIN
Model Number:
AW200K
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
UAW30P-1500 Pneumatic Umbilical WinchUS$ 25,000 - 50,000MOQ: 1 Set -
5Ton Air Winch,Ingersoll Rand Type,Hongxin Pneumatic Air WinchUS$ 15,000 - 25,000MOQ: 1 Set
-
HONGXIN Brand 30KN Pneumatic Umbilical Cable WinchUS$ 10,000 - 100,000MOQ: 1 Set
-
QJH80 Shallow Pipr-laying Ship Special WinchUS$ 10,000 - 30,000MOQ: 1 Set
-
QJH20B800 2Ton Cable WinchUS$ 5,000 - 20,000MOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONGXIN
Model Number
AW200K
Power Source
Pneumatic
Application
Other, Mine,Boat,Offshore,Underground Mining
Capacity
200KG
Specifications
Driven By Blad Air MotorEconomical & Practical
Full Production Experience
Compact & Portable
Easy Operation & Maintenance
AW200 200KG Vane Air Motor Powered Blade Air Winch
Main Technical Parameters:
| Technical Parameter | Dimension | |||||||||||
| Model No. | Rated Pull(KN) | Rope speed(m/min) | Dia. of Wire Rope(mm) | Rope Capacity(m) | Air Pressure(MPa) | Weight(kg) | A(mm) | B(mm) | C(mm) | D(mm) | Outline Dimension(mm) | |
| AW200K-6-50 | 2 | 15 |
6(8) | 50(40) | 0.6 | 34 | 150 | 139 | 167 | 645 | 645*360*358 | |
| AW200K-6-60 | 2 | 15 | 6(8) | 60(50) | 0.6 | 36 | 200 | 189 | 217 | 695 | 695*360*358 | |
| AW200K-6-80 | 2 | 15 | 6(8) | 80(70) | 0.6 | 38 | 255 | 244 | 272 | 750 | 750*360*358 | |

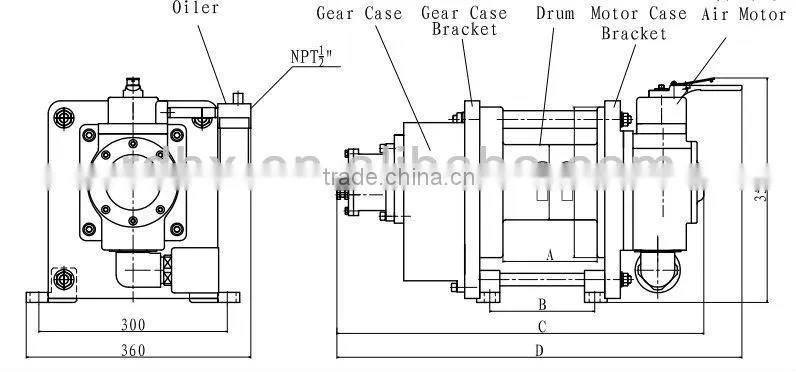

Outline Drawing:

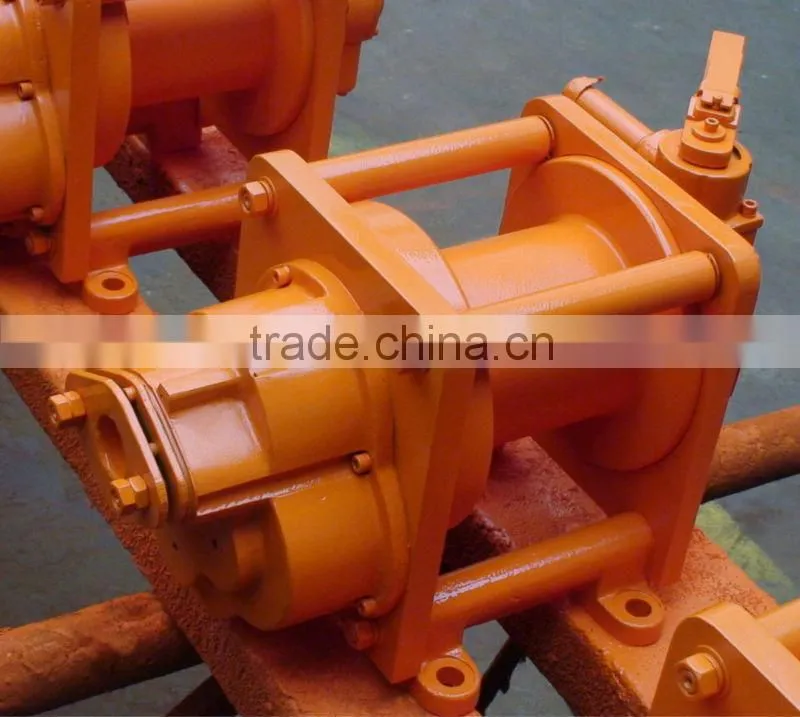

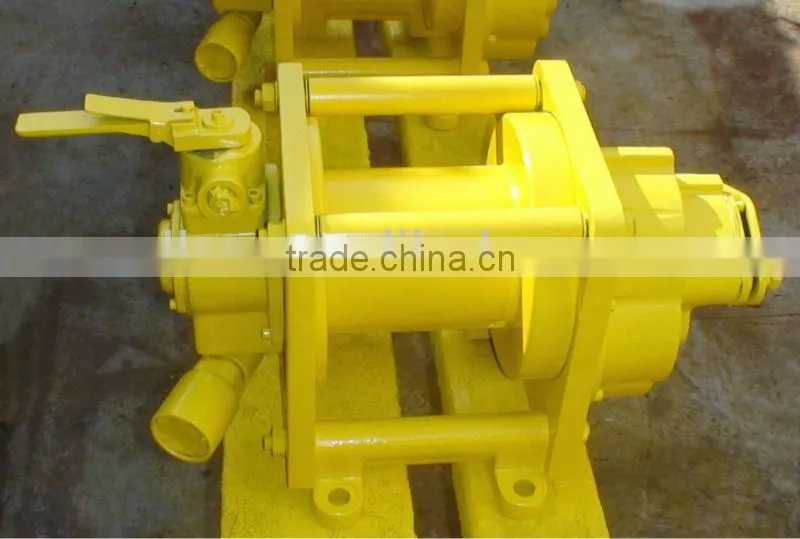

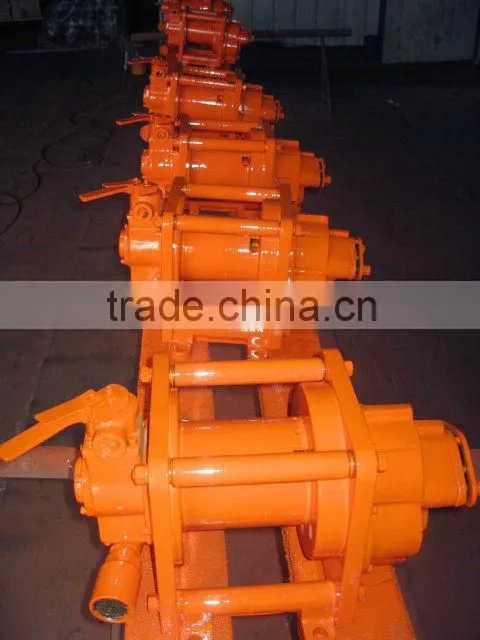

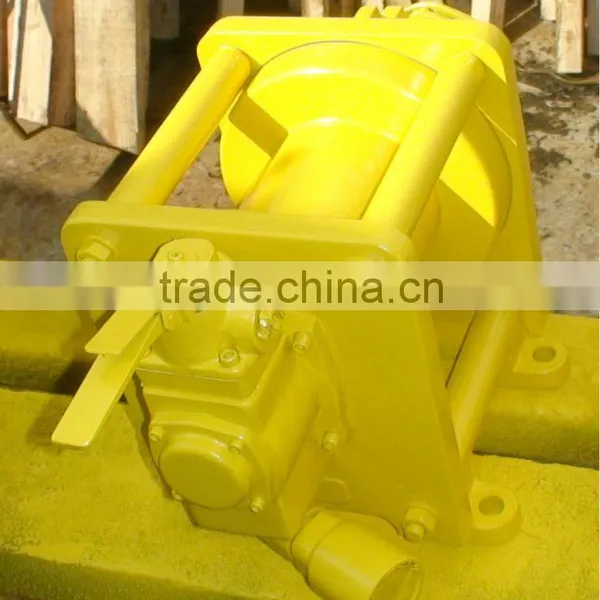

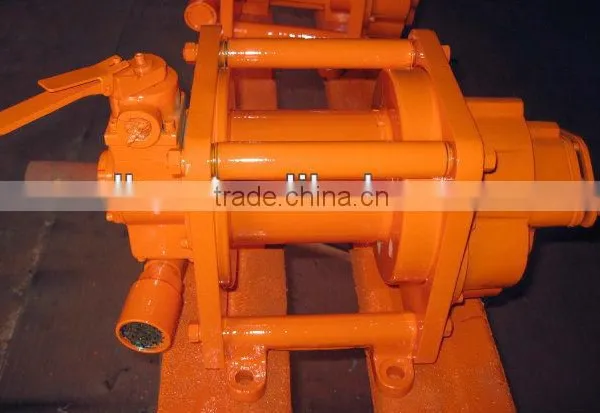

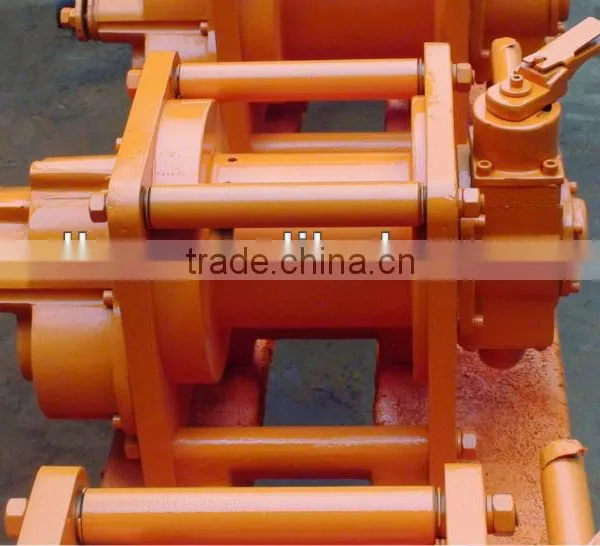

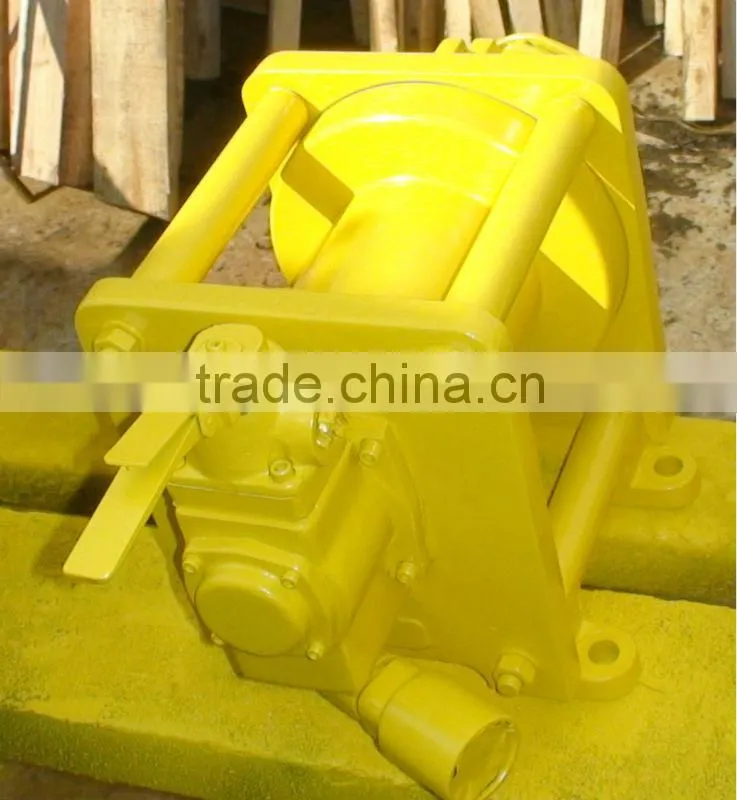

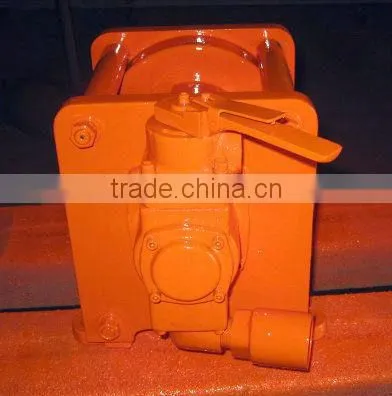

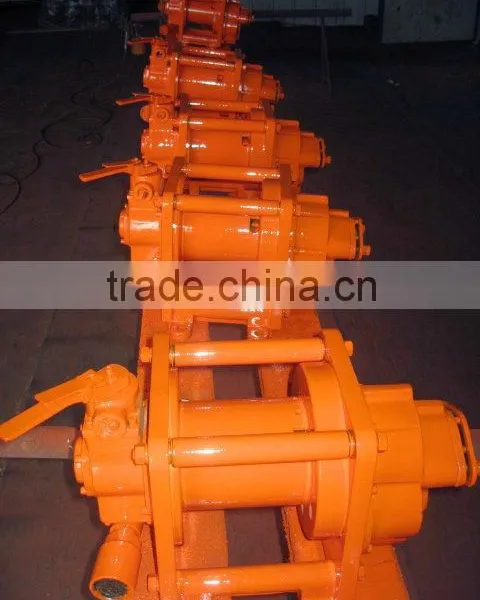

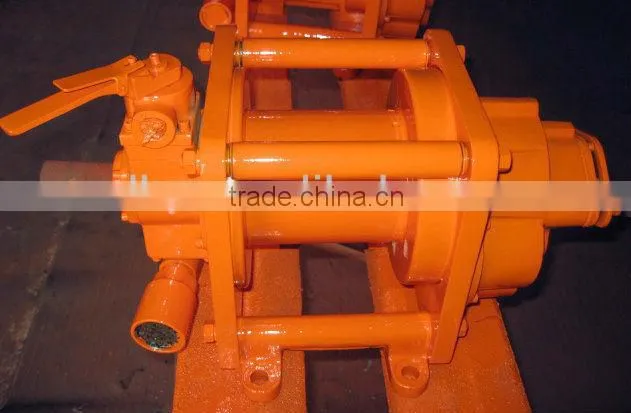

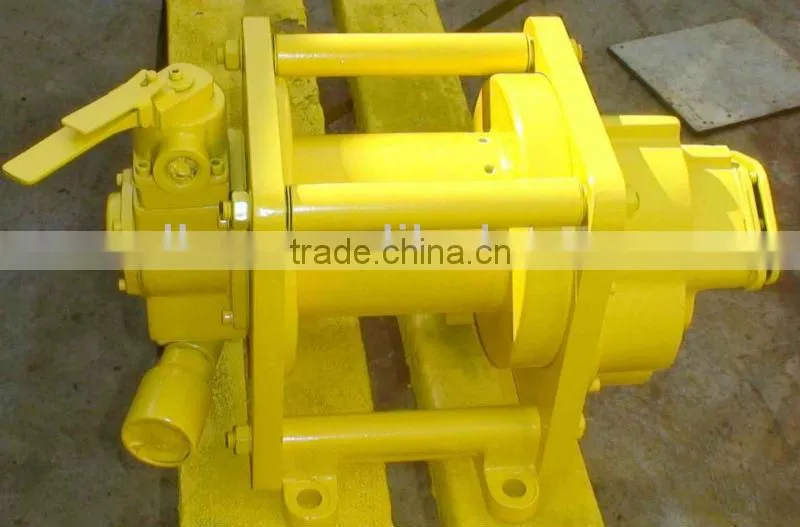

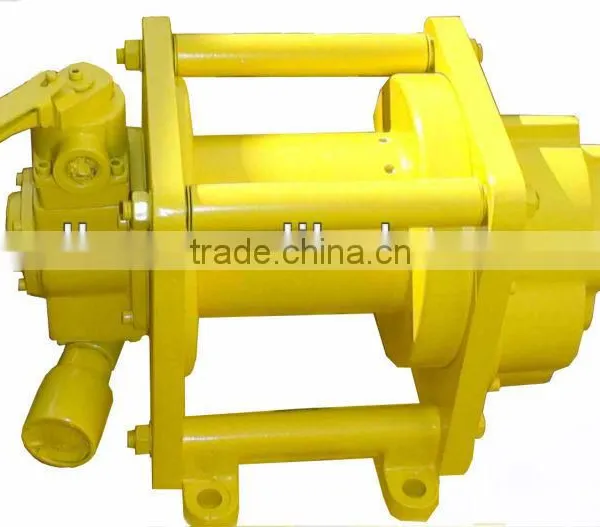

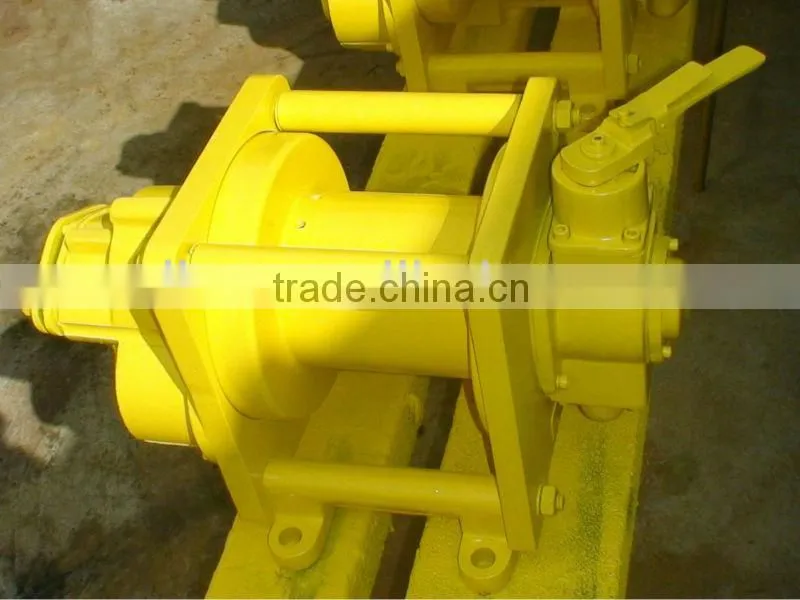

Real Product Shown:
