10Ton Air Winch "HONGXIN" Brand Ingersoll Rand Type,Electric winch Equivalent,10 ton Air Pulling Winch
Model: QJH100PKHBG-28-300
Q - Pneumatic
J - Winch
H - Piston Air Motor
100 - Rated tension(Top layer) 100Kn(10Ton)
P - Sun Planetary Gearbox
K - Automatic Disc Brake
MB - Manual Drum Brake
G - Drum guard
28 - Wire Rope Dia.28mm
300 - Wire Rope Length 300m
Main Structures:
1. 20KW Piston Air Motor
2. Automatic Disc Brake
3. Sun Planetary Gearbox
4. 3-Stage Planetary Reduction Gear with QPQ Treatment
5. Handwheel Drum Brake
6. Winch mounted lever throttle
7. Modular Drum Guard
8. 2 Exhaust Ports Design
Winch's Spare Parts(Provided with Winch Free)
1. Piston Air Motor's Spare Parts: Compression Rings(10 pcs),Oil Rings(5 pcs)
2. Automatic Disc Brake's Spare Parts: Friction Plates(5 pcs)
3. Winch Exhaust Port's Spare Parts: Mufflers Assembled(2pcs)
4. Operation & Maintenance Manual,Parts Information Manual in English: (1booklet)

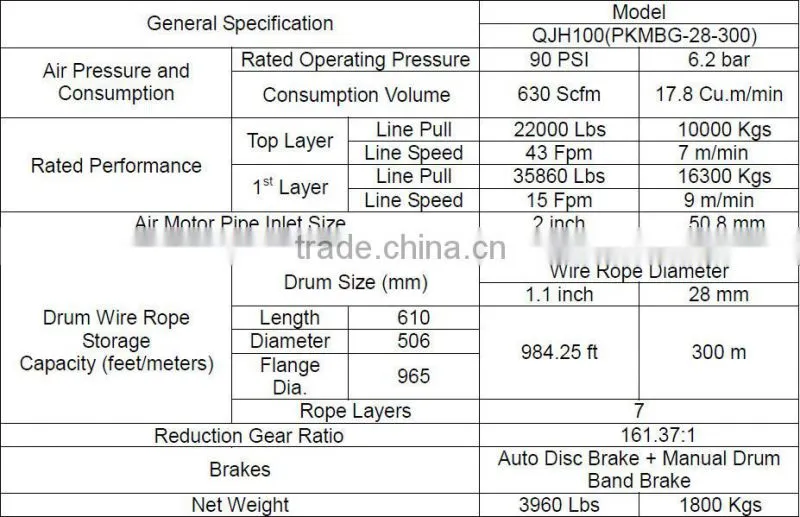

Main Technical Parameters:

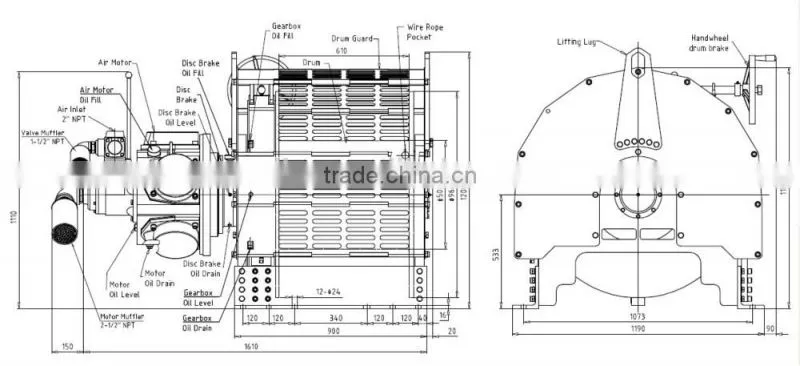

Winch Drawing For QJH100PKHBG-28-300 "HONGXIN" Brand Ingersoll Rand Type 10 ton Pneumatic Winch

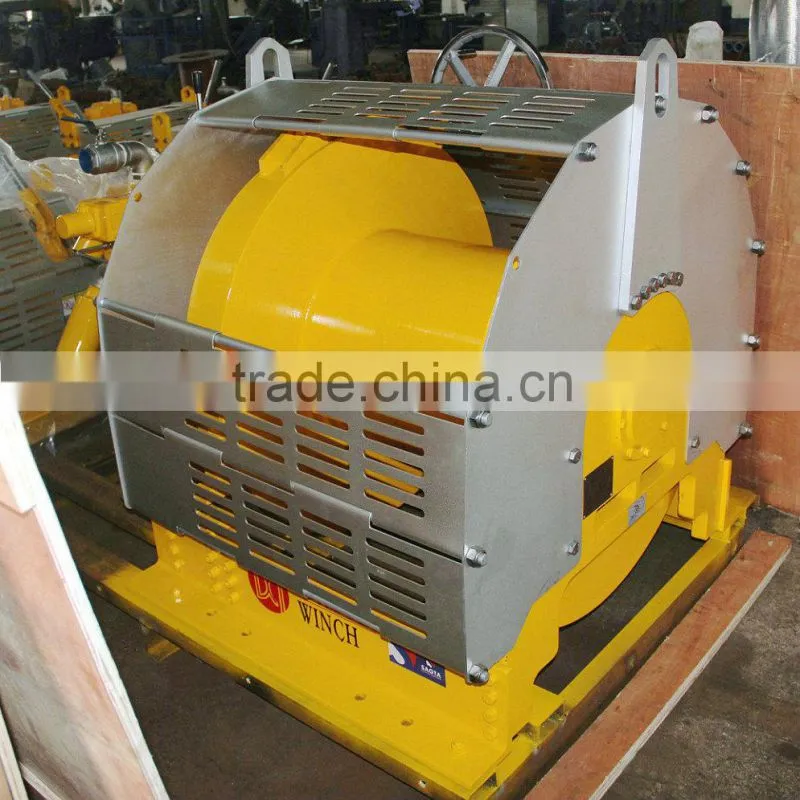

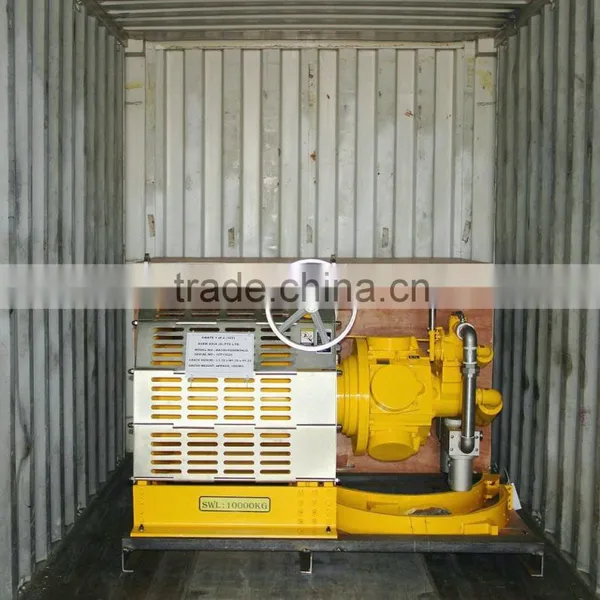

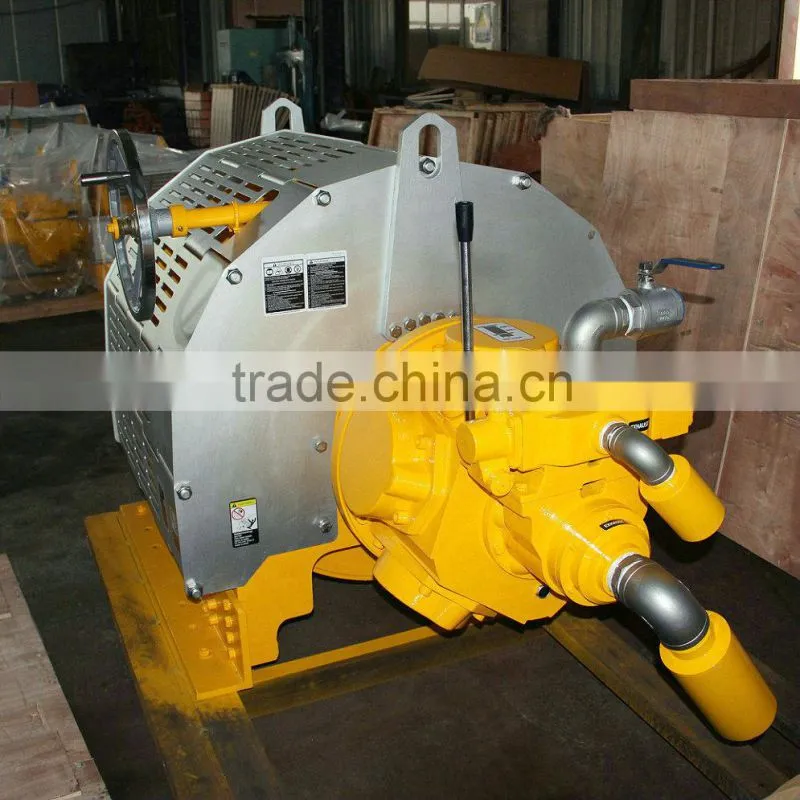

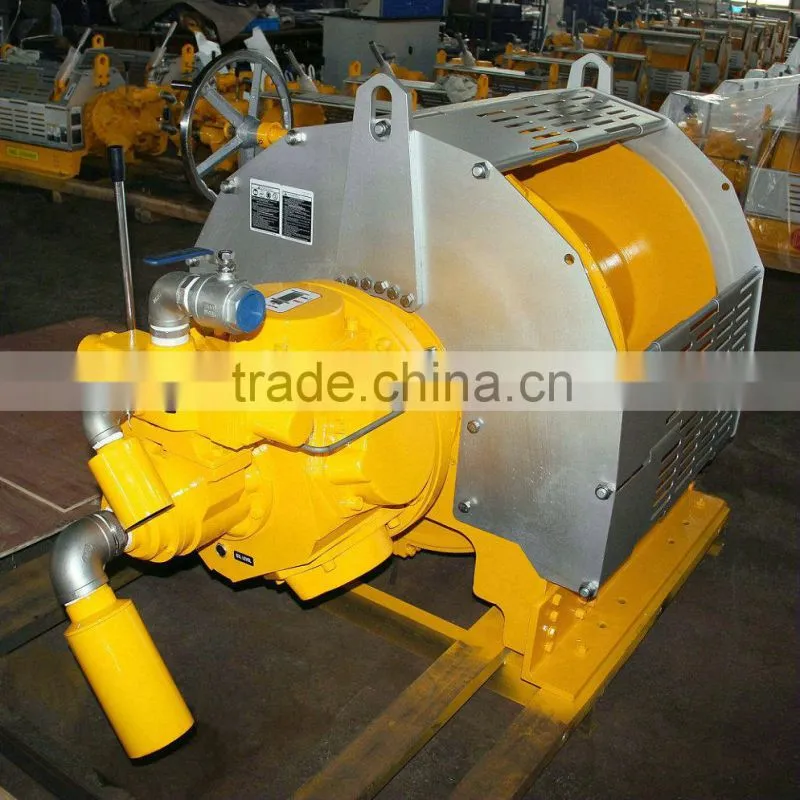

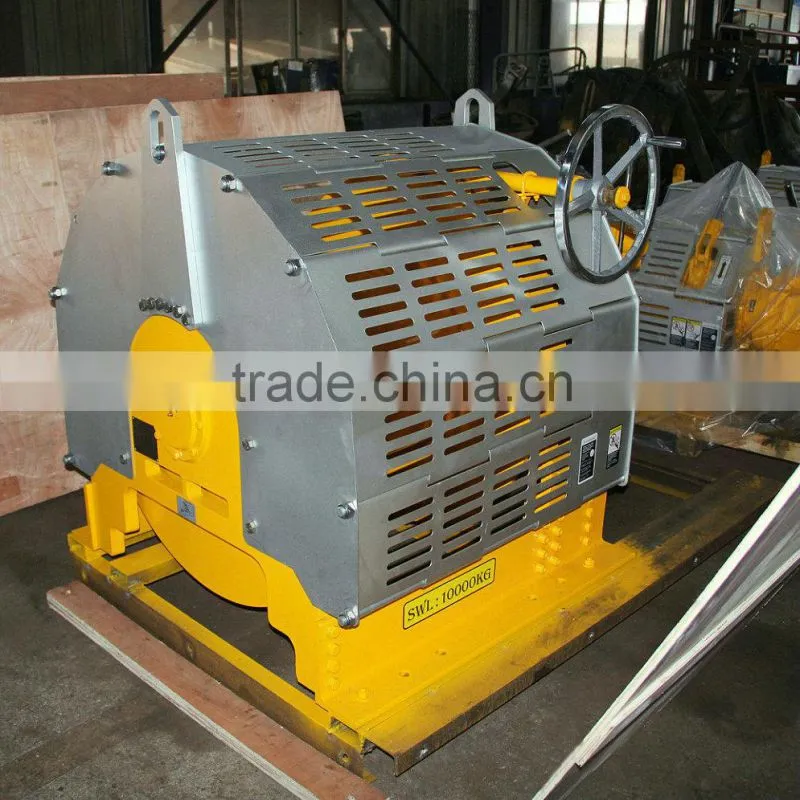

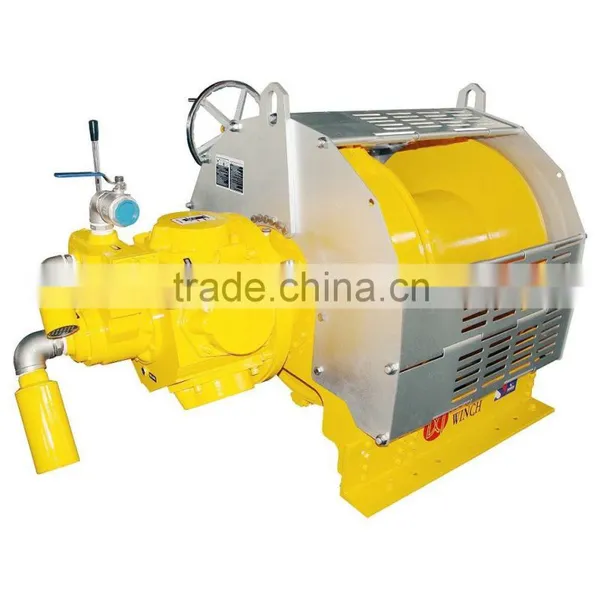

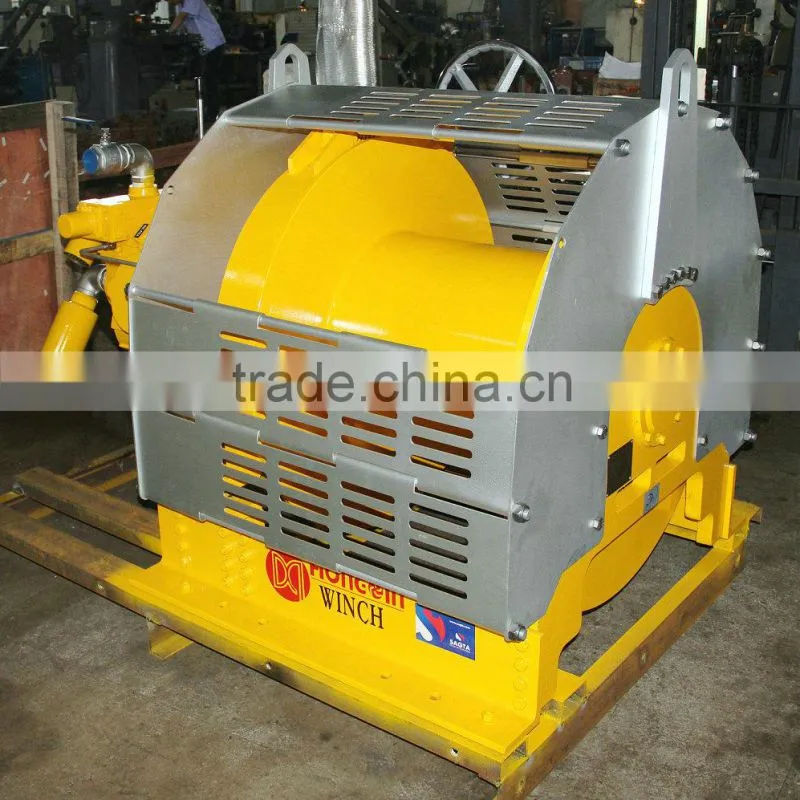

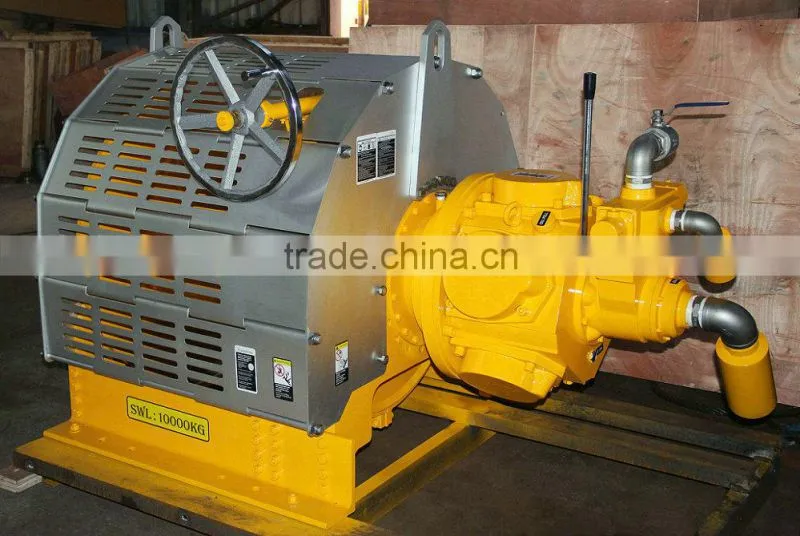

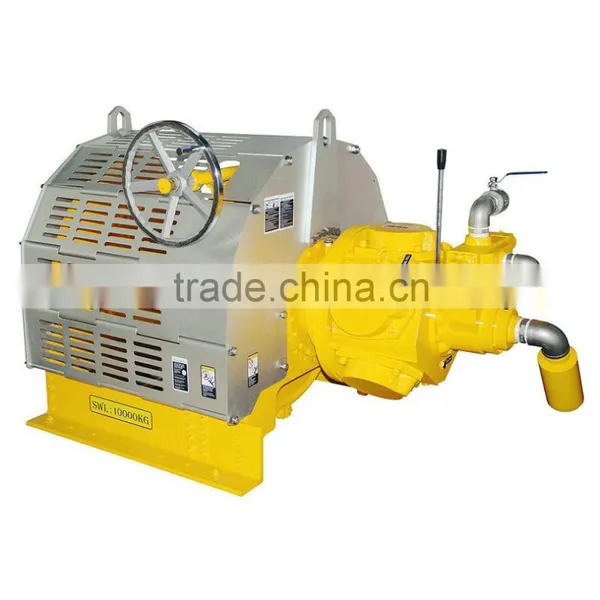

Real Photoes Shows:
