Home > Metallurgy, Mineral & Energy > Solar & Renewable Energy > Solar Brackets > Desert PV Container With 10 kW Modules From Jurawatt

Desert PV Container With 10 kW Modules From Jurawatt

Desert PV Container With 10 kW Modules From Jurawatt thumbnail-1
Desert PV Container With 10 kW Modules From Jurawatt thumbnail-2
Desert PV Container With 10 kW Modules From Jurawatt thumbnail-3
Desert PV Container With 10 kW Modules From Jurawatt thumbnail-4
Desert PV Container With 10 kW Modules From Jurawatt thumbnail-5
Desert PV Container With 10 kW Modules From Jurawatt thumbnail-6
Desert PV Container With 10 kW Modules From Jurawatt photo-1
Desert PV Container With 10 kW Modules From Jurawatt photo-2
Desert PV Container With 10 kW Modules From Jurawatt photo-3
Desert PV Container With 10 kW Modules From Jurawatt photo-4
Desert PV Container With 10 kW Modules From Jurawatt photo-5
Desert PV Container With 10 kW Modules From Jurawatt photo-6
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Germany
Brand Name:
Jurawatt
Type:
Other
Contact Supplier Request Quote Chat Now
J.v.g. Thoma Gmbh
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Germany
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Germany
Brand Name Jurawatt
Type Other



Jurawatt Desert solar container with 10 kW modules



1. JWDC (Ju­rawatt Desert solar con­tainer) - 10:

- 10 kW Ju­rawatt DESERT solar mod­ules (de­tails see data sheets on this home­page)
- 10 kW solar con­tainer - 20 feet

Steel stan­dard con­tainer ISO 20’ suit­able for all types of cargo and bear­ing the pho­to­voltaic mod­ules, bat­tery, elec­tric equip­ments and the PV sup­port struc­ture, hav­ing spec­i­fi­ca­tions listed below:

- Pre-fab­ri­cated mod­ules sup­port struc­ture in hot gal­vanised steel pro­filed tub­ing and con­nected via bolted joints among each el­e­ment and to the con­tainer.

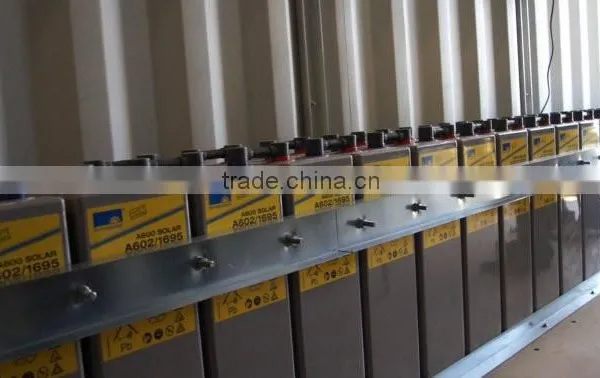

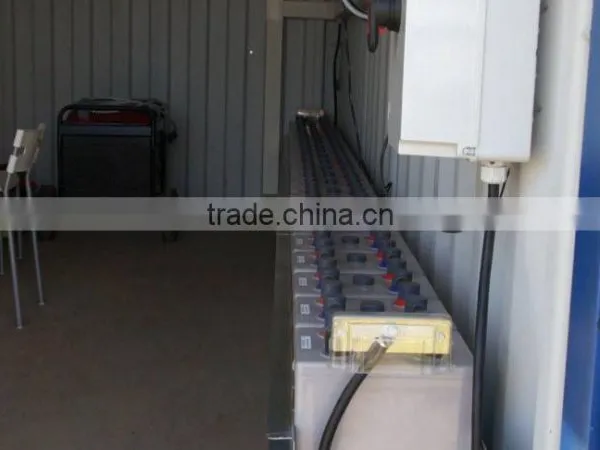

Bat­tery with lead-acid cells type A602 SOLAR

  • Type 1695 Solar
  • premium range battery developed especifically for applications where severe cycling is required extraordinary
  • energy-saving features in addition to robust reliability
  • Gel sealed technology
  • Tubular positive plates
  • nominal capacity at C10 1,363 Ah
  • nominal capacity at C100 1,695 Ah
  • nominal voltage each cell 2 V
  • Number of cells 24
  • nominal voltage whole battery 48 V
  • 8 years life expected

Inverter/Charger XT 6000-48

  • Inverter-charger true sine wave voltage
  • fully automatic pure sine wave inverters/battery chargers/transfer system
  • the inverter converts the battery voltage to AC voltage for all electrical appliances
  • high power charger that supplies charge current to the battery from the grid or auxiliary generator
  • automatic transfer system that manages the available power
  • high and steady efficiency
  • outstanding overload capability, thanks to the combined use of a toroidal transformer and a MOS power stage
  • ultra-fast regulation and microprocessor controlled
  • 2-year limited product warranty

Solar battery charger VT-65 with MPPT

  • extract all the PV power from the modules
  • recommended max power input from PV field 4.000 Wp(@ STC
  • nominal battery voltage 48 V
  • 150 V DC @ Voc max input operating voltage
  • min. input operating voltage +7 V actual battery voltage
  • 65 A max. output current
  • 98% max. efficiency
  • operating temperature -20 ... + 55°C
  • 2-year limited product warranty

5 kW motor generator (optional)

  • Honda EG range are electric genarators specifically designed for the professional user to provide unrivalled reliability and performance
  • Type: open Frame
  • max. output 5,5 kW
  • continuous output 5,0 kW
  • output voltage 115/230 V
  • frequency 50 Hz
  • power stability with Digital AVR Output®
  • engine type GX390
  • single cylinder
  • 4-stroke OHV air cooled type
  • oil capacity 1,1 litre with Oil Alert®
  • Recoil starter system
  • dry weight 83 kg
  • noise Level 85 dB

60 days delivery time.

Irrevocable letter of credit: details to be agreed.

Warranty:

  • 30 years for PV modules
  • 2 years for inverters, battery chargers and battery
  • 2 years for motor generator
  • 1 year for the remaining components

FOB Germany

Transport all over the world

More informations:
www.jvg-thoma.de/en/offgrid-system/desert-solar-container/
www.jurawatt.de

Info[at]jvgthoma.de
