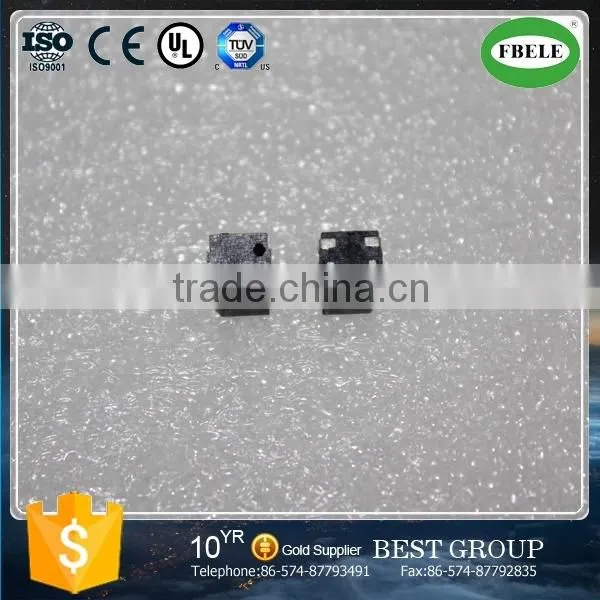

SMT5030 High Quality Passive SMD Magnetic Buzzer (FBELE)
US$ 0.02 - 0.2
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
FBELE
Model Number:
SMT5030
Payment & Shipping
Payment Methods:
Port of Shipment:
ningbo shanghai shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SMT4020 Passive SMD Buzzer, Small Piezo Electrical Magnetic Buzzer (FBELE)US$ 0.02 - 0.2MOQ: 100 Pieces -
SMT5525M High Quality Piezo Buzzer Magnetic Buzzer (FBELE)US$ 0.02 - 0.2MOQ: 100 Pieces
-
SMT5517 High Quality Mechanical Buzzer and Transducer (FBELE)US$ 0.02 - 0.2MOQ: 100 Pieces
-
FT-25*2T 35mm 1MHz Ultrasonic Ultrasonic Piezo Elements Ceramic Disc(FBELE)US$ 0.02 - 0.2MOQ: 100 Pieces
-
SMT1230 Cheaper 12v 90DB 12mm SMT Piezo Buzzer (FBELE)US$ 0.02 - 0.2MOQ: 100 Pieces
Place of Origin
Zhejiang, China
Brand Name
FBELE
Model Number
SMT5030
Type
Buzzer
SMT5030 High Quality passive SMD magnetic buzzer (FBELE)
Item |
Unit |
Specification |
Condition |
Oscillation Frequency |
Hz |
4000 |
Vo-p=1/2duty , square wave |
Operating Voltage |
Vo-p |
2 ~ 4 |
|
Rated Voltage |
Vo-p |
3 |
|
Current Consumption |
mA |
MAX.110 |
at Rated Voltage |
Sound Pressure Level |
dB |
MIN. 75 |
at 10cm at Rated Voltage |
Coil Resistance |
Ω |
12±3 |
|
Operating Temperature |
℃ |
-30 ~ +70 |
|
Storage Temperature |
℃ |
-40 ~ +85 |
|
Dimension |
mm |
5.0 x 5.0 x H3.0 |

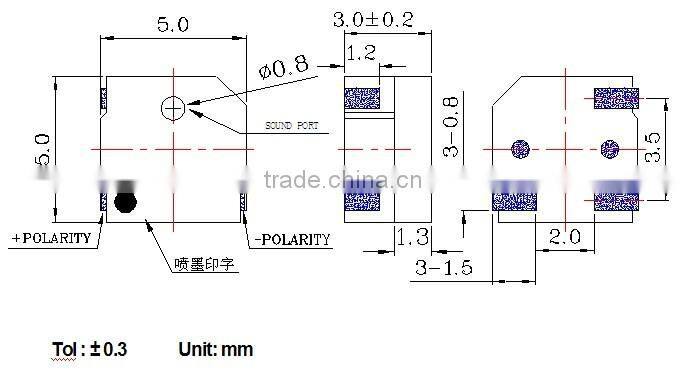

See appearance drawing |
Weight (MAX) |
gram |
0.6 |
|
Housing Material |
|
LCP( Black ) |
|
Leading Pin |
|
Tin Plated Brass(Sn) |
See appearance drawing |
|
Environmental Protection Regulation |
|
RoHS |
