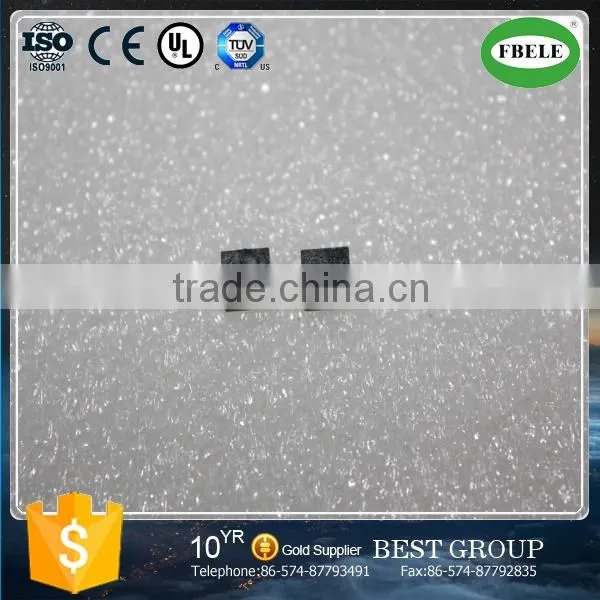

SMT4020 Passive SMD Buzzer, Small Piezo Electrical Magnetic Buzzer (FBELE)
SMT4020 Passive SMD buzzer, small piezo electrical magnetic buzzer (FBELE)
Item |
Unit |
Specification |
Condition |
Oscillation Frequency |
Hz |
4000 |
Vo-p=1/2duty , square wave |
Operating Voltage |
Vo-p |
2 ~ 4 |
|
Rated Voltage |
Vo-p |
3 |
|
Current Consumption |
mA |
MAX. 90 |
at Rated Voltage |
Sound Pressure Level |
dB |
MIN. 70 |
at 10cm at Rated Voltage |
Coil Resistance |
Ω |
17±3 |
|
Operating Temperature |
℃ |
-20 ~ +70 |
|
Storage Temperature |
℃ |
-30 ~ +80 |
|
Dimension |
mm |
4.0 x 4.0 x H2.0 |

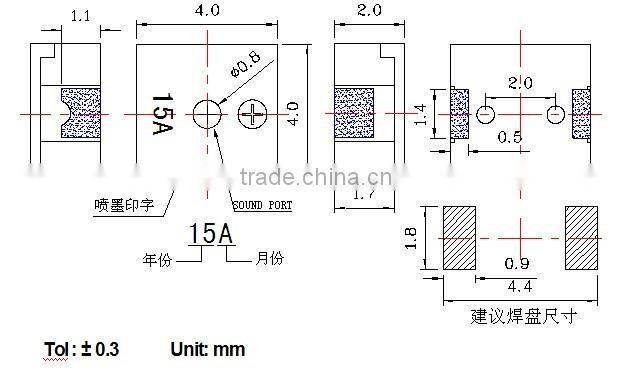

See appearance drawing |
Weight (MAX) |
gram |
0.1 |
|
Housing Material |
|
LCP( Black ) |
|
Leading Pin |
|
Tin Plated Brass(Sn) |
See appearance drawing |
|
Environmental Protection Regulation |
|
RoHS |
Detail Display
