Promotional low consumption aluminium anodized or brass 445nm line blue laser
- 100 Piece / Pieces per Month
- XI AN
- Credit Card
- Mini Laser Module with APC 4x8mm
- Laser Module, 15x60mm Size 405nm-850nm 8um-110um Microbeam Laser Diode Module for Laser Positioning & Pointing
- Mini laser module for laser alignment tools
- 1-5mw 520nm Low Consumption Mini Laser Diode Module 4x8mm
- 1-5mw Mini Infrared Laser Module for Measure Tools and Medical Treatment Instrument
- Mini laser module for bar code scan instrument
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | ELITE | Model Number: | VB |
Product Description
Specifications
11 years experience with manufacture and designFDA IEC ISO9001-2008
Low Consumption
Compact size
SGS TUV assessed
Promotional low consumption aluminium anodized or brass 445nm line blue laser
Product descriptions of blue laser:
Key Feature:
1. High quality
2. High Stability
3. High reliability
4. APC driving circuit
5. Low cost
6. Long Life
Application:
1. Industrial Instruments and Equipments
2. Wild Explore Instruments
3. Military Instruments and Equipments
4. Medical Instruments
5. Surveying Instruments
6. Bar Scan
Specifications:
Parameter | Specifications. | Test Conditions |
Wavelength | 445 nm | Tc = 25°C |
Output Power | 10 mw | Tc = 25°C |
Laser Modes | CW |
|
Transverse mode | TEM00 |
|
Output Aperture | < 1.5 mm | Factory fixed |
Beam Size | < 8 mm | Factory fixed @ 10m |
Divergence | < 0.8 mrad | Tc = 25 ±3°C |
Stability | > 80 % |
|
Operating Current | < 40 mA | Tc = 25±3°C |
Operating Voltage | 3 VDC |
|
Operating Temp. | 0°C ~ 45°C |
|
Storage Temp. | -20°C ~ 70°C |
|
Optics | Glass Lens |
|
CDRH Class | Class IIIa |
|
MTTF | 10000 Hrs. | Tc = 25±3°C |
Model | Pattern | Aperture | Output Power | Divergence | Beam Size | Lens | Dimension |
VB445D05VG3 | 445nm | 6.0mm | 3.0mw | 0.1mrad | ¢6.0mm@20m | Optical Glass | ¢14x50mm |
VB445D10VG3 | 445nm | 6.0mm | 6.0mw | 0.1mrad | ¢6.0mm@20m | Optical Glass | ¢14x50mm |
VB445D20VG3 | 445nm | 6.0mm | 10.0mw | 0.1mrad | ¢6.0mm@20m | Optical Glass | ¢14x50mm |
VB445D40VG3 | 445nm | 6.0mm | 20.0mw | 0.1mrad | ¢6.0mm@20m | Optical Glass | ¢14x50mm |
VB445D60VG3 | 445nm | 6.0mm | 40.0mw | 0.1mrad | ¢6.0mm@20m | Optical Glass | ¢14x50mm |
VB445D100VG3 | 445nm | 6.0mm | 60.0mw | 0.1mrad | ¢6.0mm@20m | Optical Glass | ¢14x50mm |
Sample order are glad to be offer too .Wish would get your enquiry
Before our Quotation pls confirm the specifications as following:
1 Output power
2 Housing Dimension
3 Working distance
4 Beam size/Line thickness
5 Wavelength

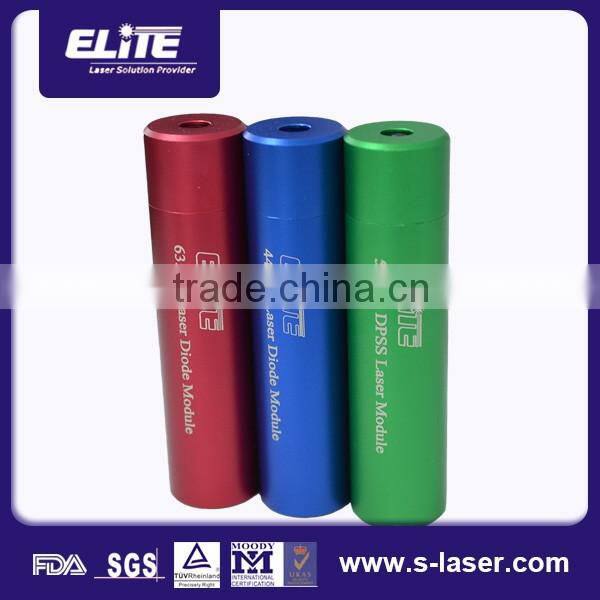

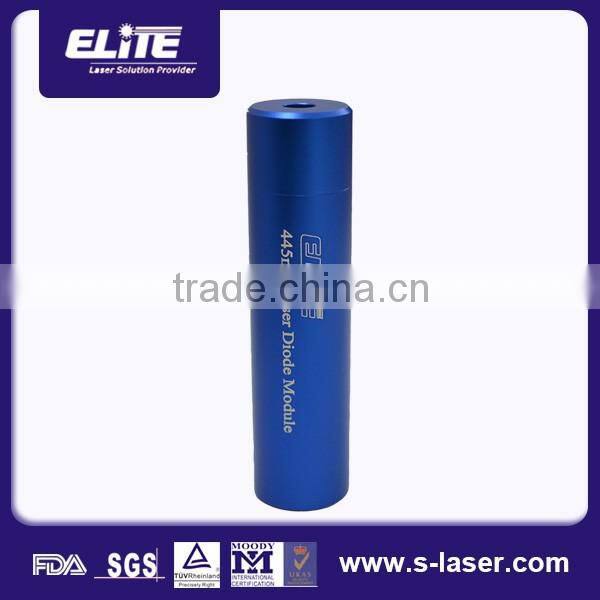

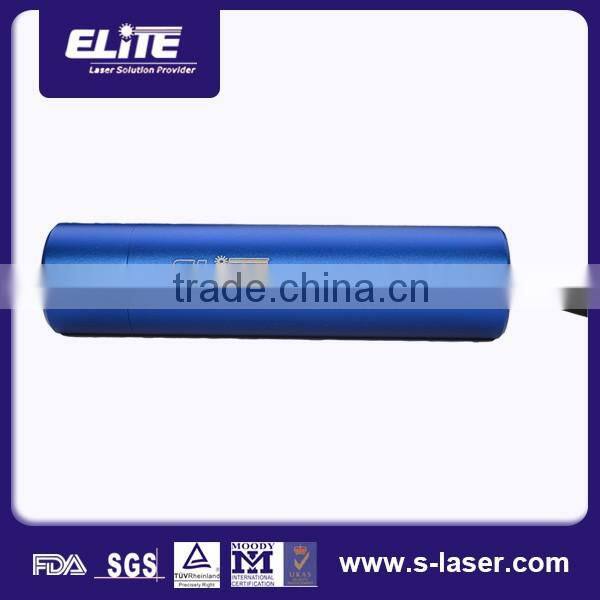

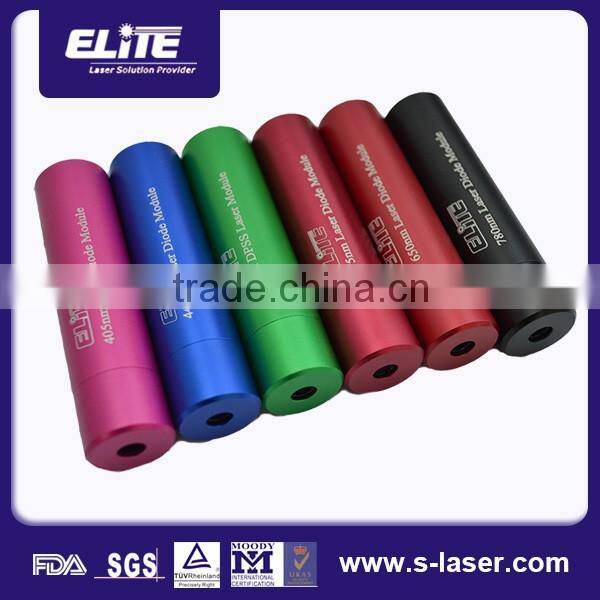

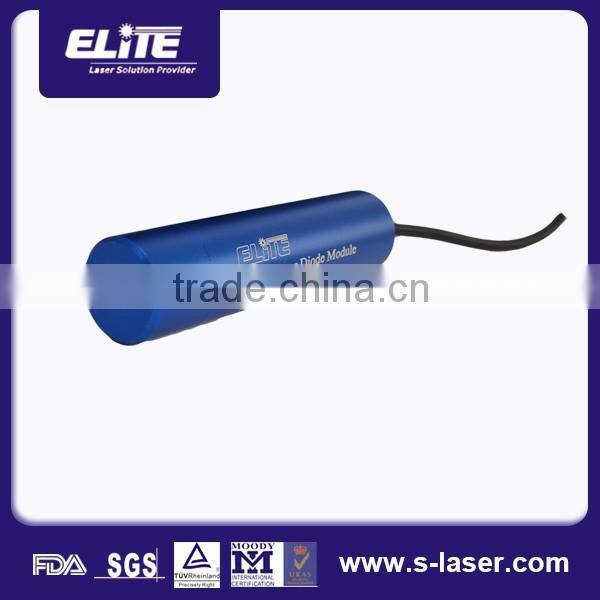

Product pictures of blue laser:
