Specifications
11 years experience with manufacture and designFDA IEC ISO9001-2008
Low Consumption
Compact size
SGS TUV assessed
Promotional low consumption aluminium anodized or brass 445nm line blue diode laser
Product descriptions of blue diode laser:
Key Feature:
1. High quality
2. High Stability
3. High reliability
4. APC driving circuit
5. Low cost
6. Long Life
Application:
1. Industrial Instruments and Equipments
2. Wild Explore Instruments
3. Military Instruments and Equipments
4. Medical Instruments
5. Surveying Instruments
6. Bar Scan
Specifications:
Parameter |
Specifications. |
Test Conditions |
Wavelength |
445 nm |
Tc = 25°C |
Output Power |
10 mw |
Tc = 25°C |
Laser Modes |
CW |
|
Transverse mode |
TEM00 |
|
Output Aperture |
< 1.5 mm |
Factory fixed |
Beam Size |
< 8 mm |
Factory fixed @ 10m |
Divergence |
< 0.8 mrad |
Tc = 25 ±3°C |
Stability |
> 80 % |
|
Operating Current |
< 40 mA |
Tc = 25±3°C |
Operating Voltage |
3 VDC |
|
Operating Temp. |
0°C ~ 45°C |
|
Storage Temp. |
-20°C ~ 70°C |
|
Optics |
Glass Lens |
|
CDRH Class |
Class IIIa |
|
MTTF |
10000 Hrs. |
Tc = 25±3°C |
Model |
Pattern |
Aperture |
Output Power |
Divergence |
Beam Size |
Lens |
Dimension |
VB445D05VG3 |
445nm |
6.0mm |
3.0mw |
0.1mrad |
¢6.0mm@20m |
Optical Glass |
¢14x50mm |
VB445D10VG3 |
445nm |
6.0mm |
6.0mw |
0.1mrad |
¢6.0mm@20m |
Optical Glass |
¢14x50mm |
VB445D20VG3 |
445nm |
6.0mm |
10.0mw |
0.1mrad |
¢6.0mm@20m |
Optical Glass |
¢14x50mm |
VB445D40VG3 |
445nm |
6.0mm |
20.0mw |
0.1mrad |
¢6.0mm@20m |
Optical Glass |
¢14x50mm |
VB445D60VG3 |
445nm |
6.0mm |
40.0mw |
0.1mrad |
¢6.0mm@20m |
Optical Glass |
¢14x50mm |
VB445D100VG3 |
445nm |
6.0mm |
60.0mw |
0.1mrad |
¢6.0mm@20m |
Optical Glass |
¢14x50mm |
Sample order are glad to be offer too .Wish would get your enquiry
Before our Quotation pls confirm the specifications as following:
1 Output power
2 Housing Dimension
3 Working distance
4 Beam size/Line thickness
5 Wavelength

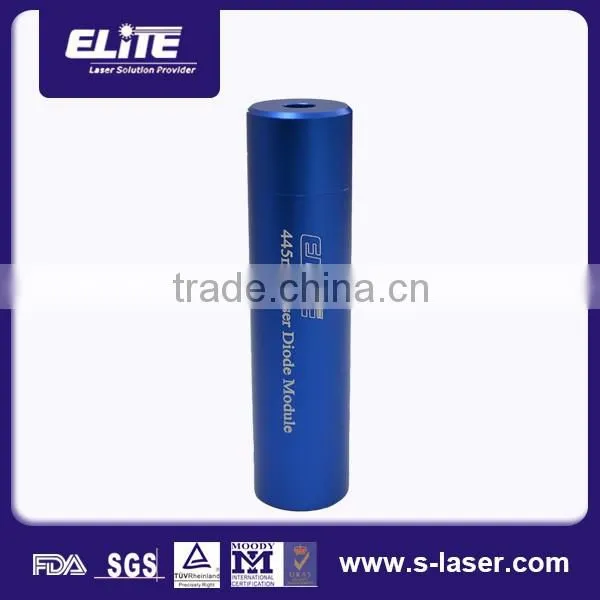

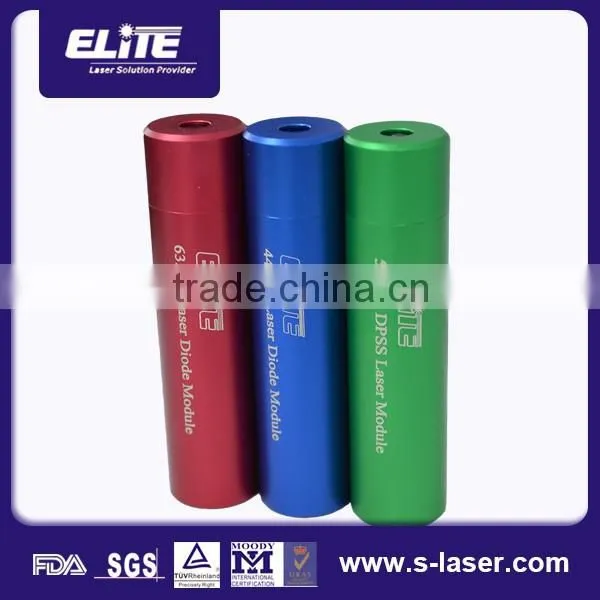

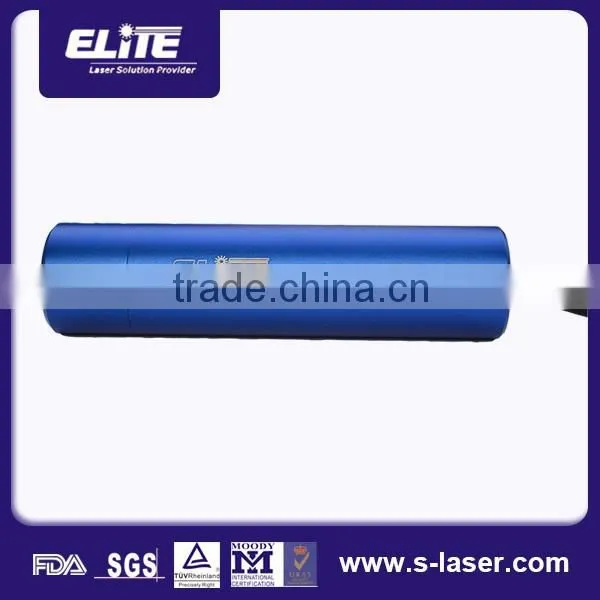

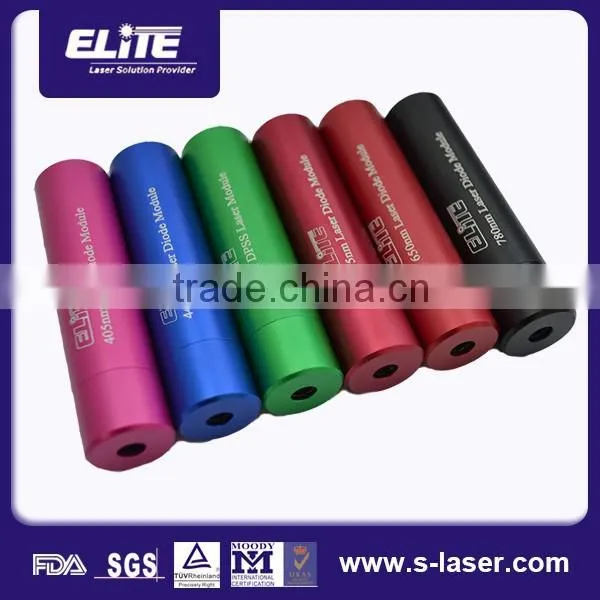

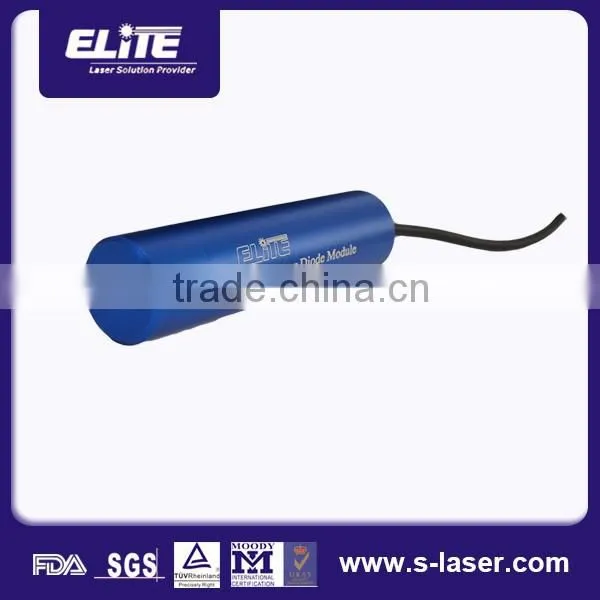

Product pictures of blue diode laser:
