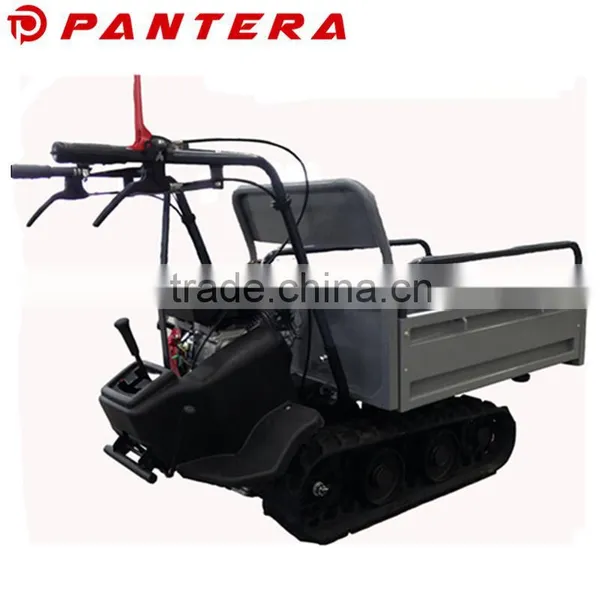

China Popular Low Fuel Consumption Mini Crawler Dumper

Name: China Popular Low Fuel Consumption Mini Crawler Dumper
Brand: Pantera
SKU: 124666011
Availability: InStock

US$ 690 - 740 MOQ: 1 Unit

Key Specifications

Condition:

New

Brand Name:

Pantera

Model Number:

PT7B-320A

Chongqing Pantera Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name Pantera

Model Number PT7B-320A

Place of Origin Chongqing, China

Type Mini Loader

Moving Type Crawler Loader

Dimension(Long * Breadth * High) 1620x600x830mm

Rated Load 320kg

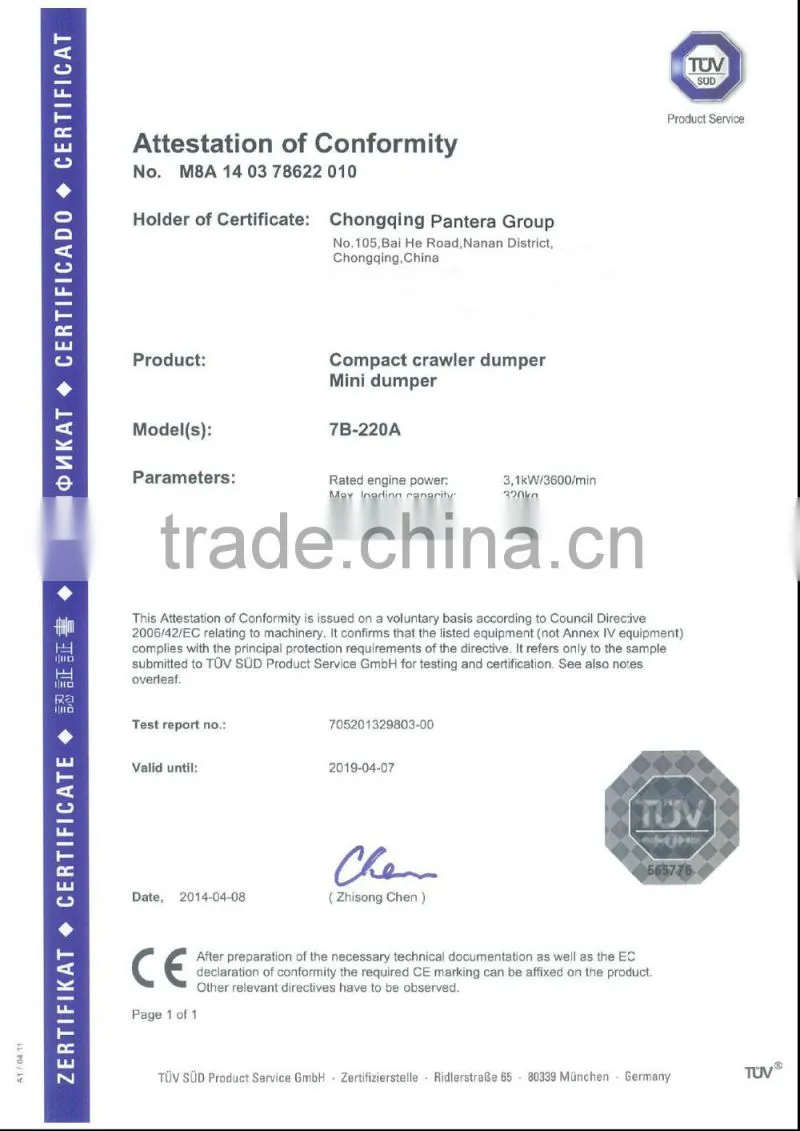

Certification CE

Warranty 1 Year for engine

After-sales Service Provided Engineers available to service machinery overseas

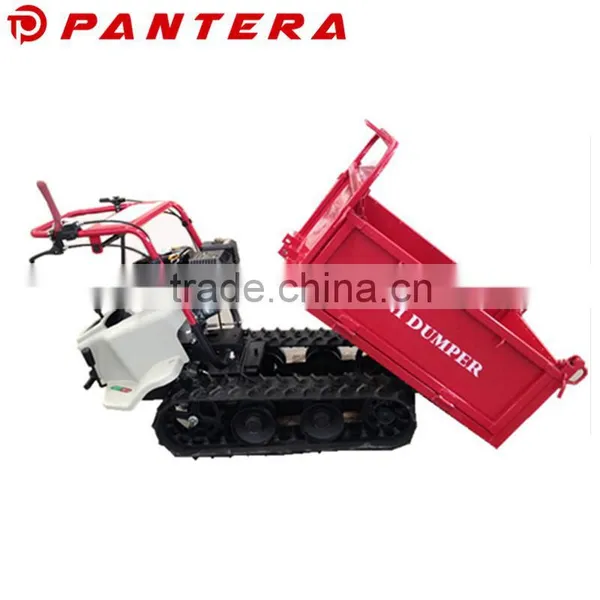

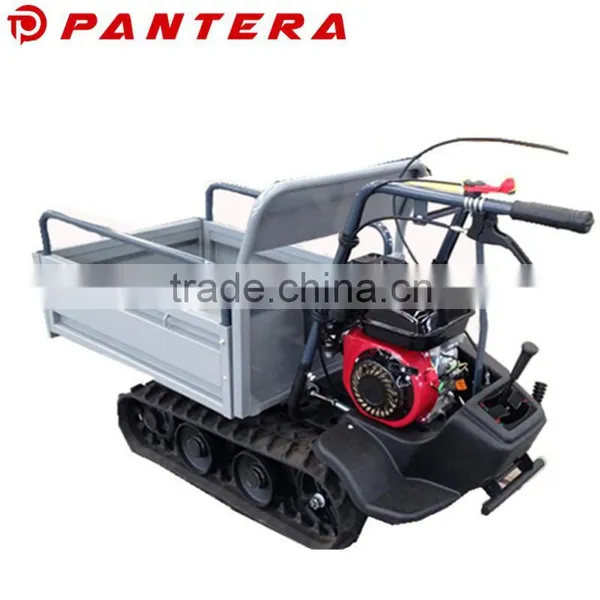

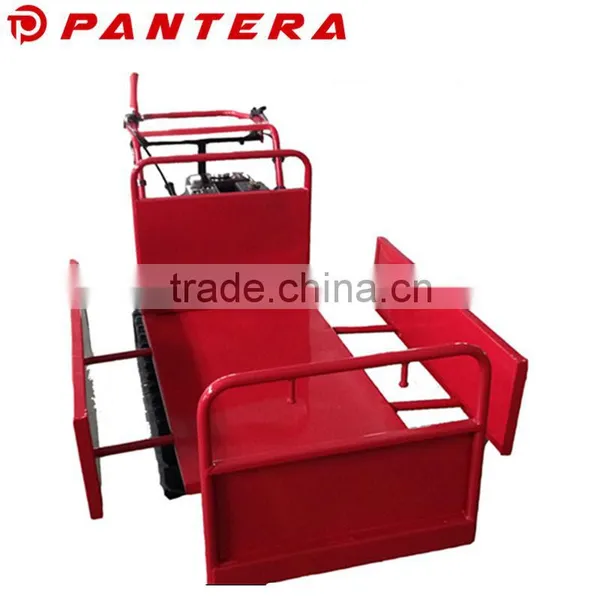

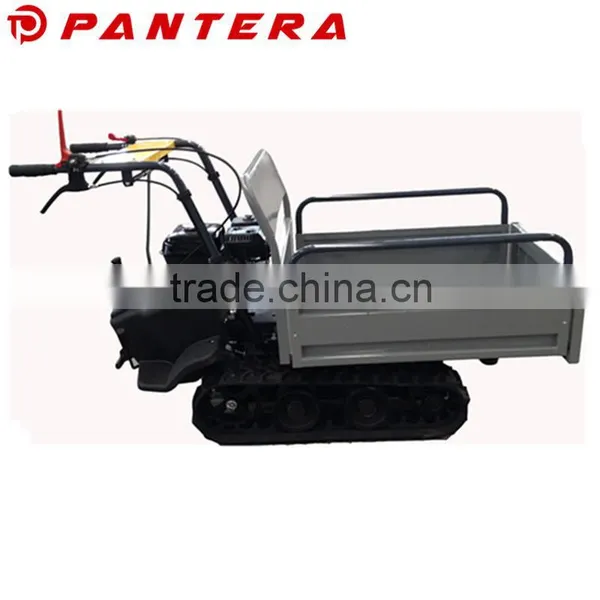

China Popular Low Fuel Consumption Mini Crawler Dumper

Mini dumper
Model			7B-220A
Machine weight Kg			156
Loading capacity Kg			320
Dimension	Lenght × width × height mm		1620 × 600 × 830
	Track length on the ground mm		650
	Track center distance mm		410
	Loading case bottom plate height mm		295
Loading case	Loading case internal dimensino	Lenght mm	850
		width mm	570
		height mm	290
	Dump type		manual
	Dump angle °		60
Engine	Model		WM168F/P
Walking performance	Travel speeds	Forward 1 Km/h	0.5
		Forward 2 Km/h	0.8
		Forward 3 Km/h	1.3
		Forward 4 Km/h	1.8
		Forward 5 Km/h	3
		Forward 6 Km/h	4.9
		Reverse 1 Km/h	0.6
		Reverse 2 Km/h	2.3
	Minimum radius of gyration m		1.15
	climbing ability angle °		25
Brake type			Internal expanding
Transmission lubricant			GL-4
Transmission oil level L			1.5
package dimension mm(lenght×width×height)			1270X760X1000
