PT7B-220A 2015 New Design CE Apporoved Mini Crawler Dumper for Belarus
Mini dumper | |||
Model |
7B-220A |
||
Machine weight Kg |
156 |
||
Loading capacity Kg |
320 |
||
Dimension |
Lenght × width × height mm |
1620 × 600 × 830 |
|
Track length on the ground mm |
650 |
||
Track center distance mm |
410 |
||
Loading case bottom plate height mm |
295 |
||
Loading case |
Loading case internal dimensino |
Lenght mm |
850 |
width mm |
570 |
||
height mm |
290 |
||
Dump type |
manual |
||
Dump angle ° |
60 |
||
Engine |
Model |
WM168F/P |
|
Walking performance |
Travel speeds |
Forward 1 Km/h |
0.5 |
Forward 2 Km/h |
0.8 |
||
Forward 3 Km/h |
1.3 |
||
Forward 4 Km/h |
1.8 |
||
Forward 5 Km/h |
3 |
||
Forward 6 Km/h |
4.9 |
||
Reverse 1 Km/h |
0.6 |
||
Reverse 2 Km/h |
2.3 |
||
Minimum radius of gyration m |
1.15 |
||
climbing ability angle ° |
25 |
||
Brake type |
Internal expanding |
||
Transmission lubricant |
GL-4 |
||
Transmission oil level L |
1.5 |
||
package dimension mm(lenght×width×height) |
1270X760X1000 |
||
Easy Operation

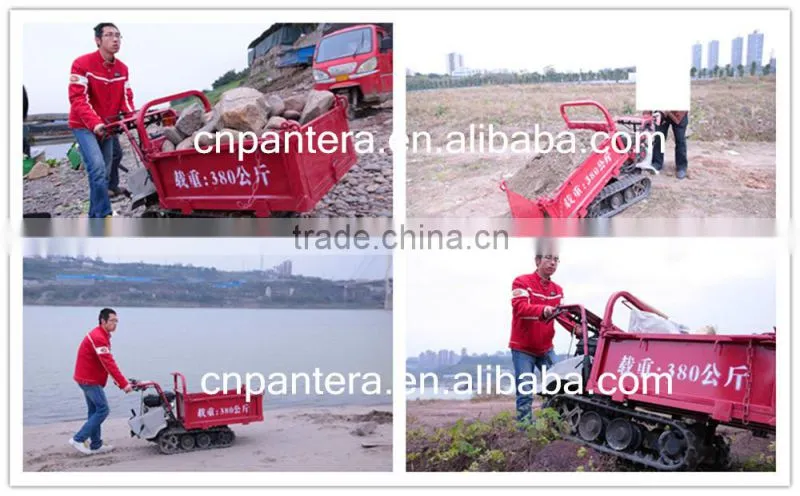

This is a mini sized crawler dumper for transporting crops, sand, and something that is too heavy or big to handle.
This kind of machine is simple to operate, and the controls give you a precise feel. The design provides both speed and economy of operation with excellent grade ability.
Multi- Function
Performance for Hard Work

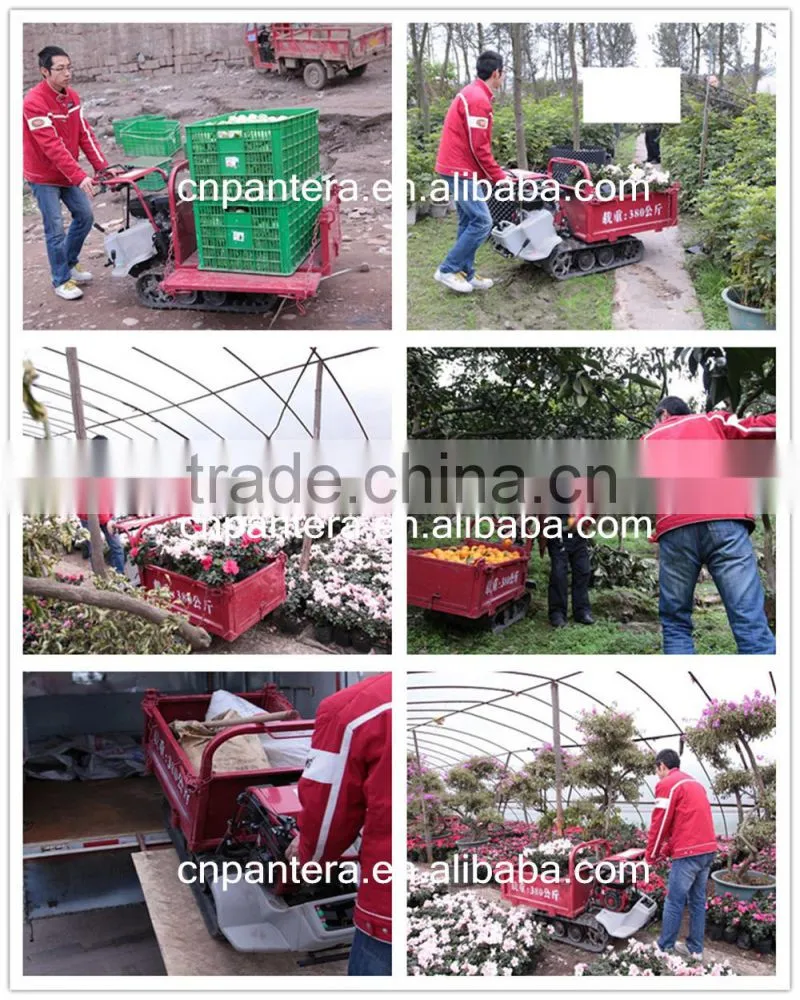

The sturdy purpose-built undercarriage is featured by rubber tracks and solid steel rocking rollers ensuring a smooth ride for the operator and minimum ground damage. In some restricted area like unpaved land, orchard farms, field, vineyards, hills, or a place where paths are narrow, a mini transporter is very useful resulting from its compact size and great loading capacity.
Strong power
Fitted with PT168F/P gasoline engine, the tracked power dumper can be used to transport all types of materials across sloping ground, around obstacles, and through narrow gateways.
More details
Safer use
Wheeled carriers struggle when ground becomes wet and boggy, but our mini transporters will not. They show excellent performance even on unpaved wetland or at construction site.
Direction changeable clutch on specially designed handles avoids personal injury to ensure operator safety.
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: Yes.,for this new model.we have sample in stock.
3. Q: What’s the delivery time?
A: It usually takes about 25~35 working days to produce an order from MOQ to 40HQ container. But the exact delivery time might be different for different orders or at different time.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. People always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it's packed for shipment.
5. Q:What's your warranty terms?
A: We offer different warranty time for different products. Please contact with us for detailed warranty terms
