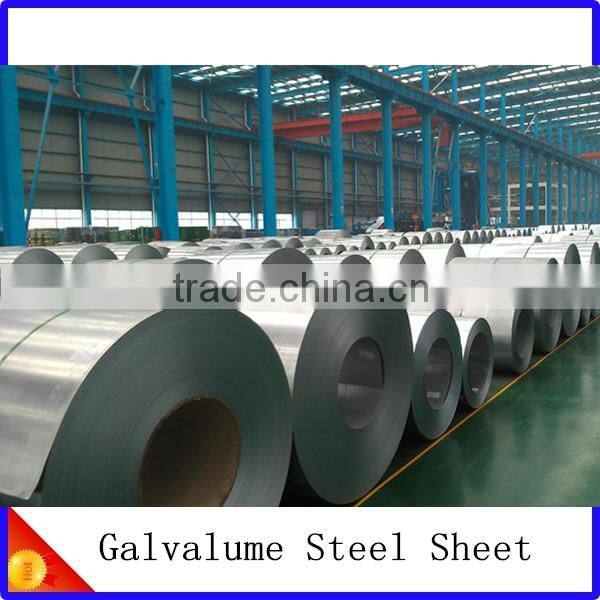

Good Quality -Galvalume Steel Sheet-GL

Zinc coated

40-80g( as customer required)

thickness

0.135-3.0mm

width

900-1250mm(914mm/1000mm/1200mm/1219mm the most common)

grade

DX51D ,SPCC

Spangle

Mini/zero spangle (as required)

Surface

Oiled/skin passed/chromated(as required)

Each coil weight

2-9tons (as required)

Payment

T/T ,L/C at sight,

Zinc coated

40-80g( as customer required)

colour

Ral standard (as required) [sea blue/white grey/bright red the most common]

thickness

0.135-0.8mm

width

900-1250mm(1000mm/1200mm the most common)

Paint type

PET..PU..EPOXY

Each coil weight

2-9tons (as required)

Payment

T/T ,L/C at sight

Standard

ASTM A792/ A 792M

JIS G3321

Base-Metal Thickness

0.26 - 1.0 mm

Width

900 - 1250 mm

Inside diameter

508(20’’), 610 mm(24’’)

T-bend

0T-3T

Yield strength

>300MPa

Coating mass

AZ25 - AZ150

Spraying brine

Min 200 hours

Surface Finish

Minimized Spangle

Surface Treatment

Chromated Treatment, Oiled or Resin Coated (anti Finger Print)

Standard

JIS G3312

Base-Metal Thickness

0.26- 1.0 mm

Width

900 - 1250 mm

Inside diameter

508(20’’), 610 mm(24’’)

T-bend

0T - 3T

Gloss

30-80%

Yield strength

>300MPa

Hardness

≥ 40 HRB

Adherence degree

No peeling

Top coating side

4+8/5+15/5+20 µm

Back coating side

5 -7 µm

Durability of solvent/thinner

MEK ≥ 100 DR

Coating mass

Z25 - Z150

High impact test

1800gx200mm (min) – No peeling

Guard film (optional)

30um/50um

Color

As per RAL Code or as per customer’s requirements
