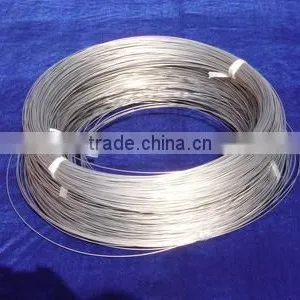

Help CenterHigh Quality Titanium Wire Solder Wire
Related Products
-
Titanium Welding WireUS$ 30 - 90MOQ: 5 Kilograms -
Gr1 Pure Titanium Wire In Coil Price Per KGUS$ 16 - 25MOQ: 50 Kilograms
-
Gr1 Titanium Wire 0.2mmUS$ 16 - 25MOQ: 50 Kilograms
-
Hot Sale Titanium Wire Gr1 PriceUS$ 16 - 25MOQ: 50 Kilograms
-
Gr2 Titanium Wire Shape Memory Alloy Wire Quality ChoiceUS$ 16 - 25MOQ: 50 Kilograms
| Product Name | Titanium wire | |
| Available Sizes | Diameter | MOQ |
| Dia0.8-Dia4.0 | min 5kg | |
| Titanium Grade | Gr1,Gr2,Gr4,Gr5,Gr7,Gr9,Gr12,Gr23 ,BT1-0,BT1-00, BT6,BT6C,BT8,BT14,BT20,BT3-1,PT3V, OT4-1,PT7M,2V |
|
| Standard | ASTM B863,ASTM F67,ASTM F136,AMS4921,AMS4930,GOST 27265-87 | |
| Diameter Tolerance | h7 h8 h9 | |
| Surface Quality | Polished /Acid washed | |
| Production Technology | Hot Rolled | |
| Supply Status | Annealed | |
chemical compositon
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti | |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.2 | 0.18 | / | / | / | / | / | bal |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | / | / | bal |
| Gr 3 | 0.05 | 0.08 | 0.015 | 0.3 | 0.35 | / | / | / | / | / | bal |
| Gr 4 | 0.05 | 0.08 | 0.015 | 0.5 | 0.4 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.4 | 0.2 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.3 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
mechanical property
| grade | Tensil strength(min) | Yeild strength(min) | Elongation(%) | ||
| ksi | MPa | ksi | MPa | ||
| 1 | 35 | 240 | 20 | 138 | 24 |
| 2 | 50 | 345 | 40 | 275 | 20 |
| 3 | 65 | 450 | 55 | 380 | 18 |
| 4 | 80 | 550 | 70 | 483 | 15 |
| 5 | 130 | 895 | 120 | 828 | 10 |
| 7 | 50 | 345 | 40 | 275 | 20 |
| 9 | 90 | 620 | 70 | 438 | 15 |
| 12 | 70 | 438 | 50 | 345 | 18 |
Titanium sponge→Crushing→Melting→Forging→Rod billet→Precision
Forging→Mechanical working→Titanium platebartubewire
PACKING
1. Wooden case, free of fumigating;
2. Steel pallet + wooden case (above 1 ton/case);
3. Available upon the client's request.
SHIPPING
1. Air express (FedEx, UPS, DHL & EMS);
2. Air transport;
3. Sea transport;
4. Sea-land transport.
1. OEM service, MOQ 1 piece acceptance
2. Satisfy your required material tests
3. Effectiveness: Enquiries and questions shall be solved with 24 hours
4. Expertise: Devoted to Nonferrous metals of titanium, nickel, zirconium pipe, fittings for years.
5. Facilities: The machines and tools are made for Ti, Ni, Zr pipe, fittings processing.
6. The authorized third party products approval
7. Fast manufacturing time, delivery
Zhangjiagang City Dongfu Titanium Metal Material Co., Ltd.
Zhangjiagang Channel Int'l Co., Ltd
Office: Dept. A, 5th Floor, Dashijie Plazaa, No. 426, Mid. of Jiyang Road, Yangshe Town-215600 Zhangjiagang City, Jiangsu Province, P.R. China
Plant: Donglai Village, Yangshe Town, Zhangjiagang city, China 215600
Tel: 0086-512-5638 2786, Fax: 0086-512-5817 6813
We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
If you have any interests, please don't hesitate to inquiry.
We welcome the sample order. Thank you.
