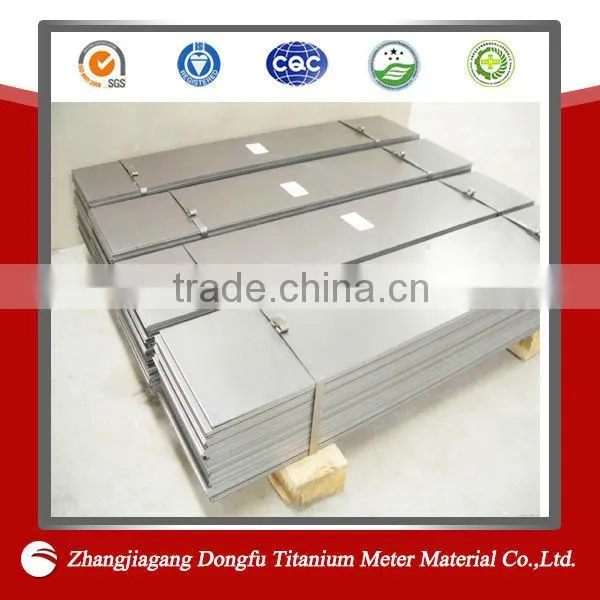

Help CenterGr5 6AL4V Titanium Sheet for Condenser Use
Related Products
-
ASTM B265 GR5 Hot Rolled Titanium Sheet/sheetsUS$ 30 - 60MOQ: 50 Kiloamperes -
Titanium Gr5 Astm B265 Plate Thickness 0.5mm-60mmUS$ 23 - 55MOQ: 20 Kilograms
-
China Manufacturer Titanium Sheet PriceUS$ 10 - 42MOQ: 50 Kilograms
-
3mm Titanium Plate/grade 4 Titanium PlateUS$ 50 - 80MOQ: 50 Kilograms
-
Best Price for Asme sb Gr2 Titanium PlateUS$ 20 - 35MOQ: 50 Kiloamperes
Size(mm):Cold Rolled(thinkness:0.3~4.0mm Width:400~1000mm Length:1000~3000)
Hot Rolled(thinkness:4.1~60.0mm Width:400~3000mm Length:1000~4000)
Standard:ASTM B265,AMS4911,ASTM F67,ASTM F136
Grade:GR1.GR2,GR3,GR5,GR7,GR9,GR12
Item name |
Titanium Plate /Titanium Sheet |
Standard |
ASTM B265, ASTM F67, ASTM F136, AMS 4902, AMS 4911 |
Material |
Gr1,Gr2,Gr3,Gr4,Gr5,Gr7, GR9, GR12, GR23 |
Size |
T 0.5-100 * W200-2000 * L800-6000 |
MOQ |
1KG |
Product Status |
Hot Rolling/Cold Rolling |
technology |
Forging ~ Rolling~ Annealing~ Shot blasting |
Package |
Wooden case & APP bags |
Application |
Aircraft /Shipbuilding / Automotive/ Architecture/Sports.etc |
Payment terms |
T/T, L/C, D/A, D/P, Escrow, Western Union, PayPal |
Leadtime |
Within 15 days |
Composition
Element |
Composition,% |
||||||||
Gr1 |
Gr2 |
Gr3 |
Gr4 |
Gr5 |
Gr7 |
Gr9 |
Gr11 |
Gr12 |
|
N max |
0.03 |
0.03 |
0.05 |
0.05 |
0.05 |
0.03 |
0.03 |
0.03 |
0.03 |
C max |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
0.08 |
H max |
0.05 |
0.015 |
0.015 |
0.015 |
0.015 |
0.015 |
0.015 |
0.015 |
0.015 |
Fe max |
0.2 |
0.3 |
0.3 |
0.5 |
0.4 |
0.5 |
0.25 |
0.2 |
0.3 |
O max |
0.18 |
0.25 |
0.35 |
0.4 |
0.2 |
0.25 |
0.15 |
0.18 |
0.25 |
Al |
|
|
|
|
5.5-6.75 |
|
2.5-3.5 |
|
|
V |
|
|
|
|
3.5-4.5 |
|
2.0-3.0 |
|
|
Pd |
|
|
|
|
|
0.12-0.25 |
|
|
|
PACKING
1. Wooden case, free of fumigating;
2. Steel pallet + wooden case (above 1 ton/case);
3. Available upon the client's request.
SHIPPING
1. Air express (FedEx, UPS, DHL & EMS);
2. Air transport;
3. Sea transport;
4. Sea-land transport.
1. OEM service, MOQ 1 piece acceptance
2. Satisfy your required material tests
3. Effectiveness: Enquiries and questions shall be solved with 24 hours
4. Expertise: Devoted to Nonferrous metals of titanium, nickel, zirconium pipe, fittings for years.
5. Facilities: The machines and tools are made for Ti, Ni, Zr pipe, fittings processing.
6. The authorized third party products approval
We need below information to quote for you:
1. Product Name
2. Standard
3. Material Grade (Chemical Composition)
4. Dimension
5. Quantity
6. The Drawing for Special Parts
If you have any interests, please don't hesitate to inquiry.
We welcome the sample order. Thank you.
