Home > Products > titanium sheet/plate > titanium coated sheet

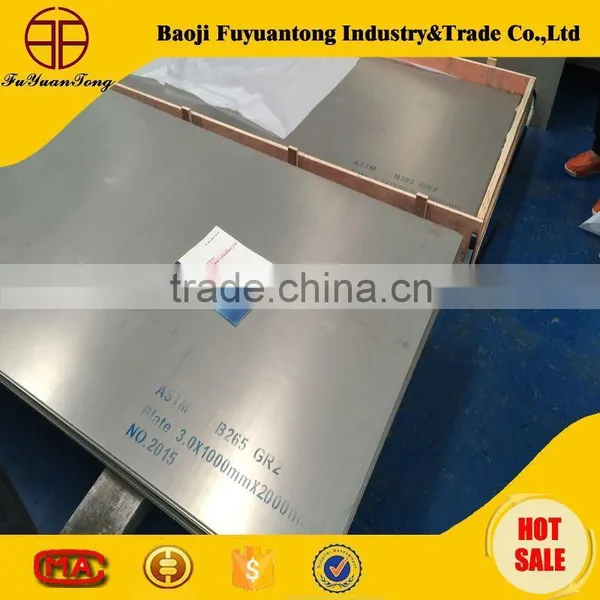

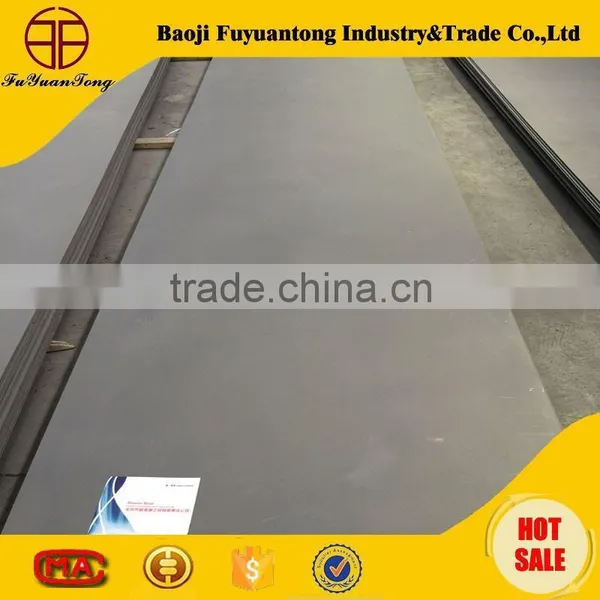

titanium coated sheet
- 100 Ton / Tons per Month
- Shanghai/Tianjing/Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
- 1.5mm Sintered Porous Titanium Plate Filtration Industry
- 0.2 Micron Porous Titanium Sheet for Filtration
- Pem Electrolyzers 0.3mm 0.5mm 0.8mm 1.0mm Diamond Hole Ni200 Metal Nickel Expanded Mesh
- Porous Titanium Sheet for Gas Diffusion Layer
- Titanium Plate With Flow Field For Electrolyzers
- A 10 Micron Ultra-long Microporous Metal Titanium Plate
Product Details
Place of Origin: | Shaanxi, China | Application: | industry | Thickness: | 0.3-60mm |
Width: | 100-2000mm, 1000~2000 | Length: | 1000-6000mm, 2000~6000 | ||
Ti (Min): | 99.9% | Brand Name: | FYT | ||
Model Number: | titanium coated sheet, titanium sheet cutting |
Product Description
Product Name | Titanium Plate / Titanium Sheet | |||
Standard | ASTM B265 | |||
Material | Gr1,Gr2,Gr5,Gr7,Gr9,Gr12 etc. | |||
Size(mm)
|
| Length | Width | Thickness |
Hot Rolling | 100-6000 | 50-4000 | 4-60 | |
Cold Roling | 100-4000 | 50-2000 | 0.3-4 | |
Surface Treatment | Polished | |||
Rolling Technology | Hot Rolling, Cold Rolling | |||
Payment Method | T/T, L/C, PayPal, Western Union | |||
Lead Time | 7-15 days | |||
Production Capacity | 100 Tons/month | |||
Feature |
| |||
Advantages |
| |||
Note | The chemical composition, size, and shape of the product can meet customers’ special requirements. |
| N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
Gr1 | 0.003 | 0.008 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
Gr2 | 0.003 | 0.008 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
Gr5 | 0.003 | 0.008 | 0.015 | 0.40 | 0.20 | 5.5-6.75 | 3.5-4.5 | / | / | / | bal |
Gr7 | 0.003 | 0.008 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / | bal |
Gr9 | 0.003 | 0.008 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / | bal |
Gr12 | 0.003 | 0.008 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 | bal |
Grade | Tensil Strength (min) | Yeild Strength (min) | Elongation (%) | ||
Ksi | MPa | Ksi | MPa | ||
1 | 35 | 240 | 20 | 138 | 24 |
2 | 50 | 345 | 40 | 275 | 20 |
5 | 130 | 895 | 120 | 828 | 10 |
7 | 50 | 345 | 40 | 275 | 20 |
9 | 90 | 620 | 70 | 438 | 15 |
12 | 70 | 438 | 50 | 345 | 18 |
hot sale titanium sheet made in china with good quality and best price. we are factory and have titanium sheets in stock.
