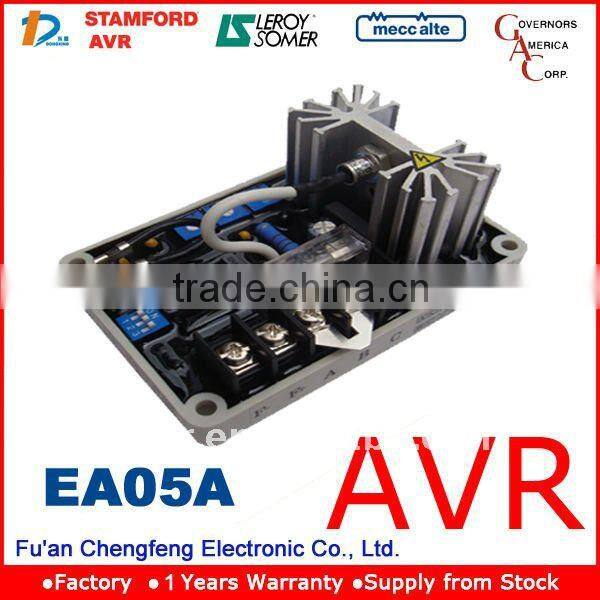

2015 Hotest Seller Spare Parts of Generator EA05A

Features
< ±0.5% Regulation
220/380/440 VAC Programmable Input
Rugged Compact Design
With Under Frequency Protection
Soft Start Voltage Ramping
EMI Suppression
Built-in High Capacity 5 Amp Fuse

Sensing  Input

   Voltage:220/380/440VAC , 1 phase 2 wire

   Frequency:50-60Hz nominal

   Voltage input:100-300VAC , 1 phase 2 wire

   output

   Voltage:max90VDC at 240VAC input

   Current:continuous 5A,intermittent 7A for 10 secs

   Resistance:12 Ω minimum , max 100Ω

   Regulation:+/-0.5% RMS with 4% engine governing

   Voltage build-up: residual voltage at avr terminal >5VAC

    External Voltage Adjustment:+/-7%  with 1k ohm 1 watt trimmer
