Help CenterGalvanized Steel Wire
Related Products
Specifications
Specification:Galvanized Wires for ACSR, agricultural purposes, fencing and suspension ropes

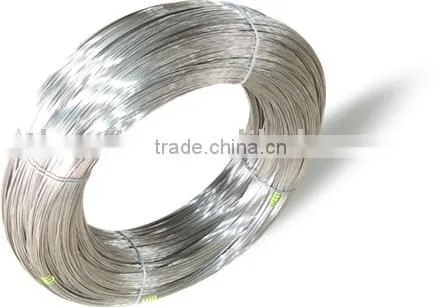

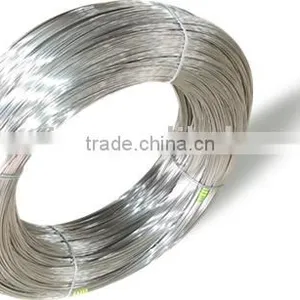

The Galvanized Steel Wire
High Carbon Spring Steel Wire Performance:
1.Diameter range:0.2-13mm
2.Main application:making spring,mattress,wire rope.
3.Standard:GB4357-89,DIN17223-84,JIS G 3521-91
Standard:DIN17223-84:
High Carbon Spring Steel Wire | |||
wire diameter(mm) |
Tensile Strength(N/mm² ) |
||
Grade A |
Grade B |
Grade C |
|
0.30 |
2370-2650 |
|
|
0.40 |
2270-2550 |
|
|
0.50 |
2200-2470 |
|
|
0.60 |
2140-2400 |
|
|
0.70 |
2090-2350 |
|
|
0.80 |
2050-2300 |
|
|
1.00 |
1720-1970 | 1980-2220 |
|
1.20 |
1670-1910 | 1920-2160 |
|
1.40 |
1620-1860 |
1870-2100 |
|
1.60 |
1590-1820 | 1830-2050 |
|
1.80 |
1500-1780 | 1790-2010 |
|
2.00 |
1520-1750 | 1760-1970 | 1980-2200 |
3.00 |
1410-1620 |
1630-1830 |
1840-2040 |
4.00 |
1320-1520 |
1530-1730 |
1740-1930 |
5.00 |
1260-1450 |
1460-1650 |
1660-1840 |
6.00 |
1210-1390 |
1400-1580 |
1590-1770 |
7.00 |
1160-1340 |
1350-1530 |
1540-1710 |
8.00 |
1120-1300 |
1310-1480 |
1490-1660 |
9.00 |
1090-1260 |
1270-1440 |
1450-1610 |
10.00 |
1060-1230 |
1240-1400 |
1410-1570 |
11.00 |
|
1210-1370 |
1380-1530 |
12.00 |
|
1180-1340 |
1350-1500 |
13.00 |
|
1160-1310 |
1320-1470 |
Standard:JIS G 3521-91:
Standard:GB4357-89:
High Carbon Steel Wire | |||
wire diameter(mm) |
Tensile Strength(N/mm² ) |
||
Grade B |
Grade C |
Grade D |
|
0.20 |
2150-2550 |
2400-2790 |
2690-3090 |
0.25 |
2060-2450 |
2300-2700 |
2640-3040 |
0.30 |
2010-2400 |
2300-2700 |
2640-3040 |
0.40 |
1910-2300 |
2250-2650 |
2600-2990 |
0.50 |
1860-2260 |
2200-2600 |
2550-2940 |
0.60 |
1760-2160 |
2110-2550 |
2450-2840 |
0.70 |
1710-2110 |
2060-2450 |
2450-2840 |
0.80 |
1710-2060 |
2010-2400 |
2400-2840 |
1.00 |
1600-2010 |
1960-2300 |
2300-2690 |
1.20 |
1620-1910 |
1910-2250 |
2250-2550 |
1.40 |
1620-1910 |
1860-2110 |
2150-2450 |
1.60 |
1570-1860 |
1810-2160 |
2110-2400 |
1.80 |
1520-1810 |
1760-2110 |
2010-2300 |
2.00 |
1470-1760 |
1710-2010 |
1910-2200 |
2.20 |
1420-1710 |
1660-1960 |
1810-2110 |
3.00 |
1370-1670 |
1570-1860 |
1710-1960 |
4.00 |
1320-1570 |
1520-1760 |
1620-1860 |
5.00 |
1320-1570 |
1470-1710 |
1570-1810 |
6.00 |
1220-1470 |
1420-1660 |
1520-1760 |
7.00 |
1170-1420 |
1370-1570 |
|
8.00 |
1170-1420 |
1370-1570 |
|
9.00 |
1130-1320 |
1320-1520 |
|
10.00 |
1130-1320 |
1320-1520 |
|
11.00 |
1080-1270 |
1270-1470 |
|
12.00 |
1080-1270 |
1270-1470 |
|
13.00 |
1030-1220 |
1220-1420 |
|
Loading Capacity:
20" container:loading 20-25 Ton.
