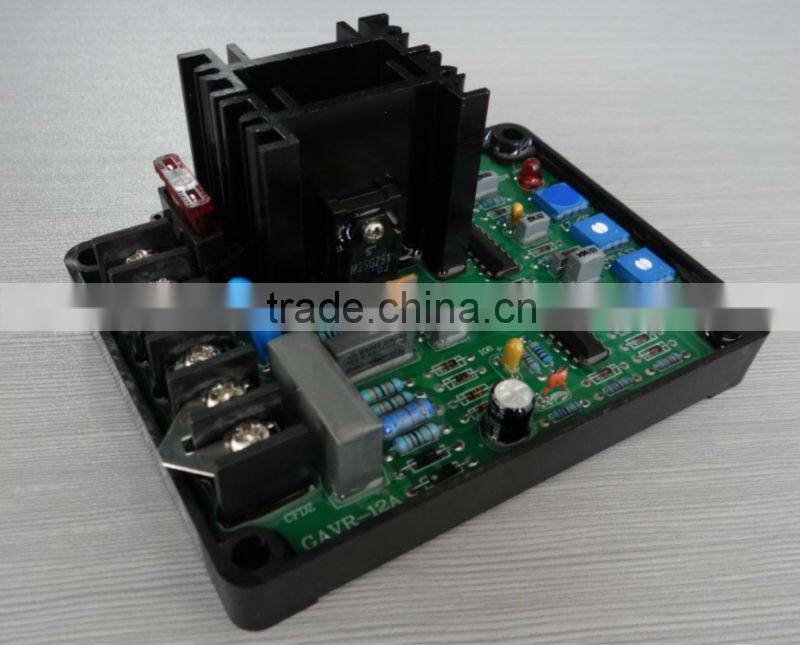

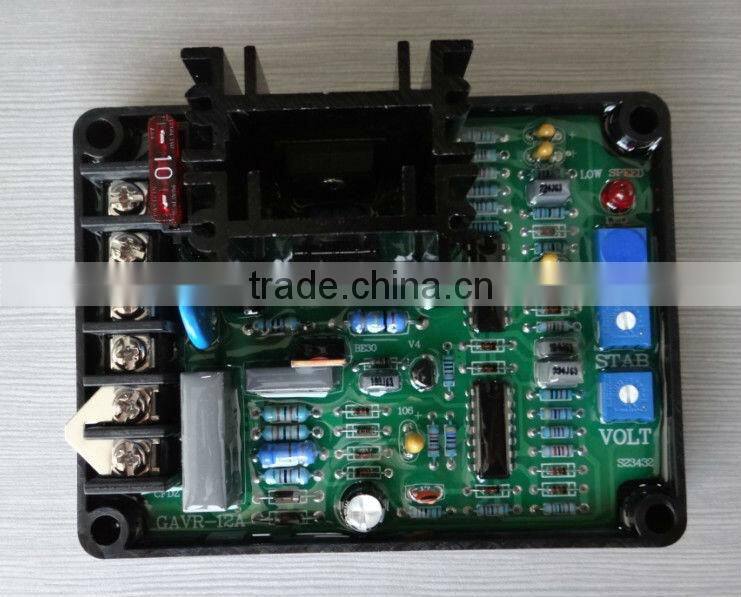

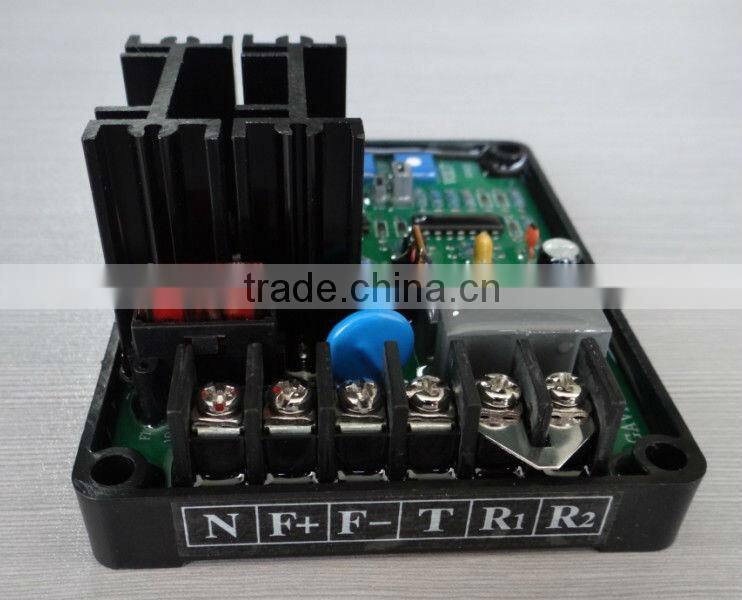

AC generator GAVR-12A AVR:
GAVR-12A=CF-12A : applicable to Brushless Generator
CF series AVR is named by our company name “ChengFeng”. So we are the leader of CF AVR.
Good quality & high range spare parts make superior products.
Trust + Professional + Speed
Technical parameter:
| Sensing input Voltage | 180-260VAC , 1 phase 2 wire |
| Power Input voltage | 180-260VAC , 1 phase 2 wire |
| Output voltage | max 90 VDC at 240VAC input |
| Current | Continuous 4A , intermittent 7A for 10secs |
| Resistance | Min.12 ohm , Max 100ohm |
| Voltage Build-up | residual voltage at avr terminal >5VAC |
| Voltage Regulation | <±0.5% with 4% engine governing |
| Operating Temperature | (-40°C to +65°C |
| Storage Temperatue | (-40°C to +85°C |
| External Volts Adjutment | ±7% with 1k ohm 1 watt trimmer |
| EMI Suppression | Internal electromagnetic interference filtering |
| Unit Power Dissipation | Max.8 watt |
| Under Frequency Protection | 60Hz system presets knee point at 55Hz |
| 50Hz system presets knee point at 45Hz | |
| Dimensions | 121.0mmL*92mmW*60mmH |
Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
Skype: cfavrcalling Tel: 0086 13515069913
Welcome to visit our website.
