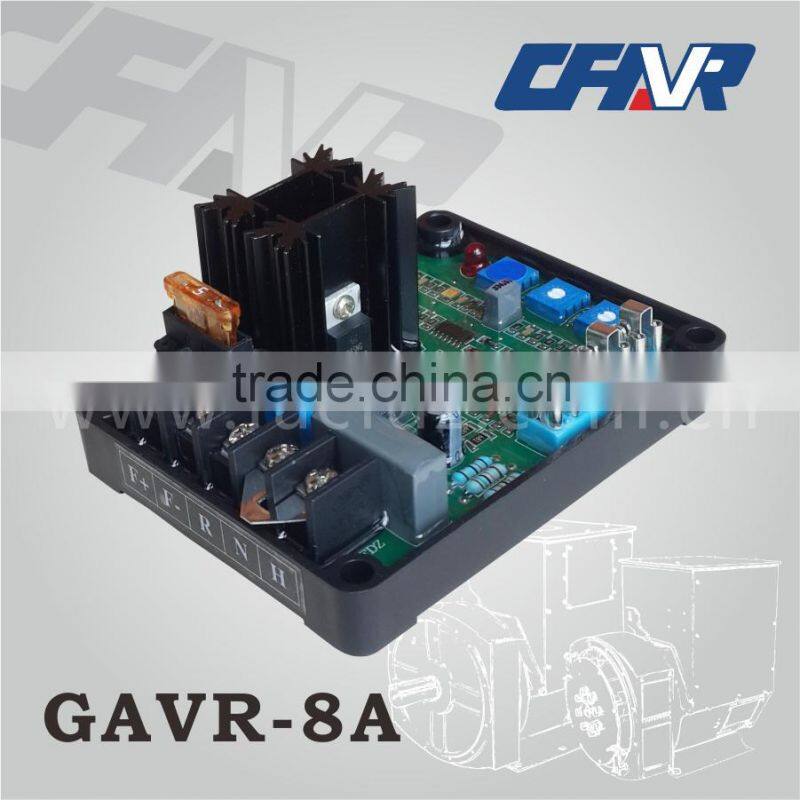

GAVR-8A Alternator avr controller
GAVR-8A = CF-8A: applicable to Brushless Generator.
CF series AVR is named by our company name “ChengFeng”. So we are the leader of CF AVR.
Good quality & high range spare parts make superior products.
Trust + Professional + Speed
Technical parameter:
1.GAVR 8A Automatic Voltage Regulator
2.Generator automatic voltage regulator
3.High quality, Fast delivery
GAVR 8A
*SensingInput Voltage 220/400VAC,1phase 2wire
*Power Input Voltage 180~240VAC, 1phase 2wire
*Output Voltage input
Current Continuous 6A
Intermittent 6A for 10SEE
Resistance Min.10Ω Max 100Ω
*Voltage Build-up esidualvolts at AVR teminal>5VAC
*External Volts Adjustment +/-7%with 1KΩ 1watt trimmer
*Unit Power Dissipation Max.8Watt
*Under Frequency Protection 60Hz system presets knee point at 57Hz
*(Factory Settings) 50Hz system presets knee point at 47Hz
We can supply the following products:
Automatic voltage regulators for generators
GAVR8A
GAVR12A
GAVR15B
general avr
MARATHON AVR ,SE350
Leroy Somer,R230,R438,R448,R449
Voltage regulator SX440,SX460, AS440
| Input | Sensing Voltage | 220/400VAC,1phase 2wire |
| Power Voltage | 180~240VAC, 1phase 2wire | |
| Voltage Jumper selectable | 95-132V ac or 190-264 Hz Nominal | |
| Frequency | 50-60 Hz nominal | |
| Output | Voltage max | 90V dc at 207V ac input |
| Current continuous | 2A dc | |
| Current intermittent | 5A for 10 secs | |
| Resistance | 20 ohms minimum | |
| Voltage Build-up | Esidualvolts at AVR teminal>5VAC | |
| External volts adjustment | +/-7%with 1KΩ 1watt trimmer | |
| Unit Power Dissipation | Max.8Watt | |
| Under Frequency Protection | 60Hz system presets knee point at 57Hz | |
| Factory Settings | 50Hz system presets knee point at 47Hz | |
| Body size | 15.7*11.5*6cm | |
Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
