AC input 50 or 60HZ single phase diesel generator AVR AVC63-7 for voltage regualtor
- 3000 Piece / Pieces per Month
- Fuzhou / Xiamen
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Fujian, China | Brand Name | Chengfeng | |
| Model Number | AVC63-7 | Usage | Other, Other, Regulating Voltage for Generator | |
| Phase | Single Phase | Current Type | AC |
Product Description
AC input 50 or 60HZ single phase diesel generator AVR AVC63-7 for voltage regualtor :
Specifications:
1.Basler AVR AVC63-7
2.Nice price
3.Provide other models of AVR

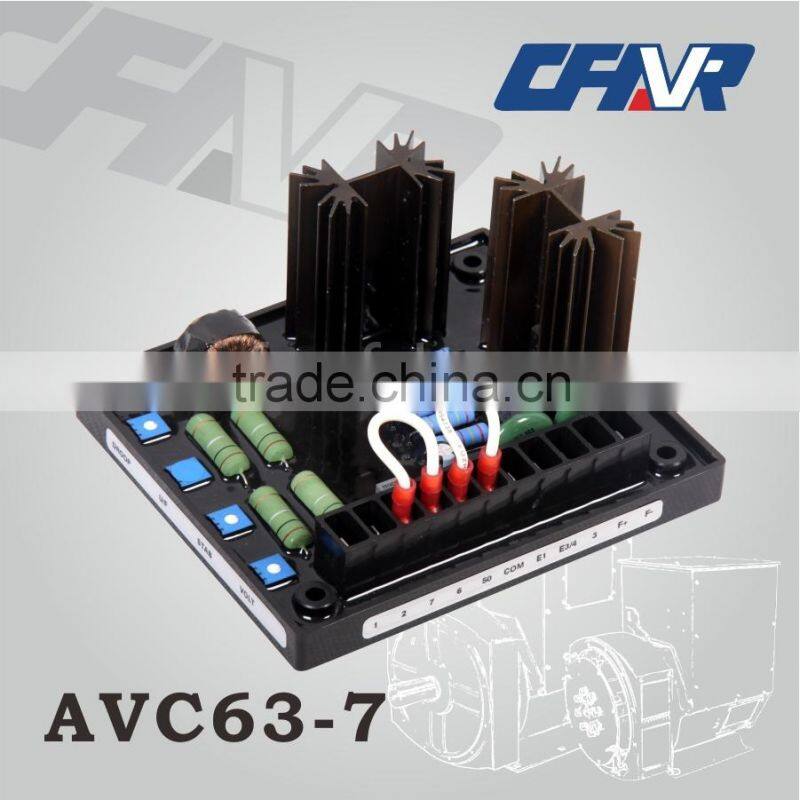

Basler AVR AVC63-7
| Basler Brushless AVR | AVC63-7 |
| Sensing voltage | 220(170-264)VAC / 400(380-480)VAC 1 phase 2 wire |
| Frequency | 50-60Hz nominal |
| Voltage input | 170-305VAC single phase |
| Power output voltage | max 63VDC at 207VAC input |
| Current | continuous 7A , intermittent 10A for 10 secs |
| Regulation | +/-1% RMS with 4% engine governing |
| Voltage buil-up | residual voltage at avr terminal >5VAC |
| External Voltage Adjustment | +/-8% with 1k ohm 1 watt trimmer |
| Type | brushless |
| Compatible | Basler |
| Generator Power | 64-500kw |

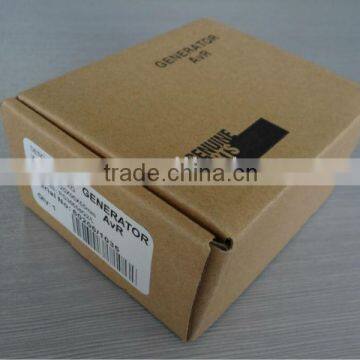

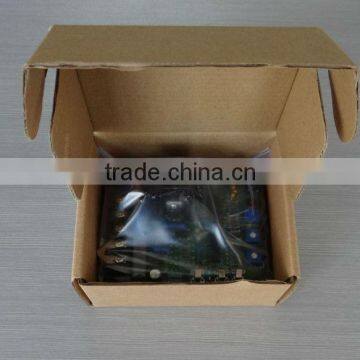

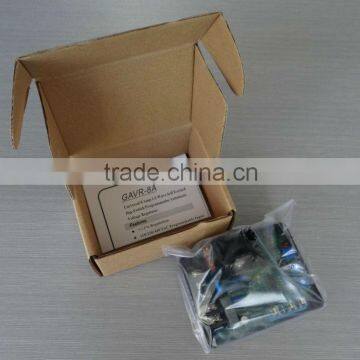

Packaging: Standard Carton Packing
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
