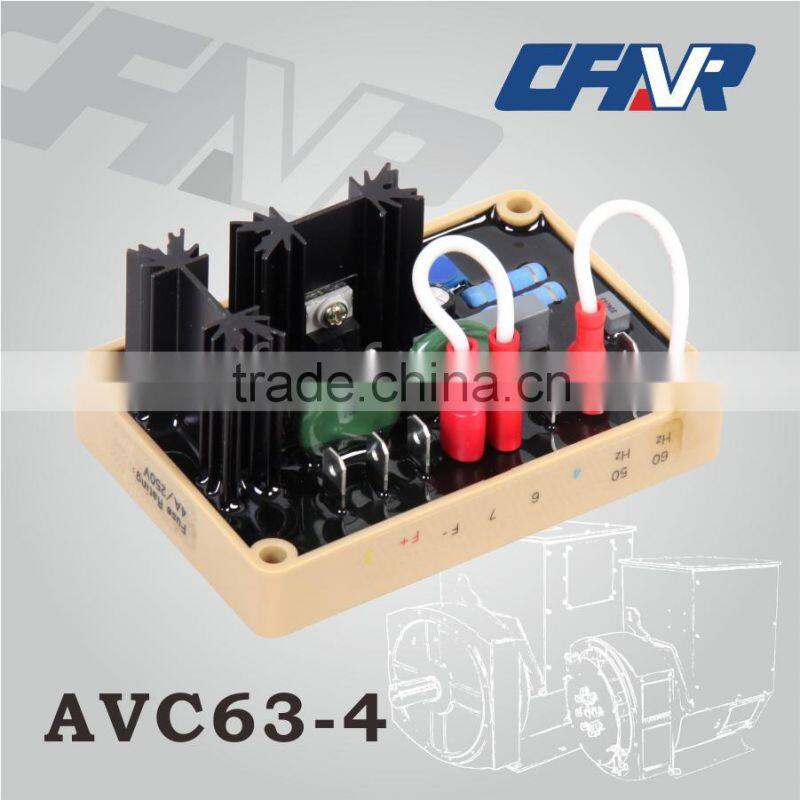

2015 Hotest AVC63-4 AVR for Generator :
Features:
1.Basler avr AVC63-4 Automatic Voltage Regulator
2.Excellent products with the most competitive price and best service.
Technical data:
Voltage
| 190-240VAC |
Frequency
| 50/60Hz,Jumper selectable |
Voltage
| Max 73VDC@220VAC input |
Current
| Continuous 3.5A , intermittent 7A for 10 secs(52/105VDC) |
Resistance
| Min.15 ohm , Max 100ohm |
Voltage Build-up
| residual voltage at avr terminal >5VAC |
Voltage Regulation
| <±1% WITH 4% engine governing |
Operating Temperature
| (-40°C to +60°C |
Storage Temperatue
| (-65°C to +85°C |
External Volts Adjutment
| ±10% with 2k ohm 1 watt trimmer |
EMI Suppression
| Internal electromagnetic interference filtering |
Unit Power Dissipation
| Max.8 watt |
Under Frequency Protection
| 60Hz system presets knee point at 54-61Hz |
Power
| 50Hz system presets knee point at 45-51Hz |
Dimensions
| 10x6.7x4.8cm |
Weight
| 0.25kg |
Photo:
Why to choose us ?
1.Founded in 2005,with full experience of 10 years in manufacturing generator spare parts.
2.Started export since the year of 2008,with quick response to serve the oversea customers
3.Have already passed the strict quality inspection of ISO9001:2000 quality management system
4.Strong R&D Team to design and test products
5.Professional designers and technicians to provide technical assitance
6.Strict quality control process with strict standards
7.Strong installation consulting support
8.Quick after-sale technical advice and guidance
Our factory
Payment Terms
Payment Terms:
1.We accept West Union, T/T, MoneyGram, L/C,D/P,D/A, Escrow, Cash.
2.All major Credit cards are accepted through secure payment processor ESCROW.
Shipment Terms:
1. We Ship to Worldwide, except APO/FPO
2. Orders processed timely after showing bank transfer.
3. We only ship to confirmed order addresses. Your order address MUST MATCH your address.
