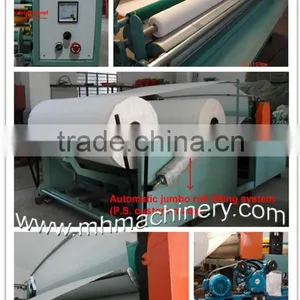

MH-1092 / MH-1575 Semi-automatic Slitting and Rewinding Machine
Structure and Character
1. This machine is used to slit jumbo roll to different width of paper roll.
2. The suitable material can be tissue roll, non-woven fabric, airlaid paper and so on.
3. The finished paper roll can be used in napkin tissue machine, facial tissue machine and sanitary napkin machine and so on.
4. Belt drive, web tension control device and pneumatic rewinding shaft.
5. It can be equipped with automatically load jumbo roll unit according to customers demand.
Technical Parameter
Power supply: 380V 50HZ
Installation capacity: 2.2 KW
Designed production speed: 150m/min
Stable production speed: 100-120m/min
Product dimension: adjustable
Minimum slitting width: 60mm
Jumbo roll dimension: Ø1200×1200mm, Ø1200×1800mm (Dia.×Width)
Base weight: 16-60g/
Layer: 1-3ply
Waster percent: ≤2%
Machine dimension: 4.5×2.4×1.5m (L×W×H)
Weight: 1.0T
