Diesel Engine Water Pump Set

Name: Diesel Engine Water Pump Set
Brand: SCGC
SKU: 124615885
Availability: InStock

Diesel Engine Water Pump Set thumbnail-1

Diesel Engine Water Pump Set thumbnail-2

Diesel Engine Water Pump Set thumbnail-3

Diesel Engine Water Pump Set thumbnail-4

Diesel Engine Water Pump Set thumbnail-5

Diesel Engine Water Pump Set thumbnail-6

US$ 9,000 - 15,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Place of Origin:

China

Brand Name:

SCGC

Model Number:

ZCSB15/200F

Contact Supplier Request Quote Chat Now

Shanghai CIMC Generating Set Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

SHANGHAI

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin China

Brand Name SCGC

Model Number ZCSB15/200F

Theory Vacuum Pump

Structure Single-stage Pump

Usage Water

Power Other

Fuel Diesel

Pressure Low Pressure

Application Other

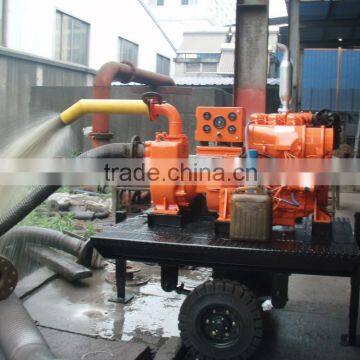

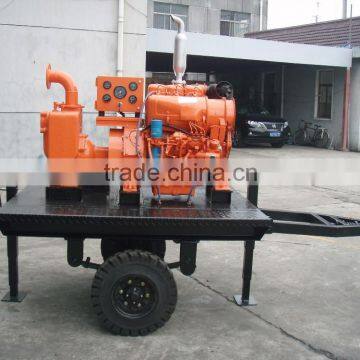

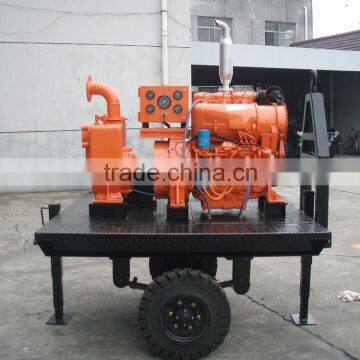

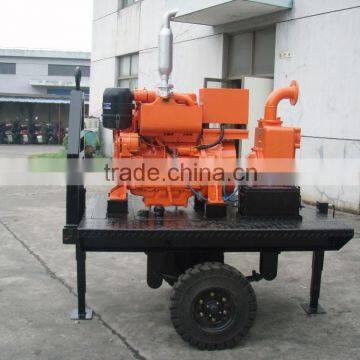

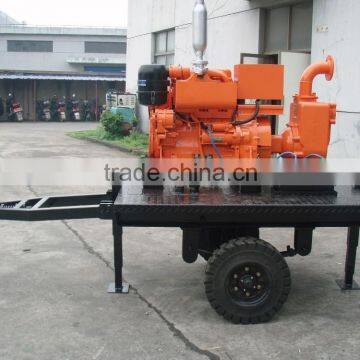

The air-cooled diesel engine drive self priming water pump set

The air-cooled diesel engine drive self priming water pump set is a new type designed by ourselves. It is driven by the air-cooled diesel engine through flexible coupling, has the advantages of neoteric construction, high efficiency, good anti-cavitation characteristic, small vibration, low noises, reposeful and reliable operation, convenient installation and uninstallation, etc.

Mainly used in fire fighting systems, water works, architectural water supply, irrigations, drainage pump stations, industrial water supply systems, shipping industries, mine drainage and petrochemical, metallurgical industries etc liquid transporting occasions.

Pump set model	ZCSB15/100F	ZCSB20/80F	ZCSB20/100F	ZCSB20/120F	ZCSB30/180F	ZCSB15/200F
Rated capacity ( m3/h)	100	80	100	120	180	200
Rated head (m)	15	20	20	20	30	15
Rated speed (r/min)	1500-1800 r/min
Inlet diameter (mm)	100	100	100	125	150	150
Outlet diameter (mm)	75	75	75	100	125	125
Engine model	F2L912	F2L912	F2L912	F2L912	F4L912	F3L912
Engine rated output (kW)	17	17	17	17	38	28
Self priming pump model	ZW100-100-15	ZW100-80-20	ZW100-100-20	ZW125-120-20	ZW150-180-30	ZW150-200-15
Trailer truck type	Two tires	Two tires	Two tires	Two tires	Two tires	Two tires
control unit	Lubricating oil pressure gauge,temperature gauge ,Tachometer ,Hour meter ,Charging ammeter “START/STOP”switch
Auxiliary systems	maintenance-free battery
Auxiliary systems	LA high flexible coupling
Trailer truck	a completely welded steel structural chassis
	150L-250L fuel tank in the chassis with fuel gauge for 12 hours running
	Inside mounted Exhaust muffler and pipe
	Two or four solid type rubber tires
	two mechanical supports
	mechanical redirector for four tires trailer truck
Pump set type (option)	Open type,trailer type,weatherproof type,soundproof type

We are looking for sales and after-sales agents worldwide for these products.

Pump set model	ZCSB25/200F	ZCSB14/280F	ZCSB18/300F	ZCSB28/280F	ZCSB20/420F	ZCSB14/800F
Rated capacity ( m3/h)	200	280	300	280	420	800
Rated head (m)	25	14	18	28	20	14
Rated speed (r/min)	1500-1800 r/min
Inlet diameter (mm)	150	200	200	200	200	250
Outlet diameter (mm)	125	150	150	150	150	200
Engine model	F4L912	F2L912	F4L912	F6L912	F6L912	F6L913
Engine rated output (kW)	38	28	38	60	60	65
Self priming pump model	ZW150-200-25	ZW200-280-14	ZW200-300-18	ZW200-280-28	ZW250-420-20	ZW300-800-14
Trailer truck type	Two tires	Two tires	Two tires	Four tires	four tires	four tires
control unit	Lubricating oil pressure gauge,temperature gauge ,Tachometer ,Hour meter ,Charging ammeter “START/STOP”switch
Auxiliary systems	maintenance-free battery
Auxiliary systems	LA high flexible coupling
Trailer truck	a completely welded steel structural chassis
	150L-250L fuel tank in the chassis with fuel gauge for 12 hours running
	Inside mounted Exhaust muffler and pipe
	Two or four solid type rubber tires
	two mechanical supports
	mechanical redirector for four tires trailer truck
Pump set type (option)	Open type,trailer type,weatherproof type,soundproof type
