Alarm Threshold Setting Switch Output Tilt Control Tool Dual Axis

1pcs/box ,100pcs/ctn

Specifications

Switch Output Tilt Control
1. High performance
2. alarm function
3. Stable & reliable
4. Customized

Alarm Threshold Setting Switch Output Tilt Control Tool Dual Axis

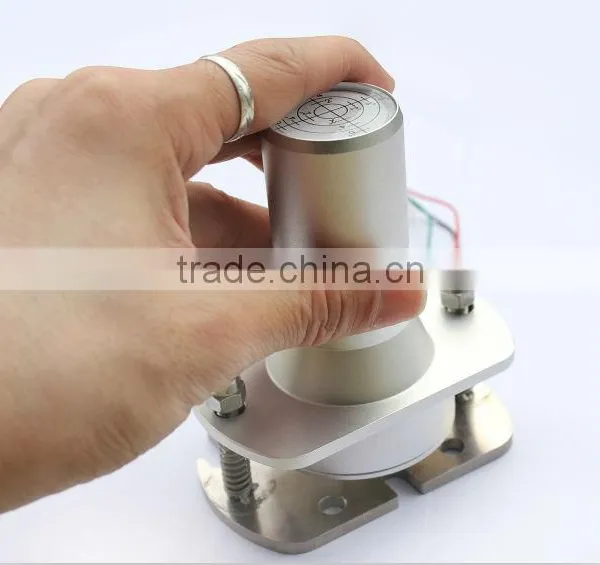

SCA161A is a human nature hand-operated tilt switch which developed by Rion Company to the engineering machinery & special vehicles fields, when the device platform level exceeds the initial set alarm angle(the user can set the alarm value by himself), the instrument will output a relay signal(drive current 1A), open the electronic valve to control the corresponding circuits, and the LED light of the tilt switch can flashing alarm to remind. The product also integrated the humane nature hand-operated alarm function, the operator can shake the tilt switch by his hand before the equipment running, it also will drive the LED light of the tilt switch for flashing alarm to warn the operator that the instrument in normal working status, double insurance to further reduce the accident caused by the equipment failure .

This product with precision design, again to compensate the temperature and linearity, integrated short-circuit, high-voltage transient, polarity and surge etc. full protection functions, suitable for a variety of harsh industrial environments operating.

Features:

• Dual-axis with 4 directions tilt measurement
• Measuring range ±1~±90° optional
• Resolution : 0.01°
• Switch output(High and low-level)
• Wide temperature working :-40~+85°C
• Hand-operated alarm function
• IP67 protection class
• Highly anti-vibration performance>2000g
• Direct lead cable interface
• Customer can set alarm angle value by himself
• With Setting relative 0° function
• Positive/negative direction output is optional
• Size:150×88×88mm
• DC 9~36V wide voltage input
• RS232 computer connection

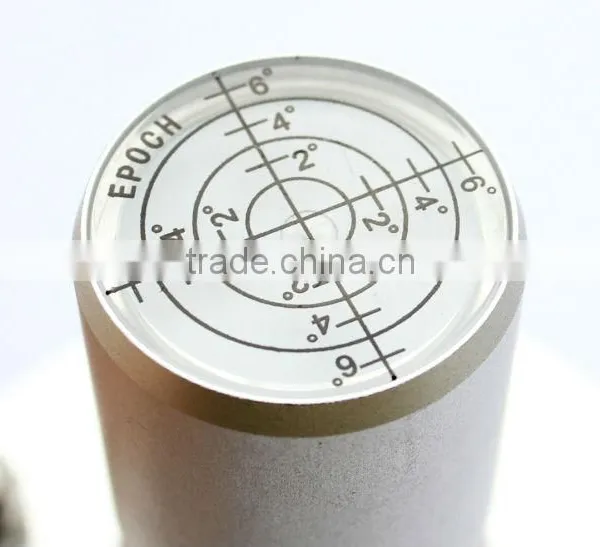

• The upper level bubble horizontal installation reference
• LED warming function
• Switch output can customized

Product Show

Ordering information:

Dimension

Measuring Directions&Fix

Technical Data
