HCA131A High Precision 4-way Tilt Switch / Tilt Sensor for Warming System Switch output With Alarm Value

1pcs/box with sponge , 100pcs/ctn

Specifications

Tilt switch
1.Dual-axis with 4-Axis level control
2.RS232 series output
3.Resolution : 0.001deg
4.IP67 protection class

HCA131A High Precision 4-way Tilt Switch / Tilt Sensor for Warming System Switch output With Alarm Value





General Description

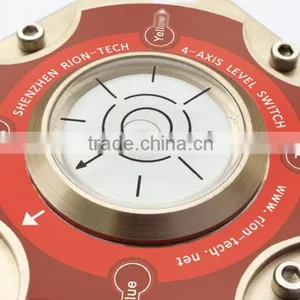

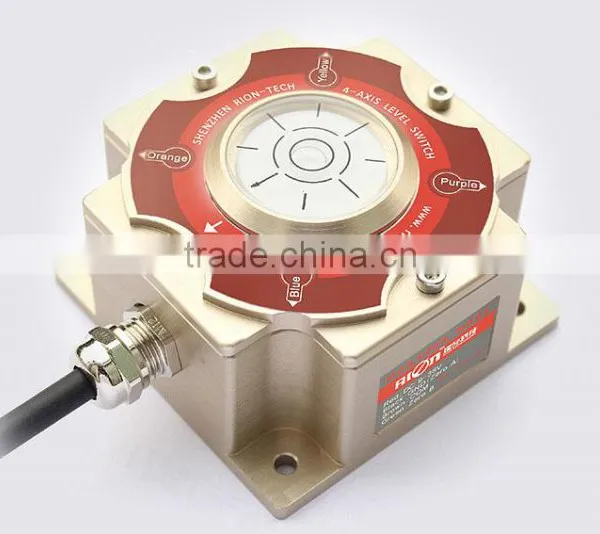

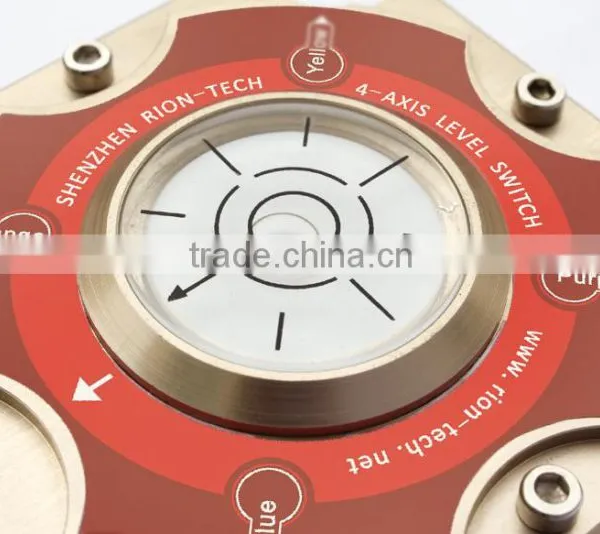

HCA131A is a full temperature high accuracy 4-Axis level control tilt switch which developed by RION company, the appearance design integrated high precision level bubble, professional application in level security alarm and platform leveling testing related industry, the switch using the transistor output circuit. Theuser can set the alarm angle valve value by himself, and may refer to high precision level bubble set factory measurement datum, solve the problem on without reference standard calibration after the equipment out of factory, the sensor will output switch signal(output voltage = power supply voltage) when it detect exceed the security angle value, drive electromagneticvalve shut off the hydraulic system, also can drive buzzer and alarm lamp, automatically warning the operatorfor safety construction. This product is mainly used for control various kinds of engineering machinery or equipment platform level, real-time automatic monitoring platform infront, back,left and right four directions tilt status . This product with design precision, again to compensate the temperature and linearity, integrated short-circuit, high-voltage transient, polarity and surge etc. full protection functions, suitable for a variety of harsh industrial environments operating. Using the industrial grade MCU, three-anti PCB, import cable, wide temperature metal enclosure and other measures etc. to improve the industry level on products reliability and stability.



Features:

• Dual-axis with 4-Axis level control
• Accuracy:please refer to the technical data
• RS232 series output
• Switch output(high-low level)
• Resolution : 0.001°
• Wide temperature working: -40~+85°C
• IP67 protection class
• Highly anti-vibration performance>2000g

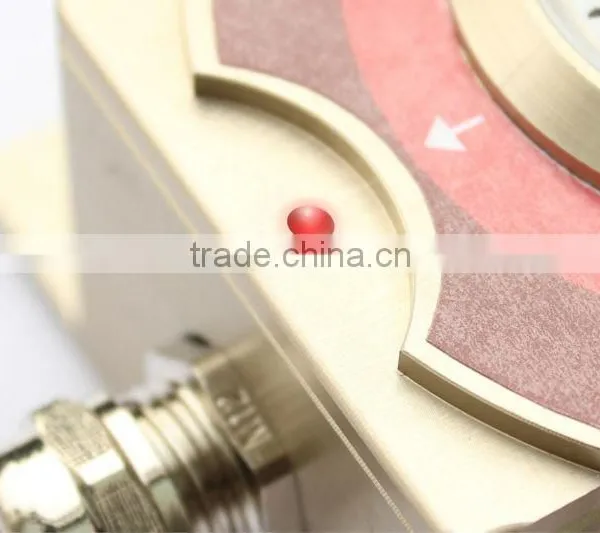

• Power light hint
• Customer can set alarm angle value by himself
• Can refer to the level bubble Setting 0° function
• Positive/negative direction output is optional
• DC 9~36V wide voltage input
• Air-plug or direct lead cable optional (Default direct Lead cable 1M)



Application:

• Engineering mechanical vehicles
• Rail-mobile monitoring
• Various engineering mechanical measurement of dip angle oil-well drilling equipment
• Radar detection of vehicle platform
• Underground drill posture navigation
• Gun Barrel angle measurement in early shooting
• Based on the angle direction measurement
• Satellite communications vehicle posture detection
• Shield pipe jacking application
• Ship’s navigation posture measurement
• Geological equipment inclined monitoring
• The intelligent excavator / crane / cranes / pile driver / drill machine / special vehicles / mine car / track car / fire truck / aerial vehicles / bridge machine

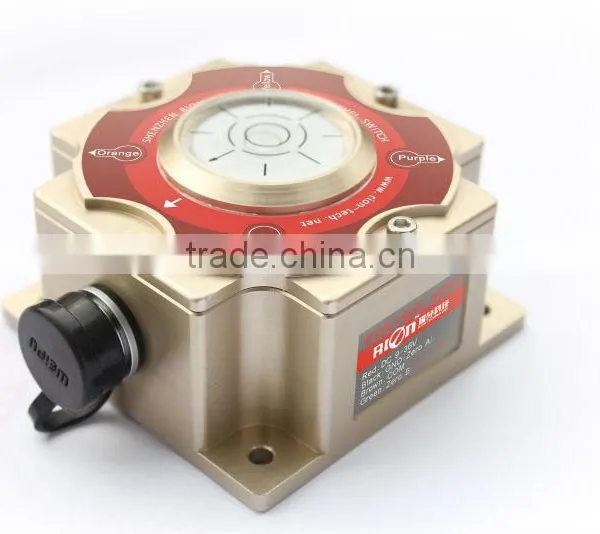

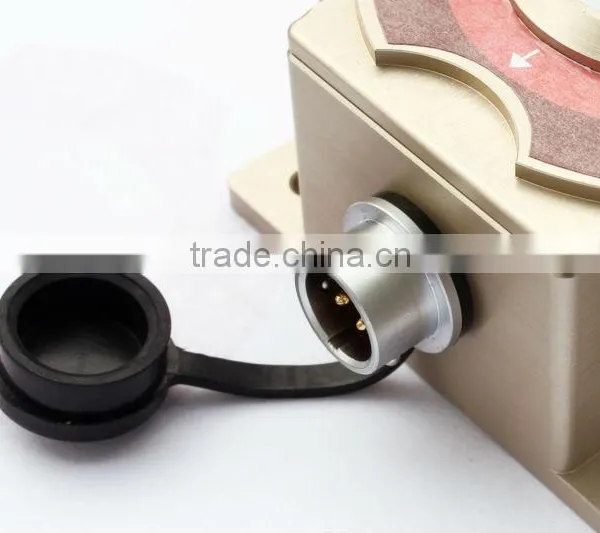

 Connector A : air-plug(Male & Female connector type )       Connector B: Lead cable type (pig tail calbe type)



Note : A  Type connector can be plug-in or plug -out ,

           B Type connector can not  be plug-in or plug-out .













We can offer :

•  Reliable high quality products and services
•  Perfect whole system application solution
•  Strong technical support before or after sales service
•  Extend strong sales teams & distributors global
•  OEM products as buyer's requests
